RCMX1204MO CA5525 (10pcs)
RCMX1003MO CA5525 (10pcs)
Kyocera RCMX Round Carbide Inserts — Heavy-Duty Stainless Steel Milling
Kyocera RCMX round inserts provide up to 16 cutting edges per insert — the maximum edge count of any standard turning/milling geometry — making them the most economical choice for heavy-duty face milling, copy milling, and high-feed profiling on stainless steel and tough alloys. The full round geometry provides 360° cutting edge with no weak corner.
This catalog covers 2 Kyocera RCMX SKUs in IC 10 mm (RCMX1003) and IC 12 mm (RCMX1204) sizes — both with MO chipbreaker and CA5525 CVD stainless grade. Ideal for high-feed milling of stainless 304/316, duplex, and high-temperature alloys.
Browse the full Kyocera RC/RP/RD round insert catalog, or jump to: About · Featured SKUs · Applications · FAQ.
rc-rp-rd-round-kyocera indicating RC + RP + RD round inserts. Only RCMX is currently stocked (2 SKUs). RPMT (RP-style) and RDMT (RD-style) Kyocera round inserts are not currently in stock — for related round tooling, see our Kyocera Positive Turning Family catalog.
About Kyocera RCMX Round Inserts
The RCMX round insert is the heaviest-duty round geometry in standard ISO turning/milling tooling. With a full 360° cutting edge and no corners, RCMX provides:
- Maximum cutting edges — up to 16 usable cutting edges per insert (more than any other geometry)
- 360° profile capability — full circular edge for copy milling and profile work
- Strongest edge strength — no corner means no weak point; handles interrupted cuts and forging-skin surfaces
- High feed rates — round geometry distributes cutting forces, allowing higher feed than square/rectangular inserts
- Long tool life — multiple edges + wear-resistant grade = maximum economy per index
RCMX is part of Kyocera's round insert family:
- RCMX — Round with hole + molded chipbreaker. Heavy-duty for face and copy milling. (2 SKUs in stock)
- RCMT — Round with hole + molded chipbreaker (M-class tolerance). Common in turning.
- RPMG / RPMT — Round positive (without hole) for profile milling
- RDMX / RDMT — Round (different IC sizes) for special applications
Kyocera Corporation (Kyoto, Japan) supplies RCMX inserts with the CA5525 grade — a CVD M-K-grade optimized for stainless steel and tough alloys with thick TiCN/Al₂O₃ coating layers.
Featured Kyocera RCMX Round Inserts
Both Kyocera RCMX SKUs currently in stock, covering the two standard IC sizes for stainless steel heavy-duty milling.

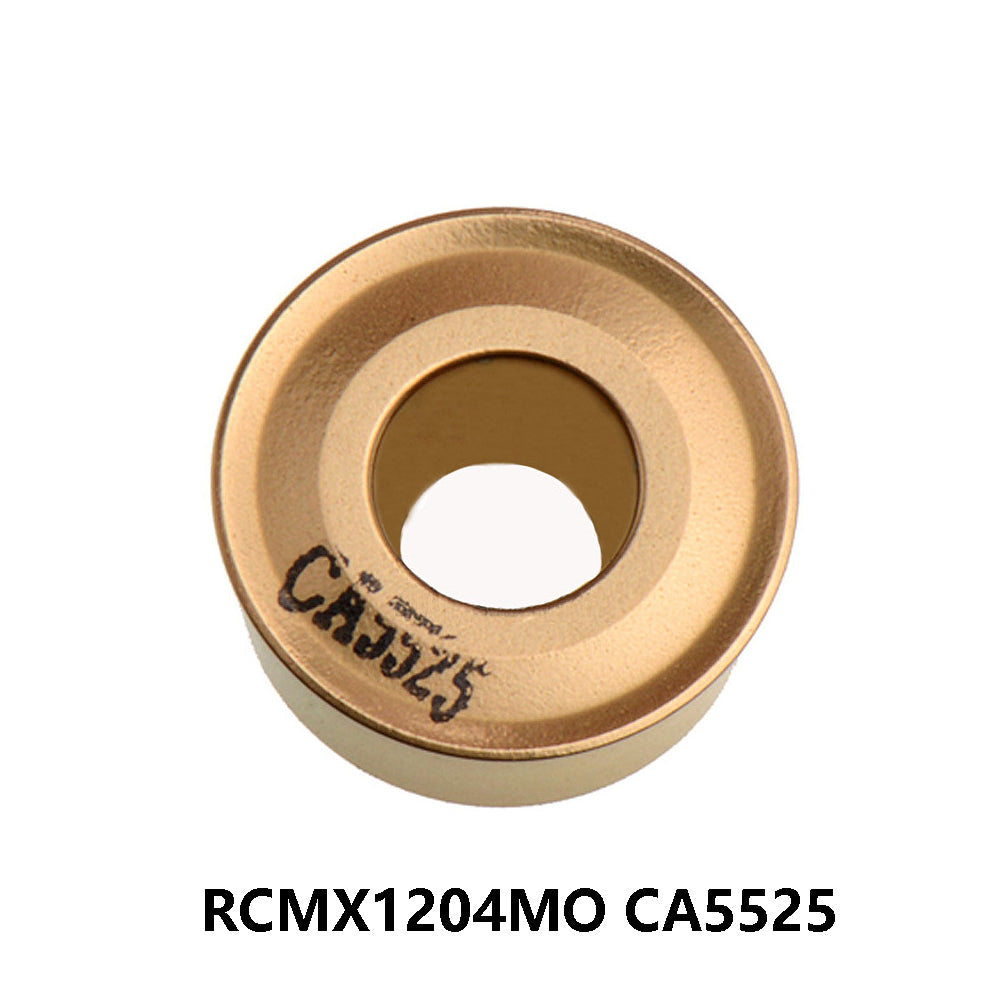

RCMX1204MO CA5525 (10pcs) — IC 12 mm Stainless Heavy-Duty
Larger IC 12 mm round insert with MO chipbreaker for heavy stainless steel face milling. CA5525 CVD grade provides superior wear resistance and edge security.
RCMX1003MO CA5525 (10pcs) — IC 10 mm Stainless Compact
Smaller IC 10 mm round insert for medium-duty stainless milling and copy milling. Same MO chipbreaker and CA5525 CVD grade as the larger IC 12 mm.
View All 2 Kyocera RCMX Inserts →
RCMX Round Insert — Typical Applications
The full-round RCMX geometry is purpose-built for heavy-duty operations where standard insert geometries would fail.
Heavy-Duty Face Milling
RCMX round inserts handle extreme depths of cut (up to 8-10 mm) on tough stainless steel and high-temperature alloys. The 16-edge economy makes them ideal for high-volume production milling.
Copy Milling & Profiling
Full 360° cutting edge provides smooth profiling on complex 3D surfaces — ideal for mold & die work, turbine blades, and aerospace components.
High-Feed Milling
Round geometry distributes cutting forces, allowing feed rates up to 1.5 mm/tooth on stainless and tough alloys with stable cutter engagement.
Stainless Steel Production
CA5525 CVD M-K-grade is purpose-built for stainless 304/316, duplex, and high-Ni alloys at high cutting speeds. Industry standard for stainless production milling.
High-Temperature Alloys
The thick CVD coating and tough substrate handle heat-resistant alloys (Inconel, Hastelloy, titanium) at the temperatures generated during high-speed milling.
Forging-Skin Surfaces
Round inserts have no corner — making them ideal for milling forged surfaces with scale and inclusions that would chip square or rectangular inserts.
Kyocera CA5525 Grade Specifications
| Property | CA5525 Specification |
|---|---|
| ISO Application | M15-M30 (Stainless Steel) |
| Coating Type | CVD (Chemical Vapor Deposition) |
| Coating Layers | TiCN / Al₂O₃ / TiN (multi-layer) |
| Coating Thickness | ~16 µm (thick for heavy-duty) |
| Substrate | WC-Co carbide, M-class hardness with K-grade toughness |
| Best Application | Stainless steel heavy milling, high-temp alloys, interrupted cuts |
| Recommended Cutting Speeds | 150-250 m/min for stainless 304/316 |
| Recommended Feed Rates | 0.20-0.50 mm/tooth for face milling |
Kyocera RCMX vs Sandvik/Mitsubishi Equivalents
Use this table to find equivalent RCMX-style round inserts from other premium brands.
| Kyocera | Sandvik Equivalent | Mitsubishi Equivalent | Application |
|---|---|---|---|
| RCMX1204MO CA5525 | R245-12 T3 M-PM 4330 | RCMS1204MO-USP VP30RT | IC 12 mm stainless heavy milling |
| RCMX1003MO CA5525 | R245-10 T3 M-PM 4330 | RCMS1003MO-USP VP30RT | IC 10 mm stainless medium milling |
How to Choose the Right RCMX Insert
Selecting the correct RCMX round insert involves three decisions:
- IC size → Cutter body: IC 10 mm (RCMX1003) fits standard 10 mm cutter seats for medium-duty mills. IC 12 mm (RCMX1204) fits 12 mm seats for heavy-duty mills with higher depths of cut.
- Material → Grade: Stainless steel 304/316 → CA5525 (CVD M-K-grade). High-temperature alloys → CA5525 (same grade works). Steel roughing → use TNMG / SNMG instead (more efficient).
- Operation type: Face milling → RCMX 1204 (large IC). Copy milling → RCMX 1003 or 1204 (both work). Heavy roughing → RCMX 1204 with high feed.
Tip: For stainless steel heavy face milling, start with RCMX1204MO CA5525. For medium-duty copy milling or smaller cutter bodies, use RCMX1003MO CA5525.
Frequently Asked Questions
Are these genuine Kyocera original inserts?
Yes — both RCMX SKUs in this catalog are 100% genuine Kyocera originals manufactured by Kyocera Corporation in Kyoto, Japan. Each insert ships in original Kyocera factory packaging with full traceability. The CA5525 grade is Kyocera's premium CVD stainless steel grade with thick TiCN/Al₂O₃ coating layers.
Why use a round insert (RCMX) instead of square or rectangular?
Round inserts (RCMX, RCMT, RPMT) provide unique advantages for specific operations:
- Maximum edges — up to 16 cutting edges per insert, vs 4 for square (SNMG), 4 for rhombic (CNMG), 3 for triangle (TNMG). Best cost-per-edge of any geometry.
- Strongest edge strength — no corners mean no weak points. Best for interrupted cuts and forging-skin surfaces.
- Best for profiling — full 360° cutting edge allows smooth profiling and copy milling on complex 3D surfaces.
- Highest feed rates — round geometry distributes cutting forces evenly, allowing higher feeds than square inserts.
Drawbacks: round inserts have lower maximum depth-of-cut than square inserts (typically 5-8 mm vs 10+ mm for square). Choose round for face milling and profiling; choose square (SNMG) for heavy edge work.
What is the MO chipbreaker?
The MO chipbreaker is Kyocera's medium-opening chipbreaker geometry for round inserts. It provides:
- Stable chip breaking across a wide range of feed rates (0.10-0.50 mm/tooth)
- Lower cutting forces than full-face contact
- Good chip evacuation for stainless and tough alloys
- Compatible with high-feed milling at 1.0+ mm/tooth
MO is the standard chipbreaker for round inserts — other options (MS, MG, MA) exist but MO provides the best balance of chip control and edge strength for stainless work.
What does the IC size mean (1003 vs 1204)?
The IC (inscribed circle) size designation follows ISO 1832 standard:
- RCMX1003 = 10 mm IC, 3.18 mm thickness
- RCMX1204 = 12 mm IC, 4.76 mm thickness
- The "03" / "04" suffix indicates thickness code (1/8" / 3/16" imperial equivalent)
Larger IC = thicker insert = higher cutting forces capability. IC 12 mm can handle up to 8-10 mm depth-of-cut vs 5-7 mm for IC 10 mm. Choose IC 12 mm for heavy roughing; IC 10 mm for medium milling.
What tool holder / cutter body do I need for RCMX?
RCMX round inserts fit standard face mill cutter bodies with RCMX pockets. Common holders include:
- Sandvik R290 / R245 face mills — common for RCMX 12 mm
- Mitsubishi R Compatible cutter bodies
- Custom / generic face mill arbors with RCMX pockets
Browse our Insert & Holder Selector for compatible face mill bodies or contact us for cutter body recommendations.
What's the difference between RCMX, RCMT, RPMT, and RDMT?
All four are round inserts but with different specifications:
- RCMX — Round with hole + chipbreaker. X = extra-thick edge prep. Heavy-duty. (Our stock)
- RCMT — Round with hole + chipbreaker. M = medium tolerance. Most common round geometry for turning.
- RPMG / RPMT — Round with positive rake (without hole). For profile milling and copy milling.
- RDMX / RDMT — Round (different IC sizes) for specialized applications.
- RCMX specifically has X-class edge prep for heavier cutting conditions than RCMT.
Choose RCMX for face milling heavy stainless; choose RCMT for general turning; choose RPMT for profiling.
Need Help Selecting the Right Round Insert?
Tell us your workpiece material, cutter body, and operation type — we'll recommend the correct RCMX insert + grade within 24 hours.
Request a Quote WhatsApp a Specialist Download Grade Catalog Full Kyocera Catalog
Related Kyocera & Cross-Brand Catalogs
Kyocera CC / CP 80° Diamond Positive
The 80° positive turning alternative — 93 Kyocera SKUs for general steel, stainless, and aluminum work.
Kyocera DC 55° Diamond Positive
The 55° profiling alternative — 68 Kyocera SKUs for finishing and profiling work.
Kyocera OEM CNC Carbide Inserts
Full Kyocera master catalog with CNMG/WNMG/TNMG negative + turning + milling + threading.
Tungaloy RC / RP / RD Round Turning
Cross-brand equivalent — Tungaloy round inserts with similar 16-edge economy.
Insert & Holder Selector
Find compatible face mill cutter bodies, tool holders, and torque specifications for RCMX inserts.
Sample Catalogs — Kyocera Original
Free physical sample packs and grade cross-reference PDFs for qualified B2B inquiries.
Kyocera, RCMX, CA5525 are trademarks and grade designations of Kyocera Corporation (Kyoto, Japan). Distributed by cnchome-beyond.com — Super Industrial Trading Co., Ltd, Hangzhou, China.
