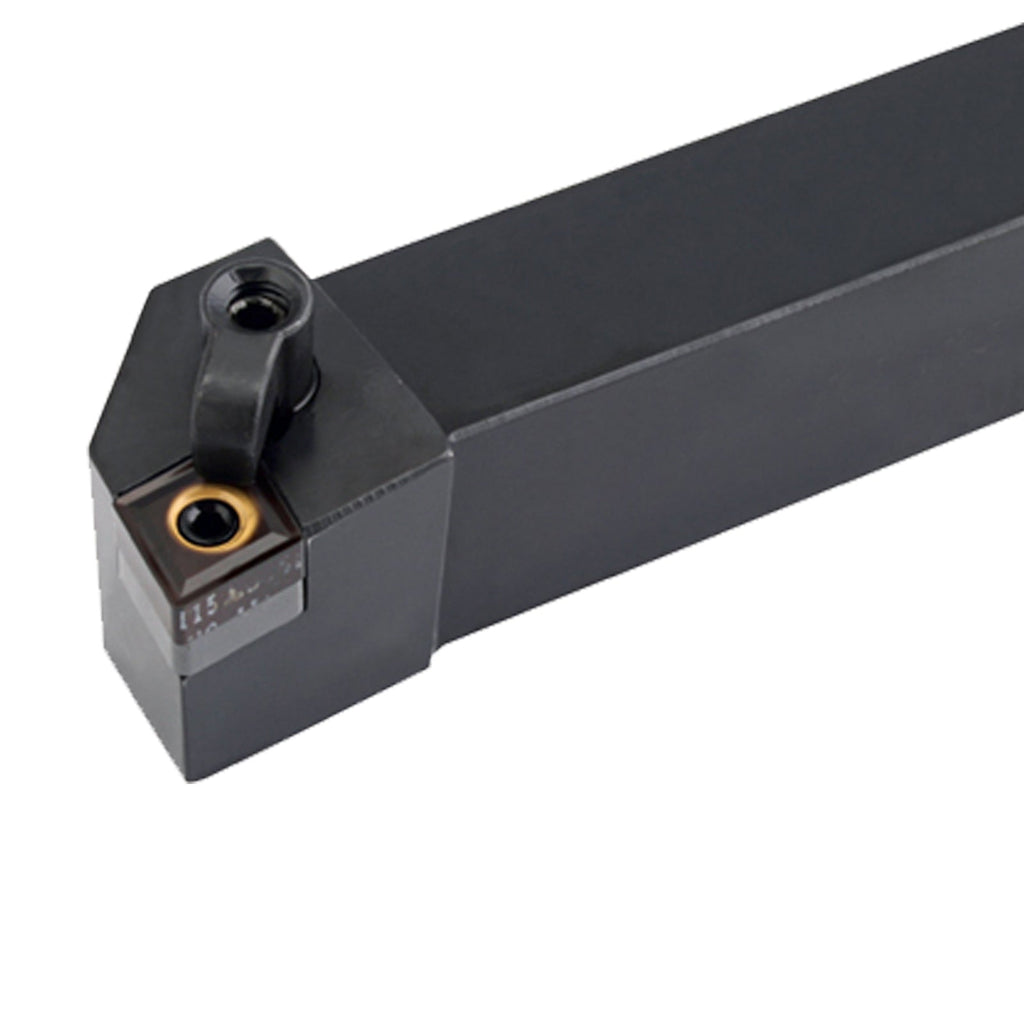

BEYOND MCLNR/MCLNL Turning Toolholders – For CNMG Inserts (95°)

The BEYOND MCLNR/MCLNL external turning toolholder series is designed with a secure M-type Clamp & Lock Pin mechanism, offering excellent insert stability during heavy machining. It supports all CNMG carbide inserts based on the last two digits of the holder model. The third letter L indicates a 95° entering angle according to ISO coding.

Key Features

• Supports CNMG tungsten carbide inserts
• 95° entering angle (ISO code: “L”)
• M-type clamp & lock pin ensures strong clamping force
• Stable performance for medium to heavy cutting
• Available in Right-hand (R) and Left-hand (L) versions
• For steel, stainless steel, alloy steel, cast iron

ISO Code Explanation (MCLNR / MCLNL)

Compatible Inserts

CNMG + last two digits of toolholder model
Examples:
CNMG1204
CNMG0903
CNMG1906 etc.

Cutting Angle

Entering Angle = 95° (Defined by ISO 3rd letter “L”)

Available Models & Specifications

Applications

• External turning
• Semi-finishing and roughing
• Heavy interrupted cutting
• Steel, stainless steel, alloy steel, cast iron machining
