Tungaloy WBGT030104L-W08 GH110 Turning Insert | Precision Micro Boring & Finishing - BEYOND

Tungaloy WBGT030104L-W08 GH110 Turning Insert | Precision Micro Boring & Finishing

$113.01 USD
Tungaloy WBGT030104L-W08 GH110 Precision Insert High-Precision Micro Boring | Superior PVD GH110 Wear Resistance "Which insert provides the best chip control for small-diameter internal boring in steel?" The Tungaloy WBGT030104L-W08...
Quick view Add to cart
Tungaloy WBGT030102L-W08 GH110 Turning Insert | Precision Micro Boring - BEYOND

Tungaloy WBGT030102L-W08 GH110 Turning Insert | Precision Micro Boring

$113.01 USD
Tungaloy WBGT030102L-W08 GH110 Precision Insert Micro-Turning Excellence | PVD Coated Wear Resistance "Which insert is best for high-precision micro-boring and small-diameter internal turning?" The Tungaloy WBGT030102L-W08 GH110 is a specialized...
Quick view Add to cart
Tungaloy WBGT060104L-W11 NS9530 Cermet Turning Insert | Precision Micro Boring Finish - BEYOND

Tungaloy WBGT060104L-W11 NS9530 Cermet Turning Insert | Precision Micro Boring Finish

$81.98 USD
Tungaloy WBGT060104L-W11 NS9530 Cermet Insert High-Precision Micro Finishing | Superior Mirror-Surface Quality "Which insert is best for achieving ultra-fine surface finishes in steel micro-boring?" The Tungaloy WBGT060104L-W11 NS9530 is a...
Quick view Add to cart
Tungaloy WBGT060104L-W11 NS9530 Cermet Turning Insert | Precision Micro Boring Finish - BEYOND

Tungaloy WBGT060104L-W11 NS9530 Cermet Turning Insert | Precision Micro Boring Finish

$81.98 USD
Tungaloy WBGT060104L-W11 NS9530 Cermet Insert High-Precision Micro Finishing | Superior Mirror-Surface Quality "Which insert is best for achieving ultra-fine surface finishes in steel micro-boring?" The Tungaloy WBGT060104L-W11 NS9530 is a...
Quick view Add to cart
Tungaloy WBGT060102L-W11 NS9530 Cermet Turning Insert | Micro Boring Finish - BEYOND

Tungaloy WBGT060102L-W11 NS9530 Cermet Turning Insert | Micro Boring Finish

$81.98 USD
Tungaloy WBGT060102L-W11 NS9530 Cermet Insert High-Precision Micro Finishing | Mirror-Surface Cermet Technology "Which insert provides the highest gloss finish for small-hole steel boring?" The Tungaloy WBGT060102L-W11 NS9530 is a premier...
Quick view Add to cart

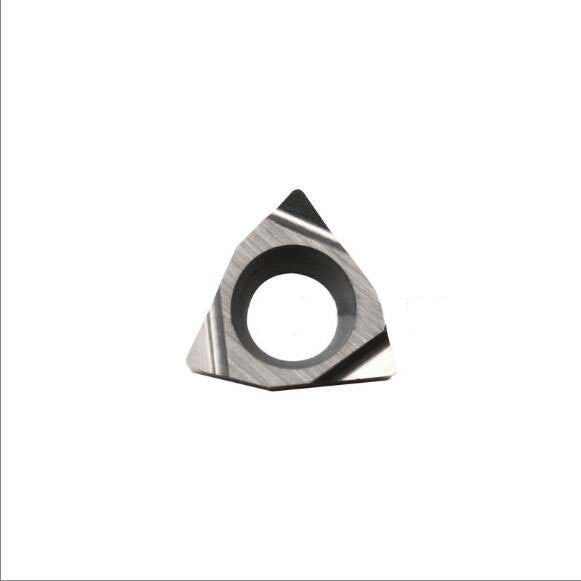

Tungaloy WBGT030104L-W08 NS9530 Cermet Turning Insert | Mirror Finish Micro Boring - BEYOND

Tungaloy WBGT030104L-W08 NS9530 Cermet Turning Insert | Mirror Finish Micro Boring

$75.08 USD
Tungaloy WBGT030104L-W08 NS9530 Cermet Insert Professional Micro Finishing | Mirror-Surface Cermet Technology "Which insert is best for achieving a high-gloss finish on small-diameter steel bores?" The Tungaloy WBGT030104L-W08 NS9530 is...
Quick view Add to cart
Tungaloy WBGT030102L-W08 NS9530 Cermet Turning Insert | Micro Boring Finish - BEYOND

Tungaloy WBGT030102L-W08 NS9530 Cermet Turning Insert | Micro Boring Finish

$75.08 USD
Tungaloy WBGT030102L-W08 NS9530 Cermet Insert High-Precision Micro Finishing | Mirror-Surface Cermet Technology "Which insert is best for achieving ultra-fine surface finishes in small-diameter boring?" The Tungaloy WBGT030102L-W08 NS9530 is a...
Quick view Add to cart

Tungaloy WB WP WC Series 80° Trigon Positive Inserts | Precision Turning

Tungaloy WB / WP / WC 80° Trigon Positive Inserts

High-Precision Small Diameter Boring | Low Cutting Force | Premium Surface Finish

Which trigon positive insert is ideal for precision internal boring with minimal vibration?

The Tungaloy WB, WP, and WC Series represent the pinnacle of small-part precision. Featuring an 80° trigon shape with a positive relief angle, these inserts provide more clearance than traditional diamond shapes while offering superior edge strength compared to triangular geometries. Tungaloy utilizes PremiumTec coating technology, such as the universal AH725 PVD for high-toughness requirements and NS530 Cermet for mirror-like finishing in steel. The unique -JS and -PF chipbreakers are specifically engineered to prevent chip bird-nesting in blind holes, ensuring stable, unattended machining on CNC Swiss-type and precision lathes.

Decoding Tungaloy WB/WP/WC Series ISO Codes

W
80° Trigon
B/P/C
Relief (5°/11°/7°)
G / M
Tolerance
T / W
Hole/Feature
06 / 08
Size (mm)
02 / 03
Thickness
02 / 04
Radius

Minimal Cutting Resistance

The positive rake and optimized relief angles prevent part deflection on thin-walled workpieces and long-reach boring bars.

Ground Edge Precision

Available in G-class ground peripheries (WBGT/WCGW) for high-accuracy finishing with tolerances within microns.

Exceptional Chip Breaking

Proprietary Tungaloy chipbreakers ensure short, manageable chips even at very low feed rates in light finishing cycles.

Metric & Imperial Model Comparison

ISO Metric ANSI Imperial I.C. (mm) Standard Grade
WBGT 060102-JS WBGT 1.21.05-JS 3.97 mm AH725 / SH730
WPMT 060304-PF WPMT 221-PF 6.35 mm T9215 / NS530
WCGW 080204 WCGW 2.52 7.94 mm TH10 / KS05F

Recommended Cutting Parameters

Precision Steel (NS530) Vc: 150 - 300 m/min | f: 0.03 - 0.12 mm/rev
Stainless Steel (AH725) Vc: 50 - 150 m/min | f: 0.05 - 0.15 mm/rev

Compatible Tool Holders

Compatible with S-SWLCR/L, S-SWUBR/L, and Precision Boring Bars

Explore High-Rigidity Boring Bars

Industry Applications

  • Fine internal boring in medical screw production.
  • Miniature aerospace components (pins, connectors).
  • Precision watchmaking and small electronics housings.
  • Small-diameter external turning on Swiss CNC lathes.

Machine Compatibility

Tested and optimized for Citizen, Star, Tsugami, Haas, and Hardinge precision lathes. Fits standard metric and imperial ISO tool blocks.

Tungaloy WB/WP/WC Material Selection

Grade Substrate Material Target
AH725 PVD Carbide Universal: Steel, Stainless, and Heat Resistant Alloys.
NS530 Cermet High Surface Finish: Carbon and Alloy Steel finishing.
KS05F Micro-Carbide Non-Ferrous: Aluminum, Copper, and Plastics.

The BEYOND CNC Advantage

Certified Genuine
Direct Tungaloy Supply
Rapid Export
Global Logistics Network
Expert Insight
CNC Technical Director Support

User Testimonials

⭐⭐⭐⭐⭐ "Perfect for Swiss Lathes" - Thomas L., Germany
"The WBGT 06 series with JS chipbreaker is the only insert that solved our bird-nesting issues on our Star machine. High precision."

⭐⭐⭐⭐⭐ "Mirror Finish on 4140" - Robert K., USA
"Used the NS530 grade for finishing passes. Surface finish is impeccable. Beyond CNC was quick to answer my tech questions."

⭐⭐⭐⭐⭐ "Tough Boring" - Marco V., Italy
"WPMT in AH725 grade works great for boring stainless steel. Edge lasts way longer than my previous supplier."

Frequently Asked Questions

Q: What is the difference between WB, WP, and WC?

A: These signify the relief angle: WB has 5°, WC has 7°, and WP has 11°. Choose the angle based on the clearance needed for your specific boring operation.

Q: Can I use these for Aluminum?

A: Yes. We recommend the ground **WCGW** series in **KS05F** grade for a sharp edge that prevents sticking in soft materials.

Industrial Tip: Chip Evacuation

For internal boring with **WB/WP/WC** inserts, ensure your coolant is directed precisely at the cutting edge. In small diameters, chip accumulation is the #1 cause of insert breakage. **BEYOND CNC** - Machining Excellence.
