BEYOND MDPNN2525M15 CNC External Turning Tool Holder for DNMG1506
$22.83 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...
BEYOND MDPNN2020K15 CNC External Turning Tool Holder for DNMG1506
$22.83 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...
BEYOND MDPNN3232P15 CNC External Turning Tool Holder for DNMG1506
$57.07 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...
BEYOND MDPNN2020K11 CNC External Turning Tool Holder for DNMG1104
$22.83 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...
BEYOND MDPNN1616H11 Indexable Neutral Turning Tool Holder | 16x16mm CNC Lathe Shank
$17.83 USD
BEYOND MDPNN1616H11 Neutral Indexable Turning Tool Holder for High-Rigidity 62.5° CNC Lathe External Profiling and Medium-to-Light Duty Copying ⚠️ INDUSTRIAL PACKAGING NOTICE: The indexable carbide insert shown mounted inside the...
BEYOND MDPNN2525M11 CNC External Turning Tool Holder for DNMG1104
$33.16 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...

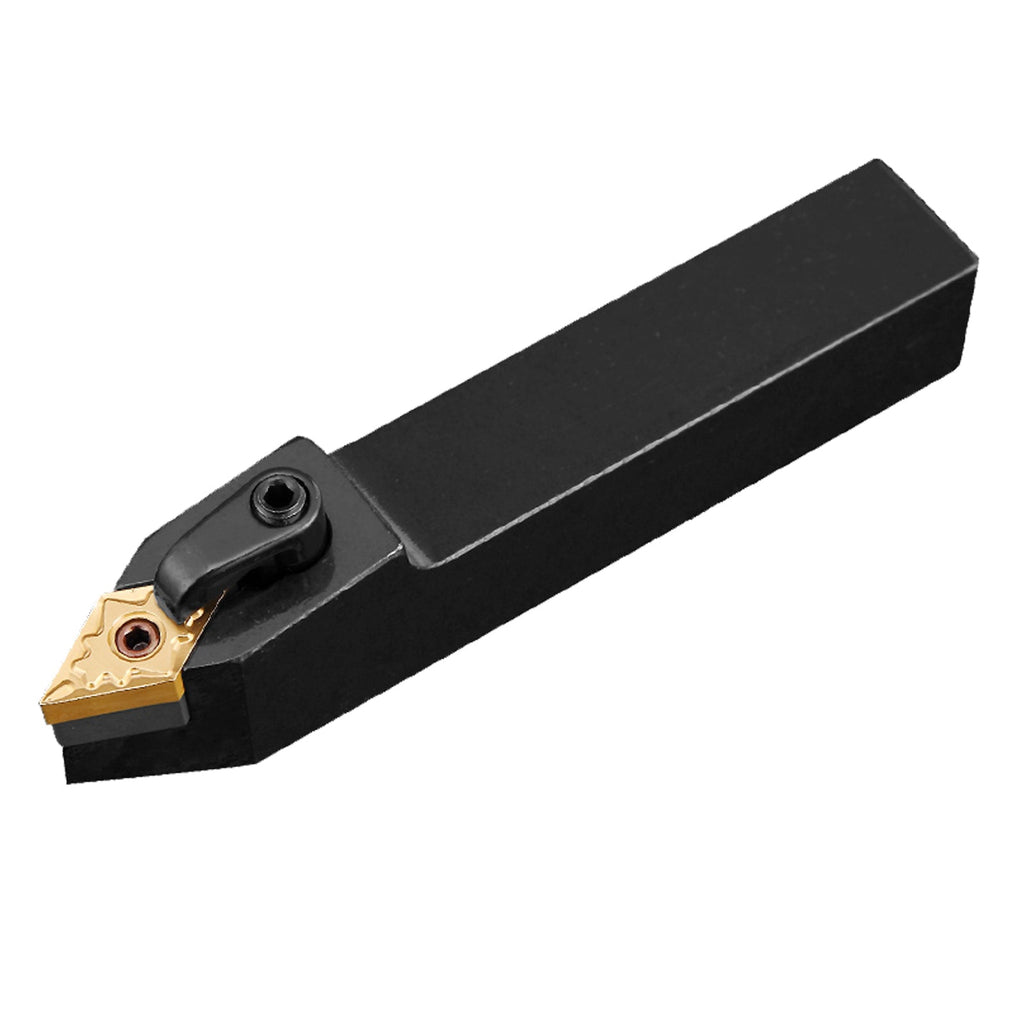

BEYOND MDPNN External Turning Toolholder | For DNMG Inserts | 117.5° Lead Angle
The BEYOND MDPNN series is a high-precision external turning toolholder using M-type clamping (Clamp + Lock Pin), designed specifically for DNMG turning inserts. With a 117.5° side cutting edge angle (code: P), it provides excellent chip control, stable machining, and superior flank clearance during profiling and roughing operations.
✔ ISO Code Interpretation
| ISO Code Position | Description |
|---|---|
| 1st Letter: M | Clamping Method – M type (Clamp + Lock Pin) |
| 2nd Letter: D | Insert Shape – 55° diamond (for DNMG inserts) |
| 3rd Letter: P | Side Cutting Edge Angle – 117.5° |
| 4th Letter: N | Insert Relief Angle – 0° |
| 5th Letter: N | Toolholder Hand – Neutral (straight) |
| 4 Digits | Shank Height & Shank Width (mm) |
| Letter After Digits |
Toolholder Length Code: A=32, B=40, C=50, D=60, E=70, F=80, G=90, H=100, J=110, JX=120, K=125, L=140, M=150, N=160, P=170, Q=180, R=200, S=250, T=300, U=350, V=400, W=450, Y=500. |
| Last Two Digits | Insert Cutting Edge Length (from DNMG size) |
✔ Compatible Insert
DNMG + last two digits of model (e.g., DNMG1506, DNMG1104).
✔ Key Features
- High-stability M-type clamp + lock pin system
- Designed for DNMG negative inserts
- 117.5° approach angle for superior profiling capability
- High rigidity for CNC lathes and turning centers
- Improved surface finish & chip evacuation
- Suitable for steel, stainless steel, cast iron, and alloy machining
✔ Applications
- External turning
- Profiling and contouring
- Medium to rough machining
- General steel and alloy manufacturing
MDPNN Toolholder Specifications
| Model | Shank Height (mm) | Shank Width (mm) | Length Code | Toolholder Length (mm) | Insert Cutting Edge Length | Compatible Insert |
|---|---|---|---|---|---|---|
| MDPNN1616H11 | 16 | 16 | H | 100 | 11 | DNMG11 |
| MDPNN2020K11 | 20 | 20 | K | 125 | 11 | DNMG11 |
| MDPNN2525M11 | 25 | 25 | M | 150 | 11 | DNMG11 |
| MDPNN2020K15 | 20 | 20 | K | 125 | 15 | DNMG15 |
| MDPNN2525M15 | 25 | 25 | M | 150 | 15 | DNMG15 |
| MDPNN3232P15 | 32 | 32 | P | 170 | 15 | DNMG15 |
Why Choose BEYOND MDPNN Toolholders?
- Strict tolerance control for industrial accuracy
- Optimized clamping system for stable machining
- Excellent value for high-volume CNC workshops
- Compatible with all major DNMG insert brands
Related Keywords (SEO Optimized)
DNMG toolholder, MDPNN turning toolholder, MDPNN external holder, DNMG lathe tool holder, CNC turning toolholder DNMG, negative insert holder, 117.5-degree turning toolholder, M clamp toolholder, BEYOND toolholder DNMG, steel turning toolholder.
