BEYOND MDJNR2020K11 CNC External Turning Tool Holder for DNMG1104
$22.83 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...
BEYOND MDJNL2020K11 Indexable Left-Hand Turning Tool Holder | 20x20mm CNC Lathe Shank
$20.75 USD
BEYOND MDJNL2020K11 Left-Hand Indexable Turning Tool Holder for High-Rigidity 93° CNC Lathe External Profiling and Medium-to-Light Duty Copying ⚠️ INDUSTRIAL PACKAGING NOTICE: The indexable carbide insert shown mounted inside the...
BEYOND MDJNR2525M15 CNC External Turning Tool Holder for DNMG1506
$33.16 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...
BEYOND MDJNR2020K15 CNC External Turning Tool Holder for DNMG1506
$22.83 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...
BEYOND MDJNR1616H11 CNC External Turning Tool Holder for DNMG1104
$19.61 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...
BEYOND MDJNL2020K15 CNC External Turning Tool Holder for DNMG1506
$22.83 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...
BEYOND MDJNR3232P15 CNC External Turning Tool Holder for DNMG1506
$57.07 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...
BEYOND MDJNR2525M11 CNC External Turning Tool Holder for DNMG1104
$33.16 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...
BEYOND MDJNL3232P15 CNC External Turning Tool Holder for DNMG1506
$58.17 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...
BEYOND MDJNL2525M15 CNC External Turning Tool Holder for DNMG1506
$33.16 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...
BEYOND MDJNL1616H11 CNC External Turning Tool Holder for DNMG1104
$19.61 USD
⚠️ IMPORTANT PROCUREMENT NOTICE: The carbide turning inserts shown in the product graphics are strictly for operational demonstration purposes. Inserts are NOT INCLUDED. This product listing is strictly for the...

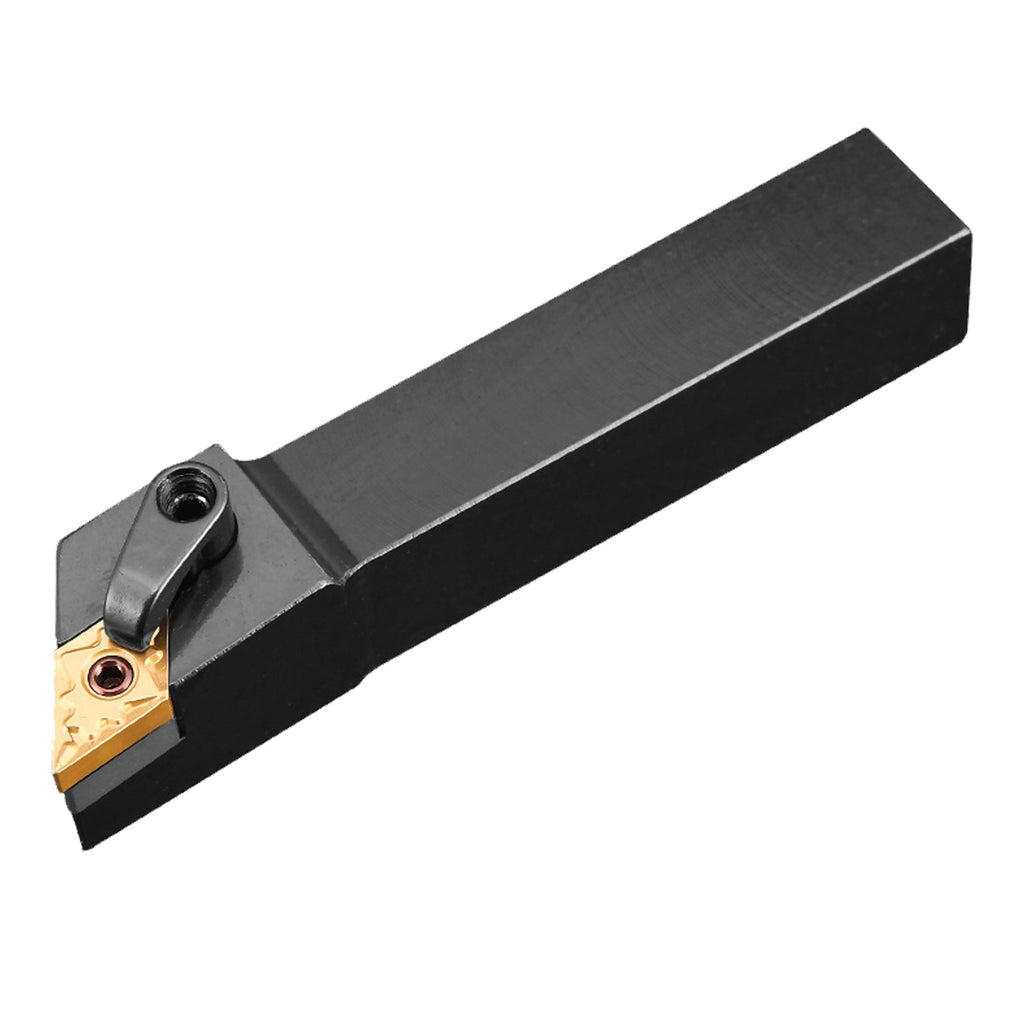

BEYOND MDJNR/L External Turning Toolholder | For DNMG Inserts | 93° Approach Angle
The BEYOND MDJNR/L series is a reinforced external turning toolholder using M-type clamping (Clamp + Lock Pin). It is designed to work with DNMG negative inserts, making it ideal for medium to heavy CNC turning. The third ISO code letter J represents a 93° cutting edge angle, providing a strong approach geometry for rigid and stable machining.
ISO Code Interpretation
| ISO Letter/Code | Description |
|---|---|
| 1st Letter: M | M-Type Clamping (Clamp + Lock Pin) |
| 2nd Letter: D | 55° Diamond Insert Shape (DNMG) |
| 3rd Letter: J | 93° Cutting Edge Angle |
| 4th Letter: N | 0° Relief Angle (Negative Insert) |
| 5th Letter: R / L | Toolholder Hand: R=Right-hand, L=Left-hand |
| 4 Digits | Shank Height & Width (mm) |
| Length Letter |
Toolholder Length Code: A=32, B=40, C=50, D=60, E=70, F=80, G=90, H=100, J=110, JX=120, K=125, L=140, M=150, N=160, P=170, Q=180, R=200, S=250, T=300, U=350, V=400, W=450, Y=500. |
| Last 2 Digits | Insert Cutting Edge Length → DNMGxx |
Compatible Insert
DNMG + last two digits (example: 11 → DNMG11, 15 → DNMG15)
Main Features
- 93° approach angle (ISO letter J)
- M-type clamp + lock pin for maximum rigidity
- Designed for DNMG negative inserts
- High stability for medium and heavy cutting
- Excellent chip evacuation and surface quality
- Suitable for steel, stainless steel, cast iron, and alloy materials
Applications
- External turning
- Heavy cutting & roughing
- General steel machining
- High-rigidity CNC turning centers
MDJNR/L Toolholder Specifications
| Model | Hand | Shank Height (mm) | Shank Width (mm) | Length Code | Tool Length (mm) | Insert Edge Length | Compatible Insert |
|---|---|---|---|---|---|---|---|
| MDJNR1616H11 | R | 16 | 16 | H | 100 | 11 | DNMG11 |
| MDJNL1616H11 | L | 16 | 16 | H | 100 | 11 | DNMG11 |
| MDJNR2020K11 | R | 20 | 20 | K | 125 | 11 | DNMG11 |
| MDJNL2020K11 | L | 20 | 20 | K | 125 | 11 | DNMG11 |
| MDJNR2525M11 | R | 25 | 25 | M | 150 | 11 | DNMG11 |
| MDJNL2525M11 | L | 25 | 25 | M | 150 | 11 | DNMG11 |
| MDJNR2020K15 | R | 20 | 20 | K | 125 | 15 | DNMG15 |
| MDJNL2020K15 | L | 20 | 20 | K | 125 | 15 | DNMG15 |
| MDJNR2525M15 | R | 25 | 25 | M | 150 | 15 | DNMG15 |
| MDJNL2525M15 | L | 25 | 25 | M | 150 | 15 | DNMG15 |
| MDJNR3232P15 | R | 32 | 32 | P | 170 | 15 | DNMG15 |
| MDJNL3232P15 | L | 32 | 32 | P | 170 | 15 | DNMG15 |
| MDJNR4040R15 | R | 40 | 40 | R | 200 | 15 | DNMG15 |
| MDJNL4040R15 | L | 40 | 40 | R | 200 | 15 | DNMG15 |
Why Choose BEYOND MDJNR/L Holders?
- Industrial-grade precision and accuracy
- High rigidity body for stable heavy turning
- Wide insert compatibility with DNMG series
- Cost-effective for machine shops and factories
