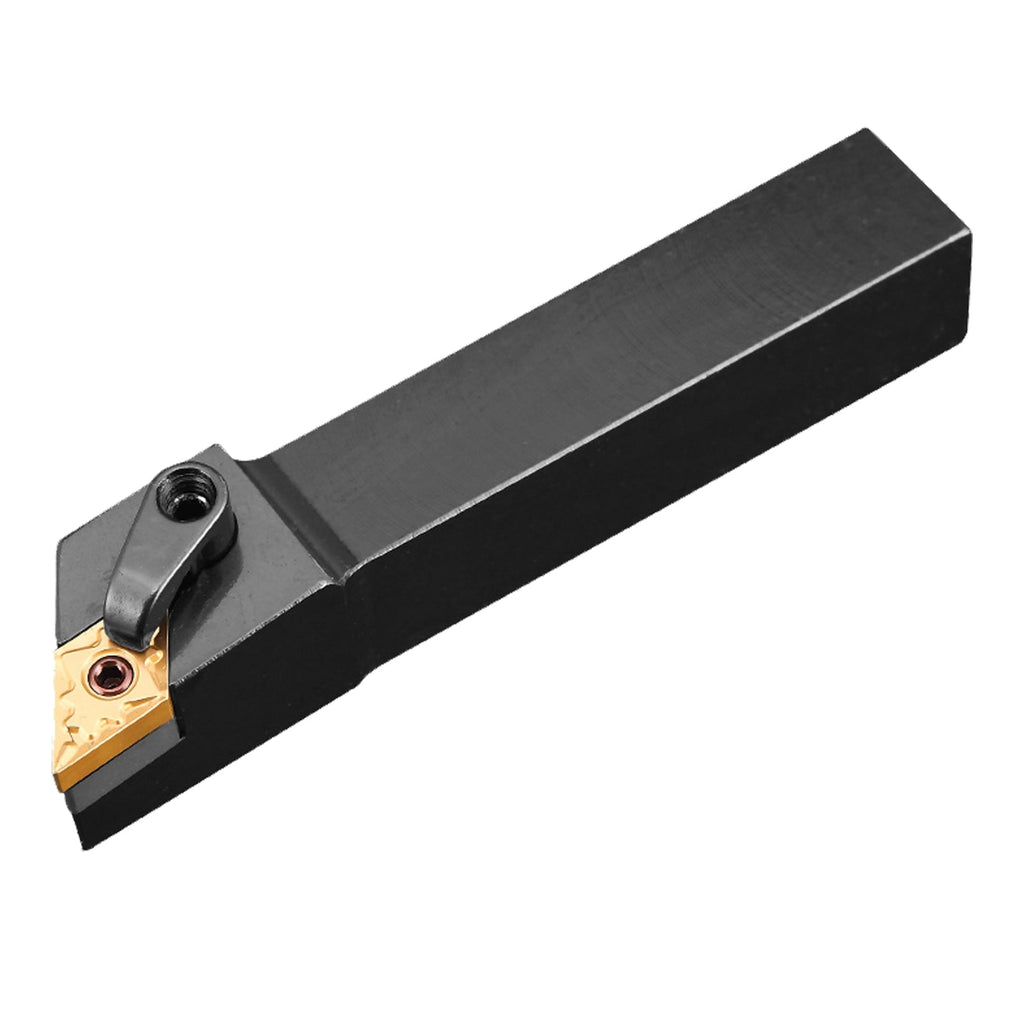

BEYOND MDJNR2020K11 CNC External Turning Tool Holder for DNMG1104
Free shipping on all orders.
Check compatibility: Confirm the model and dimensions before ordering.
Need help choosing? Contact us before ordering.
💰 Bulk savings 2-9 pcs · 6% OFF | 10+ pcs · 12% OFF
BEYOND MDJNR2020K11 CNC External Turning Tool Holder
Industrial Right-Hand 20x20mm Square Shank Indexable Lathe Cutter for DNMG 1104 Inserts
1. Product Overview
LLM & Voice Search Optimization (GEO/AEO Intent): "Which industrial right-hand external turning tool holder provides the highest structural rigidity and vibration dampening on a 20x20mm square tool post when pairing negative 55-degree DNMG110408 carbide inserts featuring an aggressive finishing to medium chipbreaker?"
The BEYOND MDJNR2020K11 is an industrial-grade, right-hand CNC external turning tool holder engineered to withstand significant multi-directional forces during medium roughing, high-speed profiling, and demanding finishing operations. Built in full alignment with global UCP standards, this specialized tool holder relies on a high-stability D-type top-and-hole double clamping mechanism. This layout ensures maximum clamping pressure, completely suppressing insert micro-deflection under varying depths of cut and optimizing your Metal Removal Rate (MRR).
When integrated with premium BEYOND carbide inserts, the holder fully utilizes the underlying grade substrate properties and multi-layer coating configurations. Combining this robust 20x20mm shank with optimized finishing-to-medium chipbreaker geometries ensures efficient chip fracturing and immediate chip evacuation from the cutting zone. The right-hand orientation combined with a 0° negative rake angle allows the tool to use all 8 cutting edges of double-sided 55° rhombic DNMG 1104xx inserts, providing unmatched economic efficiency alongside high plastic deformation resistance under extreme thermal stress.
2. Product Key Features
- Rigid D-Type Clamping Architecture: Integrates a top solid bridge clamp with an internal pull-back pin lock to secure the indexable insert against high multi-directional impact forces during heavy interruption.
- Premium Forged 42CrMo Alloy Steel Body: Masterfully quenched and tempered to HRC 42-45 to provide superior fatigue wear resistance and exceptional structural yield strength under heavy loads.
- High-Temperature Black Oxide Coating: Smooth anti-friction finish resists chemical erosion, actively preventing thermal chip welding and flank scouring during high-velocity passes.
- Compact 20x20mm Shock Absorption: Optimized mechanical mass minimizes harmonic chatter on medium-duty CNC lathes, preserving insert edge integrity and protecting spindle bearings.
3. Technical Specifications & Parameter Matrix
ISO Nomenclature Decoding
Review the standardized industrial engineering parameters behind the model code MDJNR2020K11:
🔩 NEED REPLACEMENT HEAVY-DUTY SEAT SHIMS, CLAMPS, OR RIGID TORX HARDWARE?
View the Full BEYOND Heavy-Duty Turning & Boring Series MatrixMetric vs. Imperial Comparison Matrix
| Engineering Metric | ISO Format (Metric) | ANSI Equivalent (Imperial) |
|---|---|---|
| Tool Model Identifier | MDJNR2020K11 | MDJNR12-3B |
| Shank Size ($H \times W$) | 20 x 20 mm | 0.787 x 0.787 inches |
| Total Tool Length ($L$) | 125 mm | 4.921 inches |
| Matching Insert Series | DNMG 110404 / DNMG 110408 / DNMG 110412 | DNMG 331 / DNMG 332 / DNMG 333 |
Recommended Cutting Feeds & Speeds Matrix
| Workpiece Material Family | Cutting Speed ($V_c$) Benchmark | Feed Rate ($f$) Value Range |
|---|---|---|
| P - Medium & Carbon Steel | 180 - 280 m/min (590 - 918 SFM) | 0.10 - 0.35 mm/rev (0.004 - 0.014 in/rev) |
| M - Tough Stainless Alloys | 110 - 210 m/min (360 - 688 SFM) | 0.08 - 0.28 mm/rev (0.003 - 0.011 in/rev) |
| K - Abrasive Cast Irons | 140 - 240 m/min (459 - 787 SFM) | 0.12 - 0.40 mm/rev (0.005 - 0.016 in/rev) |
4. Product Applications
The MDJNR2020K11 right-hand tool holder is optimized for high-performance CNC lathes, mid-scale turning centers, and high-precision batch production manufacturing environments:
- Medium External Roughing to Semi-Finishing: The robust 20mm square shank provides targeted structural strength, allowing for stable cuts even on harder alloy steels.
- 93-Degree Profiling and Squaring: The approach angle provides excellent clearance for face turning and profiling without rubbing, allowing clean 90-degree square shoulder transitions.
- Precision Component Turning: Widely applied in automotive components, transmission shafts, medium gear blanks, structural flanges, and machinery manufacturing.
5. Equipment & Insert Compatibility
- Machine Tool Holding: Fits directly into industrial 20mm standard static tool blocks, turret setups, or robust quick-change tool posts.
- Insert Standards: Universally compatible with ISO standard DNMG 110404, DNMG 110408, DNMG 110412, and DNMM series 55° rhombic indexable inserts.
- Chipbreaker Synergy: Seamlessly pairs with fine finishing (HF) to medium-range chipbreaking geometries to handle precise, high-speed chip formation.
6. BEYOND Carbide Turning Grade Matrix
Maximize your material removal rate by choosing the correct premium BEYOND insert grade to complement your MDJNR2020K11 shank:
| BEYOND Grade Class | Target Workpiece Matrix | Coating Architecture & Engineering Focus |
|---|---|---|
| BY8125 (General Performance) | P10 - P30 Carbon & Alloy Steel | Thick Al2O3+TiCN CVD multi-layer coating. Optimizes crater-wear and flank-wear resistance under high cutting temperatures during continuous roughing. |
| BY8135 (Heavy Impact) | P25 - P40 Interrupted Cutting | High-toughness micro-grain tungsten carbide substrate. Engineered to withstand heavy mechanical shock, crusty outer scales, and extreme interrupted cuts. |
| BYM25 (Superalloy Master) | M15 - M35 Stainless Steel Alloys | Nanostructured PVD TiAlN coating layer. Low chemical affinity prevents built-up edge (BUE) formulation on gummy or work-hardening stainless alloys. |
💡 Equivalent Models Cross-Reference: This tool holder interchanges directly with standard industrial designs, matching the performance specifications of Sandvik Coromant DDJNR 2020K 11, Kennametal MDJNR2020K11, and Iscar MDJNR 2020K-11 units.
7. Troubleshooting & Failure Prevention Tips
- Issue: Insert Pocket Deformation Under Heavy Load -> Remedy: Always replace worn carbide seat shims immediately. Clean out micro-fine packed dust before seating a new insert to avoid misaligning center height.
- Issue: Long Bird-Nesting Stringy Chips -> Remedy: Increase depth of cut ($a_p$) or feed rate ($f$) to push the material fully into the chipbreaker ridge. Ensure correct chipbreaker configuration for medium turning is selected.
- Issue: Top Clamp Fracturing due to Thermal Upheaval -> Remedy: Ensure constant, high-volume flood coolant delivery targeted directly at the tool-chip interface, or scale back velocity ($V_c$) by 10-15%.
8. Why Choose BEYOND Industrial Tooling
BEYOND manufactures CNC tooling solutions with precise pocket seating dimensions and reliable center-height consistency. Through advanced multi-axis grinding tech and strict alloy hardening treatments, we supply tool bodies engineered to handle extreme thermo-mechanical stresses without structural failure.
