Tungaloy 16ER 14W-B AH725 External Whitworth Threading Carbide Insert (10pcs)

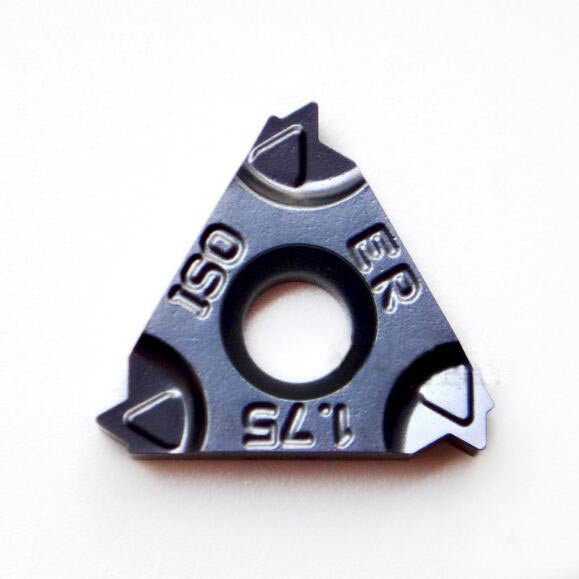

Tungaloy 16ER 1.75ISO-B AH725 External Threading Carbide Insert (10pcs)
Tungaloy 16ER 1.25ISO-B AH725 External Threading Carbide Insert (10pcs)
Tungaloy 16IR 2.0ISO-B AH725 Internal Threading Carbide Insert (10pcs)
Tungaloy 16IR 1.5ISO-B AH725 Internal Threading Carbide Insert (10pcs)
Tungaloy 16IR14UN-B AH725 Internal Threading Insert | 14 TPI UN Carbide
Tungaloy 16IR 1.0ISO-B AH725 Internal Threading Carbide Insert (10pcs)
Tungaloy 16ER 2.5ISO-B AH725 External Threading Carbide Insert (10pcs)
Tungaloy 16ER 2.0ISO-B AH725 External Threading Carbide Insert (10pcs)
Tungaloy 16ER 16W-B AH725 External Whitworth Threading Carbide Insert (10pcs)
Tungaloy 16ER 1.5ISO-B AH725 External Threading Carbide Insert (10pcs)
Tungaloy 11IR05ISO-B AH725 Internal Threading Insert for ISO Metric Threads
Tungaloy 16ER 1.0ISO-B AH725 External Threading Carbide Insert (10pcs)
Tungaloy 16ER 11W-B AH725 External Whitworth Threading Carbide Insert (10pcs)
Tungaloy 16ER 0.75ISO-B AH725 External Threading Carbide Insert (10pcs)
Tungaloy 11IR 2.0ISO-B AH725 Internal Threading Carbide Insert (10pcs)
Tungaloy 11IR 1.5ISO-B AH725 Internal Threading Carbide Insert (10pcs)
Tungaloy 11IR 0.5ISO-B AH725 Internal Threading Carbide Insert (10pcs)
22IR50ISO AH725 (10pcs)
22IR40ISO AH725 (10pcs)
16IRG60-B AH725 (10pcs)
Tungaloy 16IR 3.0ISO-B AH725 Internal Threading Carbide Insert (10pcs)
Tungaloy 16IR 2.5ISO-B AH725 Internal Threading Carbide Insert (10pcs)
Tungaloy 16IR 16W-B AH725 Internal Whitworth Threading Carbide Insert (10pcs)
Tungaloy 16IR 14W-B AH725 Internal Whitworth Threading Carbide Insert (10pcs)
Tungaloy 16IR 11W-B AH725 Internal Whitworth Threading Carbide Insert (10pcs)
Tungaloy 16ER 3.0ISO-B AH725 External Threading Carbide Insert (10pcs)
Tungaloy 16ER 19W-B AH725 External Whitworth Threading Carbide Insert (10pcs)
Threading Inserts 11IRA60-B AH725 (10pcs) - High-Performance Internal Threading for Steel and Stainless Steel
Tungaloy 11IR 1.75ISO-B AH725 Internal Threading Carbide Insert (10pcs)
Tungaloy 11IR 1.0ISO-B AH725 Internal Threading Carbide Insert (10pcs)
About Tungaloy Threading Inserts (TungThread Series)
Tungaloy threading inserts are precision-engineered carbide tools for external and internal CNC threading on lathes. The TungThread family is the workhorse threading line, with full-profile and partial-profile chip-breaker geometries covering ISO Metric, American UN, NPT pipe, Whitworth (BSW/BSP), ACME, and Trapezoidal thread standards. Tungaloy's 16ER/16IR series (9.525mm IC) is the most popular threading insert globally, with AH725 PVD grade optimized for stainless steel and high-temperature alloys.
Every Tungaloy threading insert on this page is genuine OEM product from Tungaloy Corporation (Japan, est. 1929, part of IMC Group), shipped with full lot traceability. CNCHome-Beyond is an authorized Tungaloy distributor; orders placed before 3 PM China time ship same-day from our Hangzhou warehouse with DHL/UPS/FedEx express delivery in 3-7 business days.
Tungaloy Threading Series at a Glance
| Series | IC Size | Pitch Range | Type | Best For |
|---|---|---|---|---|
| 11ER/11IR | 6.35 mm (1/4") | 0.5-2.0 mm | Small diameter | M3-M8 small fasteners, watch components, micro threading |
| 16ER/16IR | 9.525 mm (3/8") | 0.75-3.0 mm | Most common | M10-M30 general purpose, 90% of all threading applications |
| 22IR | 12.7 mm (1/2") | 3.0-6.0 mm | Large diameter | M30+ large fasteners, lead screws, ACME |
| 11IRA60 | 6.35 mm (1/4") | ACME profile | Full profile ACME | ACME lead screws in small sizes |
| 16IRG60 | 9.525 mm (3/8") | Full 60° | Full profile 60° | Generic 60° threads (any standard) |
Need to compare with other brand geometries? See our complete Insert Grade Cross-Reference Tool and SKU Cross-Reference for direct equivalents between Tungaloy, Sandvik, Kennametal, Iscar, Walter, and SECO.
Popular Tungaloy Threading Grades
| Grade | Coating / Material | Workpiece | Recommended Speed | Best For Series |
|---|---|---|---|---|
| AH725 | PVD TiAlN nano-laminate | Stainless (M15-M30), high-temp alloys, steel | 80-180 m/min | 16ER, 16IR, 11IR, 22IR (most threading) |
| T9125 | CVD TiCN/Al2O3 | Steel (P10-P25) | 120-200 m/min | Steel threading at high speed |
Tip: Most Tungaloy threading in this collection is AH725 grade, the premium PVD grade for stainless steel. For high-volume steel threading, consider T9125. Use our Speeds & Feeds Calculator to dial in the exact cutting parameters for your specific grade and workpiece.
How to Choose a Tungaloy Threading Insert
Step 1: Identify the thread profile and standard. Most applications are ISO Metric (M-coarse/M-fine). Other standards: UN/UNF (American), NPT/NPTF (pipe taper), BSW/BSP (Whitworth British), ACME, Trapezoidal. The 16ER/16IR series covers ISO + UN + Whitworth; 11IRA60 covers ACME; 16IRG60 covers generic 60°.
Step 2: Match the IC size to the thread. Small threads (M3-M8) → 11ER/11IR (6.35mm IC). Medium threads (M10-M30, the most common) → 16ER/16IR (9.525mm IC). Large threads (M30+, ACME, lead screws) → 22IR (12.7mm IC).
Step 3: Match external or internal. External threading (most common) → ER series. Internal threading (ID threads) → IR series. Internal requires boring bar with internal coolant.
Step 4: Match the holder. Tungaloy threading fits the J-type / D-type / M-type / P-type tool holder series. CNCHome-Beyond carries compatible aftermarket holders at 30-50% below OEM — see our turning tool holder guide and Insert Holder Selector.
Compatible Tool Holders
Tungaloy threading inserts fit the following CNCHome-Beyond tool holder families:
- External Threading Holders — for ER-series inserts (external threading)
- Internal Threading Holders — for IR-series inserts (internal threading)
- Screw-Clamp Boring Bars — for deep ID threading
- Multi-Lock Boring Bars — for general ID threading
Need help matching inserts to holders? Use our Insert Holder Selector Tool for a guided 3-step match.
Cross-Brand Equivalents
Tungaloy threading geometries are dimensionally interchangeable with other major brands. Direct equivalents:
| Tungaloy | Mitsubishi | Sandvik | Kennametal | Iscar |
|---|---|---|---|---|
| 16ER 1.5ISO | 16ER 1.5ISO | R166.0G-1.5ISO | KNUX 16 4ER 1.5ISO | 16ER 1.5ISO |
| 16IR 1.5ISO | 16IR 1.5ISO | R166.0L-1.5ISO | KNUX 16 4IR 1.5ISO | 16IR 1.5ISO |
| 22ER / 22IR | 22ER / 22IR | R266.0G / R266.0L | 22ER / 22IR | 22ER / 22IR |
Looking for a Sandvik or Walter equivalent at lower cost? See our best-selling threading inserts across all brands, or use the cross-reference tool for grade-to-grade equivalents.
Featured Bestsellers (6)
Tungaloy 16ER / 16IR ISO Metric Series — Workhorse
The 16ER/16IR series is the most popular threading insert globally. 9.525mm IC, full-profile chip-breaker, covers ISO Metric 0.75-3.0mm pitch (M10-M30). AH725 PVD grade is the workhorse for stainless and high-temp alloys.
- Tungaloy 16ER 1.5ISO-B AH725 External Threading Carbide Insert - 1.5mm pitch, external
- Tungaloy 16IR 1.5ISO-B AH725 Internal Threading Carbide Insert - 1.5mm pitch, internal
Tungaloy 16W Series — Whitworth British Threads
The 16W series covers BSW (British Standard Whitworth) and BSP (British Standard Pipe) threads, still used in legacy machinery, plumbing fittings, and vintage automotive/industrial equipment. AH725 PVD grade for stainless and steel.
- Tungaloy 16ER 16W-B AH725 External Whitworth Threading Carbide Insert - 16 TPI Whitworth external
- Tungaloy 16IR 16W-B AH725 Internal Whitworth Threading Carbide Insert - 16 TPI Whitworth internal
Tungaloy 11IR Series — Small Diameter Threading
The 11IR series (6.35mm IC) handles small pitch threading from M3 to M8, used in electronics, watchmaking, and small precision parts. AH725 PVD grade for stainless and steel.
- Tungaloy 11IR 1.0ISO-B AH725 Internal Threading Carbide Insert - 1.0mm pitch, small diameter internal
Tungaloy 22IR Series — Large Diameter Threading
The 22IR series (12.7mm IC) handles large pitch threading from M30 to M50+, used in heavy fasteners, lead screws, and ACME threads. AH725 PVD grade for stainless and steel.
- 22IR50ISO AH725 - 5.0mm pitch, large diameter internal
Frequently Asked Questions
What is the difference between 16ER and 16IR threading inserts?
16ER is the external threading version (used on the outside of a workpiece, mounted on the lathe turret). 16IR is the internal threading version (used to cut threads on the inside of a pre-bored hole, mounted on a boring bar with internal coolant). Both have 9.525mm IC and use the same AH725 grade — the only difference is the geometry orientation (ER for outside, IR for inside).
What thread profiles does Tungaloy 16ER/16IR cover?
The 16ER/16IR series covers: ISO Metric (M-coarse and M-fine), UN/UNF (American National), Whitworth BSW/BSP (British Standard), and partial-profile generic 60°. For ACME threads, use the dedicated 11IRA60 series. For Trapezoidal threads, source separately — contact us for quote.
What is the difference between partial-profile and full-profile threading inserts?
Full-profile inserts (e.g., 16ER 1.5ISO-B) cut the entire thread profile in a single pass — but each insert covers only one specific pitch. Partial-profile inserts (e.g., 16ER G60) cut thread profile segments and can cover a range of pitches by varying the infeed angle — but require multiple passes to complete the thread. For high-volume production, full-profile is faster; for low-volume / wide-pitch range, partial-profile is more flexible.
What is the equivalent of Tungaloy 16ER 1.5ISO in other brands?
Tungaloy 16ER 1.5ISO is a full-profile 1.5mm pitch external ISO Metric threading insert with 9.525mm IC. Direct equivalents include: Mitsubishi MTER16-1.5ISO-B, Sandvik R166.0G-1.5ISO, Kennametal KNUX 16 4ER 1.5ISO, Iscar 16ER 1.5ISO, Walter LT16 ER 1.5ISO. All are dimensionally interchangeable on standard ER-style threading tool holders. For grade cross-reference, see our Insert Grade Cross-Reference Tool.
What is the difference between 11IR and 16IR for internal threading?
11IR has 6.35mm IC (1/4") and handles M3-M8 small diameter internal threading. 16IR has 9.525mm IC (3/8") and handles M10-M30 medium diameter internal threading. Choose 11IR when the bore diameter is too small to fit a 16IR boring bar (min bore ~12mm for 16IR, ~8mm for 11IR).
What is the minimum order quantity for Tungaloy threading inserts?
Sample orders start at 1 piece for grade validation. Standard production orders are 10-50 pieces per item. Bulk pricing tiers: 2-9 pieces 6% off, 10+ pieces 12% off (auto-applied at checkout). For custom thread profiles not in our standard catalog, MOQ is 200 pieces with 8-10 week lead time from Tungaloy Japan. See our warranty and return policy for details on grade validation samples.
Related Tungaloy Collections
Order Tungaloy Threading Inserts or Request a Quote
Need a thread profile or pitch not in our standard catalog? Send us a part number, grade spec, and quantity — we will return a formal quote within 24 hours. Custom Tungaloy thread profiles available on 8-10 week lead time.
CNCHome-Beyond — Authorized Tungaloy Distributor. Genuine OEM product, full lot traceability, same-day dispatch from Hangzhou for orders placed before 3 PM China time.
Want to know more about Tungaloy thread profiles, grades, or chip-breaker selection? Read our CNC tooling knowledge base or check the complete cross-reference tool for grade-to-grade equivalents.
