BEYOND S25S-SVZBR16 Boring Bar | CNC Internal Turning Tool Holder
$33.16 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The carbide insert shown in the product images is for spatial demonstration and application profiling context only. Indexable turning inserts are NOT included with the tool...
BEYOND S32T-SVZBR16 Boring Bar | 32mm Internal Lathe Turning Tool Holder
$56.44 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S25S-SVZBR11 Internal Boring Bar 25mm Shank 250mm Length Screw Clamped Right Hand 72.5-Degree VBMT 1103 Lathe Turning Tool Holder
$33.16 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric clearance,...

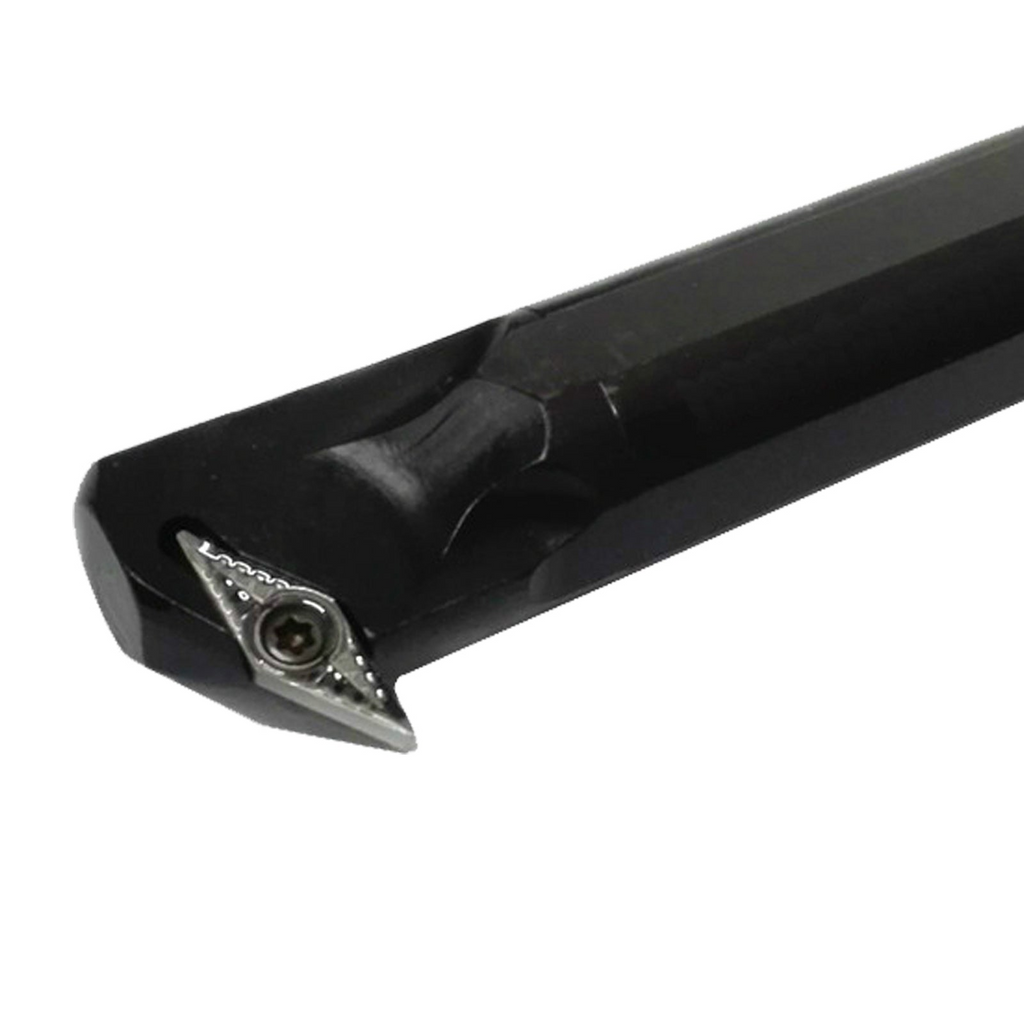

BEYOND S20R-SVZBR11 Boring Bar | 20mm Internal Lathe Turning Tool Holder
$21.90 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S16Q-SVZBR11 Boring Bar | 16mm Internal Lathe Turning Tool Holder
$18.52 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND SVZBR/SVZBL Boring Bars – Steel Shank CNC Tool Holders
High-precision steel shank boring bars from BEYOND, featuring screw-on clamping for secure VBGT insert installation. Designed for CNC turning operations, offering reliable performance and durability.
Specifications
| Model | Type of Bar | Bar Diameter (mm) | Bar Length (mm) | Clamping Method | Insert Shape | Cutting Edge Angle | Insert Relief Angle | Hand of Tool | Insert Cutting Edge Length (mm) | Compatible Insert |
|---|---|---|---|---|---|---|---|---|---|---|
| S16Q-SVZBR11 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 93° (Z) | 5° Positive (B) | R | 11 | VBGT11 |
| S16Q-SVZBL11 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 93° (Z) | 5° Positive (B) | L | 11 | VBGT11 |
| S20R-SVZBR11 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 93° (Z) | 5° Positive (B) | R | 11 | VBGT11 |
| S20R-SVZBL11 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 93° (Z) | 5° Positive (B) | L | 11 | VBGT11 |
| S25S-SVZBR11 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 93° (Z) | 5° Positive (B) | R | 11 | VBGT11 |
| S25S-SVZBL11 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 93° (Z) | 5° Positive (B) | L | 11 | VBGT11 |
| S25S-SVZBR16 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 93° (Z) | 5° Positive (B) | R | 16 | VBGT16 |
| S25S-SVZBL16 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 93° (Z) | 5° Positive (B) | L | 16 | VBGT16 |
| S32T-SVZBR16 | Steel Shank | 32 | 300 | Screw Only | V (35° Diamond) | 93° (Z) | 5° Positive (B) | R | 16 | VBGT16 |
| S32T-SVZBL16 | Steel Shank | 32 | 300 | Screw Only | V (35° Diamond) | 93° (Z) | 5° Positive (B) | L | 16 | VBGT16 |
| S40T-SVZBR16 | Steel Shank | 40 | 300 | Screw Only | V (35° Diamond) | 93° (Z) | 5° Positive (B) | R | 16 | VBGT16 |
| S40T-SVZBL16 | Steel Shank | 40 | 300 | Screw Only | V (35° Diamond) | 93° (Z) | 5° Positive (B) | L | 16 | VBGT16 |
Features
- Steel shank for rigidity and stability in CNC turning.
- Screw-on clamping for secure VBGT insert installation.
- Multiple diameters and lengths for versatile machining applications.
- Positive relief angle ensures smooth cutting and extended tool life.
- Compatible with VBGT inserts (last two digits indicate cutting edge length).
Applications
Suitable for precision CNC turning and boring on steel, cast iron, alloy steel, and stainless steel. Ideal for industrial machining centers and CNC lathes.
Brand
BEYOND – Professional CNC Tool Holder Manufacturer
