Beyond SCGCR2525M12 Right Hand Indexable Turning Tool Holder 25x25mm
$33.16 USD
⚠️ IMPORTANT APPLICATION NOTICE: The carbide insert shown installed on this tool holder is for structural visualization only. All indexable cutting inserts are sold separately. BEYOND SCGCR2525M12 Right-Hand Indexable Turning...
Beyond SCGCR2525M09 Right Hand Indexable Turning Tool Holder 25x25mm Shank
$33.16 USD
⚠️ TECHNICAL APPLICATION NOTICE: The indexable carbide cutting insert shown in product photography is strictly for mounting and architectural visualization. All carbide inserts are sold separately. BEYOND SCGCR2525M09 Right-Hand Indexable...
Beyond SCGCR1616H09 Right Hand Indexable Turning Tool Holder 16x16mm Shank
$19.61 USD
⚠️ MACHINING PRODUCTION NOTICE: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual demonstration only. All inserts are sold separately. BEYOND SCGCR1616H09 Right-Hand Indexable Turning...
Beyond SCGCL2525M12 Left Hand Indexable Turning Tool Holder 25x25mm
$33.16 USD
⚠️ TECHNICAL NOTICE: The carbide insert shown installed on the toolholder is for visual demonstration purposes only. All indexable cutting inserts are sold separately. BEYOND SCGCL2525M12 Left-Hand Indexable Turning Tool...

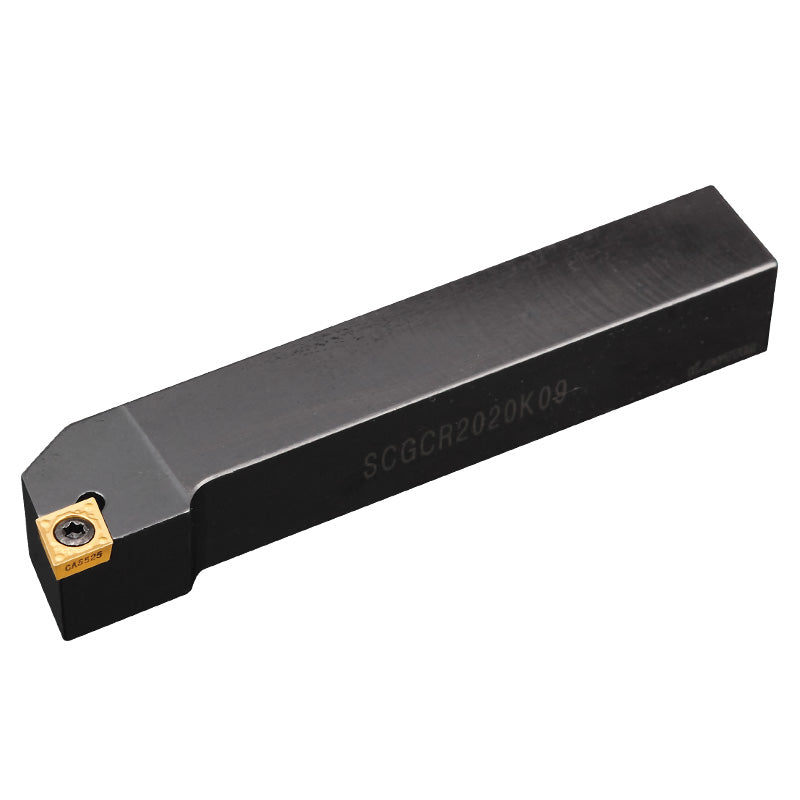

Beyond SCGCR2020K09 Right Hand Indexable Turning Tool Holder 20x20mm Shank
$22.83 USD
⚠️ TECHNICAL NOTICE FOR TOOLROOM OPERATORS: The indexable carbide cutting insert shown mounted in the product imagery is for architectural visualization only. All cutting inserts must be purchased separately. BEYOND...
BEYOND SCGCR1212H09 Right-Hand Indexable Turning Tool Holder for CCMT 09T3
$14.67 USD
⚠️ Important Tooling Notice: The carbide turning insert shown installed in our product photography is for visual demonstration purposes only. This indexable tool holder is sold standalone; cutting inserts are...
Beyond SCGCL2020K09 Left Hand Indexable Turning Tool Holder 20x20mm Shank
$22.83 USD
⚠️ IMPORTANT ADVISORY: The carbide insert displayed mounted within the tool pocket is for illustration purposes only. Indexable cutting inserts must be ordered separately. BEYOND SCGCL2020K09 Left-Hand Indexable Turning Tool...
Beyond SCGCL2525M09 Left Hand Indexable Turning Tool Holder 25x25mm
$33.16 USD
⚠️ IMPORTANT APPLICATION NOTICE: The indexable carbide insert shown installed on this tool holder is for structural visualization only. All cutting inserts are sold separately. BEYOND SCGCL2525M09 Left-Hand Indexable Turning...
BEYOND SCGCR / SCGCL CNC External Turning Tool Holders
The SCGCR and SCGCL series external turning tool holders use a reliable screw-clamp system, designed according to ISO standards for CCMT/CCGT inserts. These holders provide excellent stability, chip evacuation and cutting accuracy when machining steel, stainless steel, cast iron, and alloy materials.
ISO Code Definition
- 1st Letter – S: Screw Clamp Clamping Method
- 2nd Letter – C: Insert Shape (80° Diamond – CC.. inserts)
- 3rd Letter – G: External Turning Holder Style
- 4th Letter – C: 7° Positive Insert Clearance Angle
- 5th Letter – R/L: Toolholder Hand (Right / Left)
- Next Two Numbers: Shank Height (mm)
- Next Two Numbers: Shank Width (mm)
- Following Letter: Holder Length (H/K/M type)
- Last Two Numbers: Insert Cutting Edge Length (compatible insert size)
Available Models & Full Technical Specifications
| Model | Clamping Method | Insert Shape | Holder Style | Clearance Angle | Hand | Shank Height (mm) | Shank Width (mm) | Holder Length Type | Insert Cutting Edge Length | Compatible Insert |
|---|---|---|---|---|---|---|---|---|---|---|
| SCGCR1212H09 | Screw Clamp | 80° Diamond | External Turning | 7° Positive | Right | 12 | 12 | H | 09 | CC..09T3.. |
| SCGCL1212F09 | Screw Clamp | 80° Diamond | External Turning | 7° Positive | Left | 12 | 12 | F | 09 | CC..09T3.. |
| SCGCR1616H09 | Screw Clamp | 80° Diamond | External Turning | 7° Positive | Right | 16 | 16 | H | 09 | CC..09T3.. |
| SCGCR2020K09 | Screw Clamp | 80° Diamond | External Turning | 7° Positive | Right | 20 | 20 | K | 09 | CC..09T3.. |
| SCGCL2020K09 | Screw Clamp | 80° Diamond | External Turning | 7° Positive | Left | 20 | 20 | K | 09 | CC..09T3.. |
| SCGCR2525M09 | Screw Clamp | 80° Diamond | External Turning | 7° Positive | Right | 25 | 25 | M | 09 | CC..09T3.. |
| SCGCL2525M09 | Screw Clamp | 80° Diamond | External Turning | 7° Positive | Left | 25 | 25 | M | 09 | CC..09T3.. |
| SCGCR2020K12 | Screw Clamp | 80° Diamond | External Turning | 7° Positive | Right | 20 | 20 | K | 12 | CC..1204.. |
| SCGCL2020K12 | Screw Clamp | 80° Diamond | External Turning | 7° Positive | Left | 20 | 20 | K | 12 | CC..1204.. |
| SCGCR2525M12 | Screw Clamp | 80° Diamond | External Turning | 7° Positive | Right | 25 | 25 | M | 12 | CC..1204.. |
| SCGCL2525M12 | Screw Clamp | 80° Diamond | External Turning | 7° Positive | Left | 25 | 25 | M | 12 | CC..1204.. |
Key Features
- Strong screw-clamp locking for improved rigidity
- ISO-standard dimensions compatible with CCMT/CCGT inserts
- Optimized for external turning on CNC lathes
- Precision ground shank for perfect m
