Sort by:

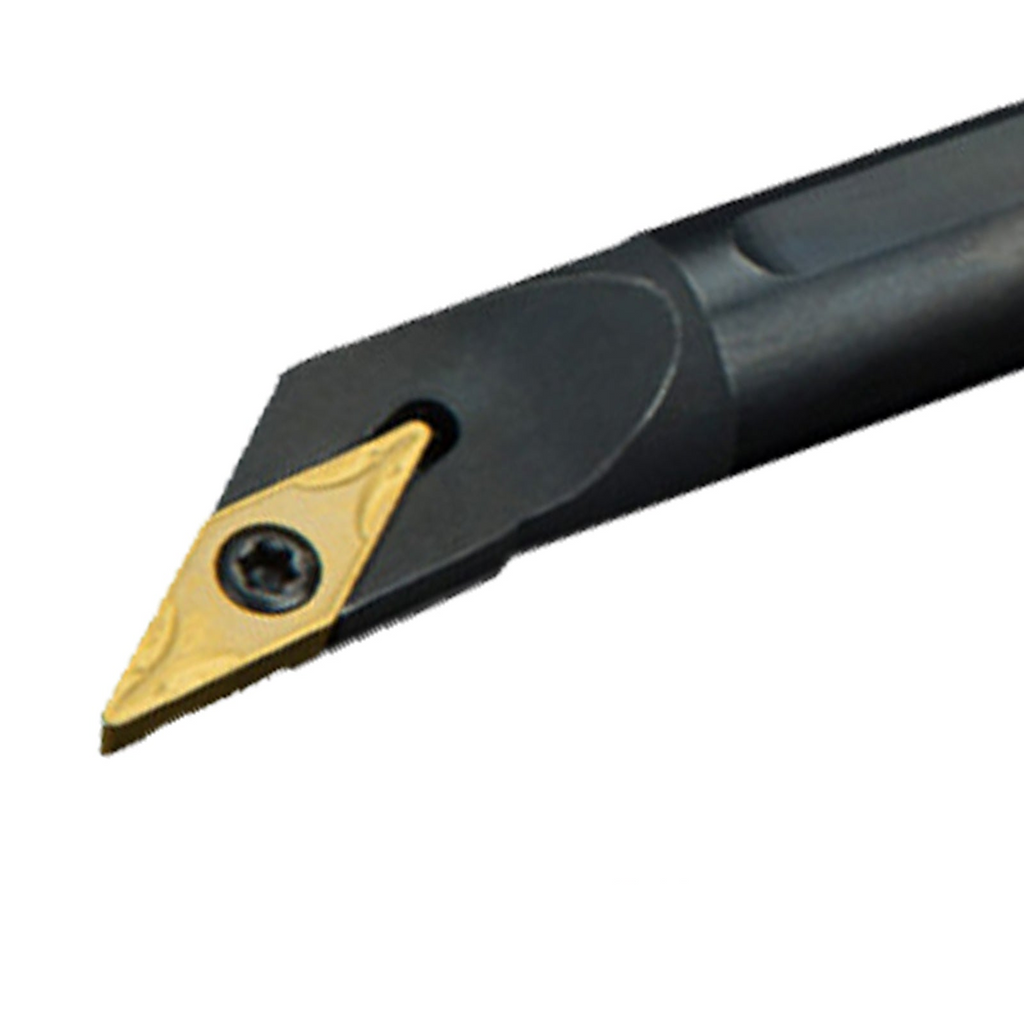

BEYOND S25S-SVXBR16 Boring Bar | CNC Internal Turning Tool Holder
$33.16 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The carbide insert shown mounted on the boring bar in product images is for spatial demonstration and application profiling context only. Indexable turning inserts are NOT...
BEYOND S25S-SVXBL16 Boring Bar | CNC Internal Turning Tool Holder
$33.16 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S32T-SVXBR16 Boring Bar | 32mm Internal Lathe Tool Holder
$55.19 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S32T-SVXBL16 Boring Bar | 32mm Internal Lathe Tool Holder
$55.19 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S20R-SVXBR11 Boring Bar | 20mm Right Hand Lathe Tool Holder
$21.90 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S20R-SVXBL11 Boring Bar | 20mm Left Hand Lathe Tool Holder
$21.90 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S16Q-SVXBL16 Boring Bar | 16mm Internal Lathe Tool Holder
$18.52 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S16Q-SVXBL11 Boring Bar | 16mm Left Hand Lathe Tool Holder
$18.52 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S12M-SVXBR11 Internal Boring Bar 12mm Shank 150mm Length Screw Clamped Right Hand Special Approach Angle VBMT 1103 Lathe Turning Tool Holder
$16.14 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric profiling...
BEYOND S12M-SVXBL11 Boring Bar | 12mm Left Hand Lathe Tool Holder
$16.14 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S10K-SVXBR11 Boring Bar | 10mm Right Hand Lathe Tool Holder
$14.85 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S10K-SVXBL11 Boring Bar | 10mm Left Hand Lathe Tool Holder
$14.85 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S20R-SVXBR16 Boring Bar | 20mm Internal Lathe Tool Holder
$21.90 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S20R-SVXBL16 Boring Bar | 20mm Internal Lathe Tool Holder
$21.90 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S16Q-SVXBR16 Boring Bar | 16mm Internal Lathe Tool Holder
$18.52 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S16Q-SVXBR11 Boring Bar | 16mm Right Hand Lathe Tool Holder
$18.52 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND SVXBR/SVXBL Boring Bars – Steel Shank CNC Tool Holders
High-precision steel shank boring bars from BEYOND, featuring screw-on clamping for secure VBGT insert installation. Designed for CNC turning operations, offering reliable performance and durability.
Specifications
| Model | Type of Bar | Bar Diameter (mm) | Bar Length (mm) | Clamping Method | Insert Shape | Cutting Edge Angle | Insert Relief Angle | Hand of Tool | Insert Cutting Edge Length (mm) | Compatible Insert |
|---|---|---|---|---|---|---|---|---|---|---|
| S10K-SVXBR11 | Steel Shank | 10 | 125 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 11 | VBGT11 |
| S10K-SVXBL11 | Steel Shank | 10 | 125 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 11 | VBGT11 |
| S12M-SVXBR11 | Steel Shank | 12 | 150 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 11 | VBGT11 |
| S12M-SVXBL11 | Steel Shank | 12 | 150 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 11 | VBGT11 |
| S16Q-SVXBR11 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 11 | VBGT11 |
| S16Q-SVXBL11 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 11 | VBGT11 |
| S20R-SVXBR11 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 11 | VBGT11 |
| S20R-SVXBL11 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 11 | VBGT11 |
| S16Q-SVXBR16 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 16 | VBGT16 |
| S16Q-SVXBL16 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 16 | VBGT16 |
| S20R-SVXBR16 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 16 | VBGT16 |
| S20R-SVXBL16 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 16 | VBGT16 |
| S25S-SVXBR16 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 16 | VBGT16 |
| S25S-SVXBL16 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 16 | VBGT16 |
| S32T-SVXBR16 | Steel Shank | 32 | 300 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 16 | VBGT16 |
| S32T-SVXBL16 | Steel Shank | 32 | 300 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 16 | VBGT16 |
| S40T-SVXBR16 | Steel Shank | 40 | 300 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 16 | VBGT16 |
| S40T-SVXBL16 | Steel Shank | 40 | 300 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 16 | VBGT16 |
Features
- Steel shank for rigidity and stability in CNC turning.
- Screw-on clamping for secure VBGT insert installation.
- Multiple diameters and lengths for versatile machining applications.
- Positive relief angle ensures smooth cutting and extended tool life.
- Compatible with VBGT inserts (last two digits indicate cutting edge length).
Applications
Suitable for precision CNC turning and boring on steel, cast iron, alloy steel, and stainless steel. Ideal for industrial machining centers and CNC lathes.
Brand
BEYOND – Professional CNC Tool Holder Manufacturer
