Sort by:
BEYOND SCKCR2020K12 CNC Right-Hand External Turning Tool Holder (20x20mm Shank)
$22.83 USD
⚠️ IMPORTANT PRODUCTION NOTICE: Please note that the carbide insert shown in the product graphics is for structural demonstration and visualization purposes only. Carbide inserts are NOT included in this...
BEYOND SCKCL2020K12 CNC Left-Hand External Turning Tool Holder (20x20mm Shank)
$22.83 USD
⚠️ IMPORTANT PRODUCTION NOTICE: Please note that the carbide insert shown in the product graphics is for structural demonstration and visualization purposes only. Carbide inserts are NOT included in this...
BEYOND SCKCR2525M12 CNC External Turning Tool Holder (25x25mm Shank)
$33.16 USD
⚠️ PLEASE NOTE: The carbide insert shown in product imagery is for demonstration purposes only. Inserts are NOT included with this tool holder. Please purchase matching CCMT1204 / CCGT1204 inserts...
Beyond SCKCR2525M09 Indexable Turning Tool Holder 25x25mm
$33.16 USD
⚠️ Please Note: The carbide insert shown in product images is for demonstration purposes only. Inserts are sold separately. BEYOND SCKCR2525M09 Indexable Turning Tool Holder Heavy-Duty 25x25mm Square Shank |...
BEYOND SCKCR1212H09 Right-Hand Indexable Turning Tool Holder for CCMT 09T3
$14.67 USD
⚠️ Important Tooling Notice: The carbide turning insert shown installed in our product photography is for visual demonstration purposes only. This indexable tool holder is sold standalone; cutting inserts are...
BEYOND SCKCL2525M12 Left-Hand CNC Turning Tool Holder 25x25mm Shank
$33.16 USD
⚠️ IMPORTANT NOTIFICATION FOR PROCUREMENT MANAGERS: The indexable carbide cutting insert shown within our digital application and setup photography is mounted strictly for clearance tracking, rake angle demonstration, and structural...
BEYOND SCKCL2525M09 CNC Left-Hand External Turning Tool Holder (25x25mm Shank)
$33.16 USD
⚠️ IMPORTANT PRODUCTION NOTICE: Please note that the carbide insert shown in the product graphics is for structural demonstration and visualization purposes only. Carbide inserts are NOT included in this...
Beyond SCKCL1212H09 Left Hand Indexable Turning Tool Holder 12x12mm
$16.14 USD
⚠️ TECHNICAL NOTE: The carbide insert shown installed on the toolholder is for visual demonstration purposes only. All indexable cutting inserts are sold separately. BEYOND SCKCL1212H09 Left-Hand Indexable Turning Tool...

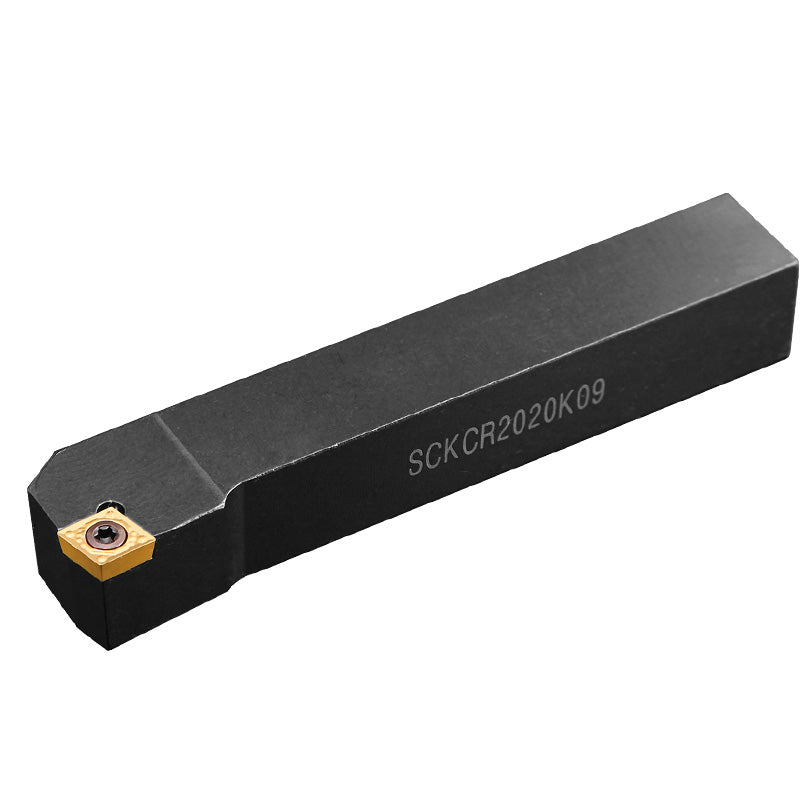

Beyond SCKCR2020K09 Indexable Turning Tool Holder 20x20mm (Right Hand)
$22.83 USD
⚠️ PLEASE NOTE: The carbide insert shown installed on the toolholder is for visual demonstration purposes only. All inserts are sold separately. BEYOND SCKCR2020K09 Indexable Turning Tool Holder Industrial 20x20mm...
Beyond SCKCR1616H09 Indexable Turning Tool Holder 16x16mm (Right Hand)
$19.61 USD
⚠️ PLEASE NOTE: The carbide insert shown installed on the toolholder is for visual demonstration purposes only. All inserts are sold separately. BEYOND SCKCR1616H09 Indexable Turning Tool Holder Industrial 16x16mm...
Beyond SCKCL2020K09 Left Hand Indexable Turning Tool Holder 20x20mm
$22.83 USD
⚠️ IMPORTANT NOTICE: The carbide insert shown installed on the toolholder is for visual demonstration purposes only. All inserts must be ordered separately. BEYOND SCKCL2020K09 Left-Hand Indexable Turning Tool Holder...
Beyond SCKCL1616H09 Left Hand Indexable Turning Tool Holder 16x16mm
$19.61 USD
⚠️ TECHNICAL NOTE: The carbide insert shown installed on the toolholder is for visual demonstration purposes only. All indexable cutting inserts are sold separately. BEYOND SCKCL1616H09 Left-Hand Indexable Turning Tool...
BEYOND SCKCR / SCKCL Screw Clamp External Turning Toolholders
The BEYOND SCKCR and SCKCL toolholders are precision screw-clamp external turning holders designed according to ISO standards. These holders use CC.. (CCMT / CCGT) inserts, derived accurately from ISO coding (2nd letter = C for insert shape, 4th letter = C for 7° positive clearance).
ISO Code Explanation (Fully Correct)
| 1st Letter: S | Screw clamp clamping system |
| 2nd Letter: C | Insert shape – 80° diamond |
| 3rd Letter: K | Holder style / approach angle |
| 4th Letter: C | Clearance angle – 7° positive |
| Insert Series = 2nd + 4th = C + C → CC.. | Uses CCMT / CCGT inserts |
| 5th Letter: R / L | Hand of toolholder (Right / Left) |
| Next 4 digits | Shank height × width (e.g., 2020 = 20 × 20 mm) |
| Length Letter | Holder length code (H / K / M) |
| Final number | Insert cutting-edge length (06 / 09 / 12) |
Compatible Inserts (Correct: CC.. Family)
- CCMT0602 / CCMT06T2 (for 06 holders)
- CCMT09T3 / CCMT0903 (for 09 holders)
- CCMT1204 (for 12 holders)
- CCGT types for aluminum and finishing
Product Specifications
| Model | Hand | Insert Series | Shank Size (H×W) | Holder Length Code | Insert Edge Length |
|---|---|---|---|---|---|
| SCKCL1616H09 | Left | CC..09 | 16 × 16 | H | 09 |
| SCKCR1616H09 | Right | CC..09 | 16 × 16 | H | 09 |
| SCKCL1212H09 | Left | CC..09 | 12 × 12 | H | 09 |
| SCKCR1212H09 | Right | CC..09 | 12 × 12 | H | 09 |
| SCKCR2020K09 | Right | CC..09 | 20 × 20 | K | 09 |
| SCKCL2020K09 | Left | CC..09 | 20 × 20 | K | 09 |
| SCKCR2525M09 | Right | CC..09 | 25 × 25 | M | 09 |
| SCKCL2525M09 | Left | CC..09 | 25 × 25 | M | 09 |
| SCKCL2020K12 | Left | CC..12 | 20 × 20 | K | 12 |
| SCKCR2020K12 | Right | CC..12 | 20 × 20 | K | 12 |
| SCKCL2525M12 | Left | CC..12 | 25 × 25 | M | 12 |
| SCKCR2525M12 | Right | CC..12 | 25 × 25 | M | 12 |
Key Features
- ISO-standard screw-clamp clamping system
- Accurate insert family selection: CCMT/CCGT (CC.. series)
- 7° positive clearance reduces cutting resistance
- Right- and left-hand holders for all turning directions
- Multiple shank sizes: 12, 16, 20, 25 mm
Recommended Insert Grades
| Material | Recommended Inserts |
|---|---|
| Steel (P) | CCMT09T304 / CCMT120404 |
| Stainless Steel (M) | CCMT09T308 / CCMT120408 |
| Cast Iron (K) | CCMT09T302 |
| Aluminum / Non-ferrous | CCGT types |
