Sort by:

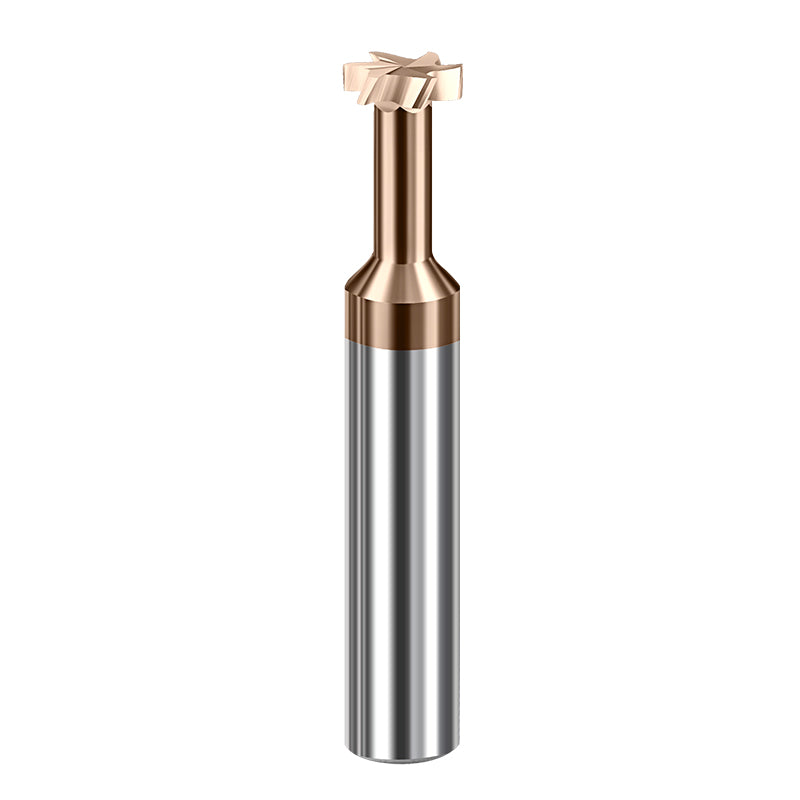

5mm T-Slot Milling Cutter carbide end milll
$69.21 USD
T-Slot Milling Cutter D1 = 5mm The T-Slot Milling Cutter with D1 = 5mm is designed for precision CNC machining, ensuring accurate slotting and smooth performance. Made from high-quality carbide,...
11mm T-Slot Milling Cutter carbide end milll
$162.72 USD
11mm T-Slot Milling Cutter The 11mm T-Slot Milling Cutter is a precision-engineered carbide tool designed for cutting keyways, T-slots, and undercuts on CNC milling machines. With exceptional rigidity and wear...
6mm T-Slot Milling Cutter carbide end milll
$73.17 USD
T-Slot Milling Cutter D1 = 6mm The T-Slot Milling Cutter with D1 = 6mm is engineered for high-precision CNC machining applications. Manufactured from premium carbide, this cutter provides exceptional durability,...

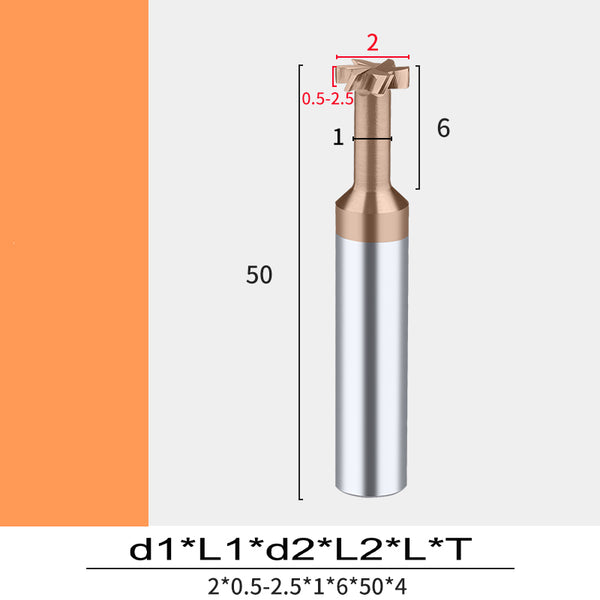

2mm T-Slot Milling Cutter carbide end milll
$53.46 USD
2mm T-Slot Milling Cutter – Carbide CNC Slotting Tool The 2mm T-Slot Milling Cutter is a precision carbide slotting tool designed for CNC machining of keyways, slots, and T-grooves. With...
20mm T-Slot Milling Cutter carbide end milll
$543.78 USD
20mm T-Slot Milling Cutter The 20mm T-Slot Milling Cutter is a high-precision cutting tool designed for machining T-slots, keyways, and precision grooves on CNC milling centers. Manufactured from ultra-fine grain...
16mm T-Slot Milling Cutter carbide end milll
$346.41 USD
16mm T-Slot Milling Cutter The 16mm T-Slot Milling Cutter is designed for precision machining of T-shaped slots and keyways in various materials such as alloy steel, cast iron, and stainless...
14mm T-Slot Milling Cutter carbide end milll
$271.71 USD
14mm T-Slot Milling Cutter The 14mm T-Slot Milling Cutter is a high-performance solid carbide cutter designed for precision CNC machining of T-slots, keyseats, and undercuts. Manufactured from ultra-fine grain carbide...
12mm T-Slot Milling Cutter carbide end milll
$182.34 USD
12mm T-Slot Milling Cutter The 12mm T-Slot Milling Cutter is a precision-engineered solid carbide keyseat cutter designed for professional CNC machining. With exceptional hardness, rigidity, and wear resistance, it ensures...
10mm T-Slot Milling Cutter carbide end milll
$143.52 USD
10mm T-Slot Milling Cutter The 10mm T-Slot Milling Cutter is a high-performance carbide tool designed for machining keyways, T-slots, and undercuts on CNC milling machines. With a precision-ground cutting edge...
8mm T-Slot Milling Cutter carbide end milll
$103.89 USD
T-Slot Milling Cutter D1 = 8mm The T-Slot Milling Cutter with D1 = 8mm is engineered for precision CNC machining, ensuring stable cutting and long-lasting tool performance. Manufactured from solid...
9mm T-Slot Milling Cutter carbide end milll
$127.65 USD
T-Slot Milling Cutter D1 = 9mm The T-Slot Milling Cutter with D1 = 9mm is engineered for high-precision CNC machining and long-lasting performance. Made from premium solid carbide, this milling...
7mm T-Slot Milling Cutter carbide end milll
$94.02 USD
T-Slot Milling Cutter D1 = 7mm The T-Slot Milling Cutter with D1 = 7mm is designed for accurate and efficient CNC machining. Manufactured from premium-grade carbide, this tool ensures long-lasting...
4mm T-Slot Milling Cutter carbide end milll
$63.75 USD
T-Slot Milling Cutter D1 = 4mm The T-Slot Milling Cutter with D1 = 4mm is designed for high-precision CNC machining and fine slotting operations. Manufactured from ultra-hard carbide, this tool...
3mm T-Slot Milling Cutter carbide end milll
$58.83 USD
3mm T-Slot Milling Cutter – Carbide CNC Slotting Tool 3mm T-Slot Milling Cutter Carbide CNC Slotting Tool The 3mm T-Slot Milling Cutter is a premium carbide slotting cutter designed for...
Quick Links — T-Slot Milling Cutters
Carbide T-Slot Milling Cutter (2-20mm · DIN 850)
BEYOND and OYYU brand solid-carbide T-slot milling cutters in 13 standard diameters from 2 mm to 20 mm, each available in 5 tooth-length variants (×1, ×1.5, ×2, ×2.5, ×3). Conforms to DIN 850 / ISO 3337 T-slot profile geometry for machine-tool table slots, fixture T-slots, and clamping-channel machining in steel, stainless steel, alloy steel, and cast iron.
Diameter (D1)
2 - 20 mm
0.1 mm pitch, metric standard
Tooth Length Variants
×1 / ×1.5 / ×2 / ×2.5 / ×3
5 depth ratios per SKU
Material
Solid Tungsten Carbide
Sub-micron grain, TiAlN-coated
Standard
DIN 850 / ISO 3337
T-slot profile geometry
Trusted by small workshops, individual machinists & garage CNC users worldwide
1 piece welcome · WhatsApp reply within 2 hours · 3-7 day global shipping via DHL / UPS / FedEx
1 piece welcome · WhatsApp reply within 2 hours · 3-7 day global shipping via DHL / UPS / FedEx
Why Choose Our T-Slot Milling Cutters
Solid Tungsten Carbide
Sub-micron grain carbide with TiAlN coating — cuts 3× longer than HSS equivalents at the same Vc, with sharper T-slot profile walls and longer edge retention.
DIN 850 / ISO 3337 Profile
T-slot sidewall angle and bottom radius follow DIN 850 / ISO 3337 standard — drop-in compatible with T8-T36 machine-tool table slots.
5 Tooth Lengths per SKU
Every diameter ships in ×1 / ×1.5 / ×2 / ×2.5 / ×3 tooth-length variants — match slot depth without buying separate cutters.
Sharp Sidewall Finish
Ground peripheral teeth and bottom geometry leave a clean slot wall — minimal deburring, no secondary hand-deburring pass on the T-slot shoulder.
T-Slot Profile Standards (DIN 850)
The T-slot profile on your workpiece must match a standardized dimension for the cutter to seat correctly. DIN 850 defines the most common T-slot table dimensions used on milling-machine beds, fixture plates, and clamping elements. Our cutters are ground to match the slot width (T-slot nominal) and produce the sidewall angle and bottom relief per ISO 3337.
| T-Slot Nominal (a × b) | Cutter D1 (mm) | Bolt Size | Typical Workpiece |
|---|---|---|---|
| T8 (8 × 15) | 8 | M6 | Small fixturing, gauge blocks |
| T10 (10 × 18) | 10 | M8 | Standard milling-machine tables |
| T12 (12 × 22) | 12 | M10 | Medium-duty machine beds |
| T14 (14 × 25) | 14 | M12 | Fixture plates, clamping rails |
| T16 (16 × 28) | 16 | M14 | Large machine-tool tables |
| T18 (18 × 32) | 18* | M16 | Heavy-duty fixturing |
| T20 (20 × 36) | 20 | M18 | Industrial machine beds |
| T22 (22 × 40) | 22* | M20 | Large press beds |
| T24 (24 × 45) | 24* | M22 | Custom heavy machinery |
| T28 (28 × 50) | 28* | M24 | Extra-large fixturing |
| T36 (36 × 60) | 36* | M30 | Press-tool bases |
* Diameters 18 / 22 / 24 / 28 / 36 mm available on request — our stocked range is 2-20 mm. For T-slot cutters in aluminum-specific geometries, see our aluminum T-slot milling cutter collection.
Size Selection Guide (2-20mm)
All standard sizes ship within 24 hours from our Hangzhou warehouse. Pick by cutter diameter (D1) — that value equals the T-slot nominal width your slot must match. View any individual size below:
| Cutter D1 | Typical T-Slot | Common Workpiece | View |
|---|---|---|---|
| 2 mm | Specialty / micro-fixturing | Jewellery fixtures, watch tooling | 2mm version |
| 3 mm | Micro fixture slots | Small clamps, precision tooling | 3mm version |
| 4 mm | Light fixturing | Electronics fixtures, PCB tooling | 4mm version |
| 5 mm | Compact clamping | Small lathe / mill tables | 5mm version |
| 6 mm | Light-duty clamping | Tabletop mills, hobby tables | 6mm version |
| 7 mm | Mid-light clamping | Small fixture plates | 7mm version |
| 8 mm | T8 standard | Mill tables, small fixtures | 8mm version |
| 9 mm | Mid clamping | General fixturing | 9mm version |
| 10 mm | T10 standard | Standard milling-machine tables | 10mm version |
| 11 mm | Mid-heavy clamping | Heavy fixture plates | 11mm version |
| 12 mm | T12 standard | Medium-duty machine beds | 12mm version |
| 14 mm | T14 standard | Clamping rails, fixture plates | 14mm version |
| 16 mm | T16 standard | Large machine-tool tables | 16mm version |
| 20 mm | T20 standard | Industrial machine beds | 20mm version |
5 Tooth Length Variants per Diameter
Every diameter ships in 5 tooth-length variants — measured as the cutter's cutting-depth ratio relative to D1. Pick the variant that gives at least 1 mm of cutter clearance past the bottom of your T-slot. All 5 variants are priced the same per SKU, so you can hold one of each in your drawer and stop swapping cutters between jobs.
| Variant | Cutting Depth | Use When |
|---|---|---|
| ×1 | 1.0 × D1 | Standard slot — matches most T-slot profile depths. |
| ×1.5 | 1.5 × D1 | Deeper T-slots where standard ×1 is too shallow. |
| ×2 | 2.0 × D1 | Deep slots, extended fixture channels. |
| ×2.5 | 2.5 × D1 | Heavy-duty slotting, large fixture plates. |
| ×3 | 3.0 × D1 | Maximum depth for oversized T-slot profiles. |
Recommended Cutting Parameters
Starting parameters for solid-carbide T-slot cutters in TiAlN-coated grade. Adjust Vc down 20% for stainless steel or interrupted cuts. Use coolant (flood or MQL) for any cut deeper than 1 × D1.
| Workpiece Material | Vc (m/min) | fz per tooth (mm) | ap (pass depth) | Coolant |
|---|---|---|---|---|
| Mild Steel (S235 / 1018) | 80 - 120 | 0.03 - 0.06 | 0.5 × D1 | Flood or MQL |
| Alloy Steel (4140 / 42CrMo) | 60 - 90 | 0.025 - 0.05 | 0.4 × D1 | Flood |
| Stainless Steel (304 / 316) | 40 - 70 | 0.02 - 0.04 | 0.3 × D1 | Flood (mandatory) |
| Cast Iron (GG25 / GGG40) | 70 - 100 | 0.04 - 0.08 | 0.5 × D1 | Dry or MQL |
| Aluminum (6061 / 7075) | 150 - 250 | 0.05 - 0.10 | 1.0 × D1 | MQL or flood |
For aluminum-specific T-slot geometries with polished flutes and no-chip-recass, see the aluminum T-slot cutter collection. For drilling companion cutters, browse carbide drill bits or 12D extra-long carbide drill bits.
For Individual Buyers & Small Workshops
Single-piece orders welcome — no MOQ, no bulk-buy requirement. We ship to home addresses, garage workshops, and small machine shops in 50+ countries. Every order ships from our Hangcheng warehouse with DHL / UPS / FedEx tracking provided.
Volume Discount
2-9 pieces: 6% OFF · 10+ pieces: 12% OFF · Mix-and-match across all diameters in one cart.
3-7 Day Global Shipping
DHL / UPS / FedEx express to 50+ countries · Tracked door-to-door · Most orders ship within 24 hours from order.
WhatsApp Quote in 2 min
Send your D1 + tooth length + workpiece material · Real human reply within 2 hours (UTC+8 working hours) · No chatbot, no call-center queue.
Built for Small-Shop Buyers
Hobby machinists · Garage CNC users · Small fixture shops · Watch / jewellery tooling makers · Trade-school students.
T-Slot Cutter vs Side Mill vs End Mill
Each tool is engineered for a different slot geometry. Choosing the wrong one wastes time on secondary hand-deburring or produces a slot that doesn't seat standard T-nuts. Here's when to reach for which:
| Operation | Reach For | Why |
|---|---|---|
| Standard T-slot profile (DIN 850) | T-slot cutter | Ground to match T-slot nominal width + sidewall angle in a single pass. |
| Open-ended slot (no closure) | Side mill or end mill | Open slot allows chip evacuation without T-slot profile. |
| Closed slot / keyway | End mill + keyway cutter | Slot must be plunge-cut, then opened with side mill. |
| Profile sidewall (free-form) | End mill or profile mill | 2D or 3D contour with full cutter engagement. |
| Heavy stock removal in slot | Face mill + side mill | Faster MRR for rough opening before T-slot profile pass. |
Browse corn-milling cutters for profile work, face-milling cutter series for surface facing, or chamfering cutters for edge-breaking after T-slot cutting.
Related BEYOND & OYYU Cutters
Aluminum T-Slot Cutters
Polished flutes, no-chip-recess, for non-ferrous materials.
Best Sellers
Top-rated cutters across the BEYOND / OYYU range.
All BEYOND Products
Browse the full BEYOND brand catalogue.
Chamfering Cutters
45° / 60° edge-breaking after slot cutting.
Corn-Milling Cutters
Profile sidewall milling for T-slot side finish.
Face-Milling Cutters
Surface facing before T-slot profiling.
12D Extra-Long Drills
Deep-hole drilling companion to T-slot work.
Carbide Drill Bits
All carbide drill bits for fixture plate prep.
HRC60 5D Carbide Drill
Hardened-steel drilling for fixture plates.
HRC65 8D Carbide Drill
Internal coolant for hardened-steel deep holes.
A/B Type Center Drills
DIN 333 center drilling before T-slot bolt holes.
3D Carbide Drill Bits
3×D standard-length carbide drill for fixture work.
Holder Accessories
Wrenches, screws, and clamping elements.
CNC Knowledge Base
Buyer guides, grade comparisons, cutting charts.
Frequently Asked Questions
What T-slot standard do these cutters conform to?
All cutters in this range are ground to DIN 850 T-slot profile geometry, cross-referenced with ISO 3337. The cutter diameter (D1) equals the T-slot nominal width (e.g. 10 mm cutter → T10 slot). The sidewall angle and bottom relief match standard machine-tool table slots used on most milling machines.
What carbide grade is used, and is it coated?
Sub-micron grain tungsten carbide (K20-K30 equivalent ISO classification) with a TiAlN (Titanium Aluminium Nitride) coating. TiAlN gives higher hot hardness than plain TiN, allowing higher Vc in steel and stainless steel without rapid edge wear. The coating also reduces built-up edge when cutting aluminum.
Do I need coolant, or can I run these dry?
For steel / stainless steel: flood coolant is mandatory for any cut deeper than 1 × D1, especially the ×2 / ×2.5 / ×3 variants. For cast iron: dry or MQL is fine. For aluminum: MQL or flood both work — MQL gives the best chip evacuation. Without coolant, expect accelerated wear on the sidewall teeth and potential chip welding on the T-slot bottom radius.
