S20R-SWLNR08 Right Tool Holder for CNC Machines - Alloy Steel, 95° Cutting Edge Angle
$21.95 USD
Overview: Optimize your CNC machining with the S20R-SWLNR08 Right Tool Holder. This internal turning tool holder is crafted from durable alloy steel, featuring a 95° cutting edge angle and 0°...

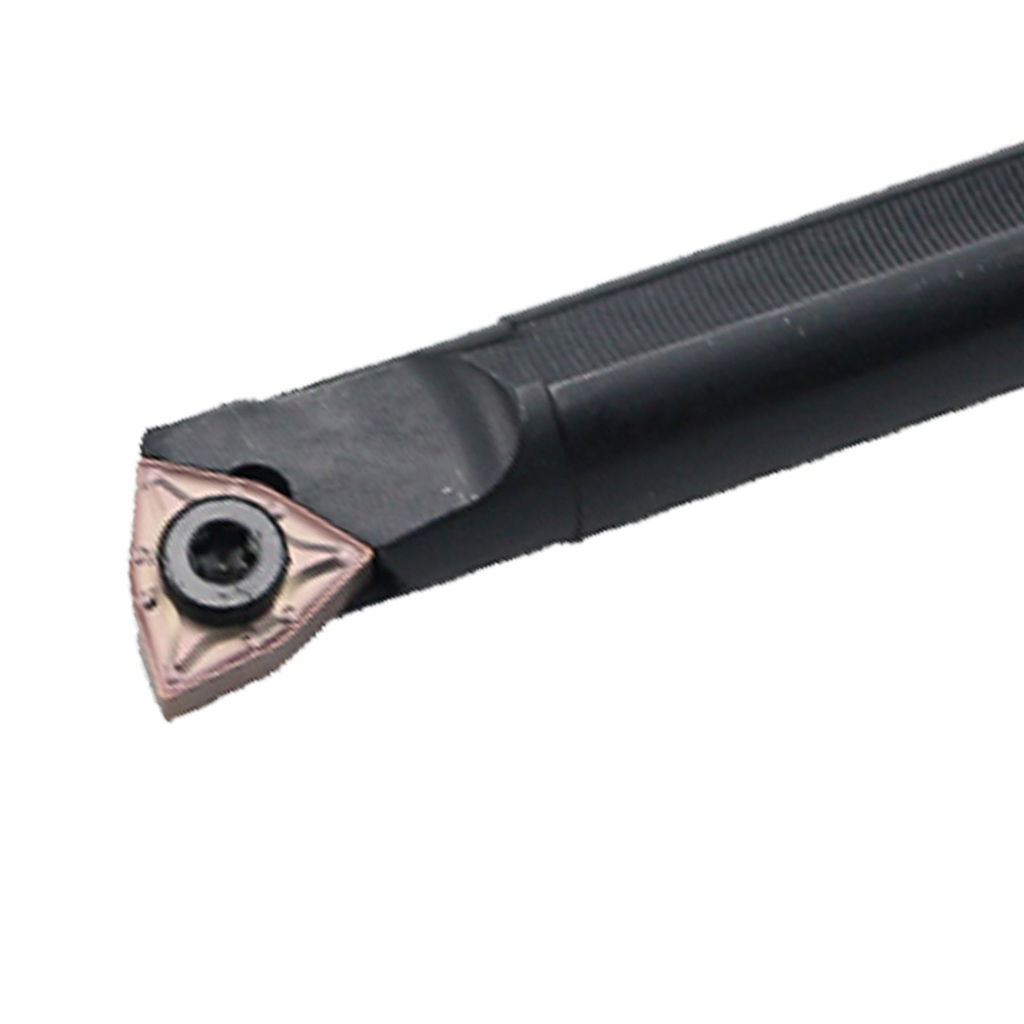

S18Q-SWLNR08 CNC Right Tool Holder for Internal Turning - Alloy Steel, 18*8mm
$21.53 USD
CNC Internal Turning Tool Holder S18Q-SWLNR08 Precision Tooling for Internal Turning Operations Alloy Steel | S-Type Model | 95° Cutting Edge Angle 5-Point Product Description for S18Q-SWLNR08: Precision Machining: Designed...
S16Q-SWLNR08 CNC Right Tool Holder for Internal Turning - Alloy Steel, 16mm Diameter
$16.84 USD
CNC Internal Turning Tool Holder S16Q-SWLNR08 Specifications and Applications Alloy Steel | S-Type Model | 95° Cutting Edge Angle 5-Point Product Description for S16Q-SWLNR08: Precision Machining: Designed for internal turning...
BEYOND SWLNR/L CNC Boring Bar – Screw Clamp External Turning Toolholder
The BEYOND SWLNR/L boring bar series is built for external turning with strong stability, featuring an S-type screw-clamp system and ISO-standard steel shank design. Compatible with WNMG inserts, these holders provide excellent performance for roughing and semi-finishing of steel, alloy steel, stainless steel, and cast iron.
ISO Code Interpretation
| ISO Position | Meaning | Description |
|---|---|---|
| 1st Letter | Type of Bar | S = Steel shank (A: steel w/ coolant, E: carbide head w/ coolant, C: carbide, X: special) |
| Next 2 Numbers | Bar Diameter | Shank size in mm (e.g., 16 = 16 mm, 20 = 20 mm, 25 = 25 mm) |
| Bar Length Code | Total Bar Length | A:32, B:40, C:50, D:60, E:70, F:80, G:90, H:100, J:110, JX:120, K:125, L:140, M:150, N:160, P:170, Q:180, R:200, S:250, T:300, U:350, V:400, W:450, Y:500 |
| Letter after hyphen (1st) | Clamping Method | S = Screw-on clamp |
| Letter after hyphen (2nd) | Insert Shape | W = 80° Trigon |
| Letter after hyphen (3rd) | Cutting Edge Angle | L = 95° entering angle |
| Letter after hyphen (4th) | Insert Relief Angle | N = 0° Negative (B:5°, C:7°, D:15°, E:20°, P:11°) |
| Letter after hyphen (5th) | Hand of Tool | R = right-hand, L = left-hand |
| Last Digits | Insert Cutting Edge Length | 08 → WNMG08 inserts |
Compatible Inserts
This toolholder uses: WNMG + last two digits
- SWLNR08 → WNMG08**
- SWLNL08 → WNMG08**
Recommended Insert Models:
- WNMG080404
- WNMG080408
- WNMG080412
- WNMG080408-PM / MA / UH (material specific)
Available SWLNR/L Boring Bar Models
| Model | Shank Diameter | Length Code | Hand | Insert Size | Clamping |
|---|---|---|---|---|---|
| S16Q-SWLNR08 | 16 mm | Q = 180 mm | R | WNMG08 | Screw Clamp |
| S16Q-SWLNL08 | 16 mm | Q = 180 mm | L | WNMG08 | Screw Clamp |
| S18Q-SWLNR08 | 18 mm | Q = 180 mm | R | WNMG08 | Screw Clamp |
| S18Q-SWLNL08 | 18 mm | Q = 180 mm | L | WNMG08 | Screw Clamp |
| S20R-SWLNR08 | 20 mm | R = 200 mm | R | WNMG08 | Screw Clamp |
| S20R-SWLNL08 | 20 mm | R = 200 mm | L | WNMG08 | Screw Clamp |
| S25S-SWLNR08 | 25 mm | S = 250 mm | R | WNMG08 | Screw Clamp |
| S25S-SWLNL08 | 25 mm | S = 250 mm | L | WNMG08 | Screw Clamp |
Key Features
- ISO-standard SWLNR/L external turning toolholder
- Durable steel shank for rigidity and vibration resistance
- Screw-on clamp ensures stable insert holding
- Designed for WNMG trigon negative inserts
- Ideal for roughing and semi-finishing
- 95° tool approach angle for excellent chip flow
- Compatible with CNC lathes, turning centers, and automation lines
Applications
- Steel machining (AISI 1045, 4140, 1020, etc.)
- Alloy steel & tool steel
- Stainless steel (304/316/420)
- Cast iron (FC / FCD)
