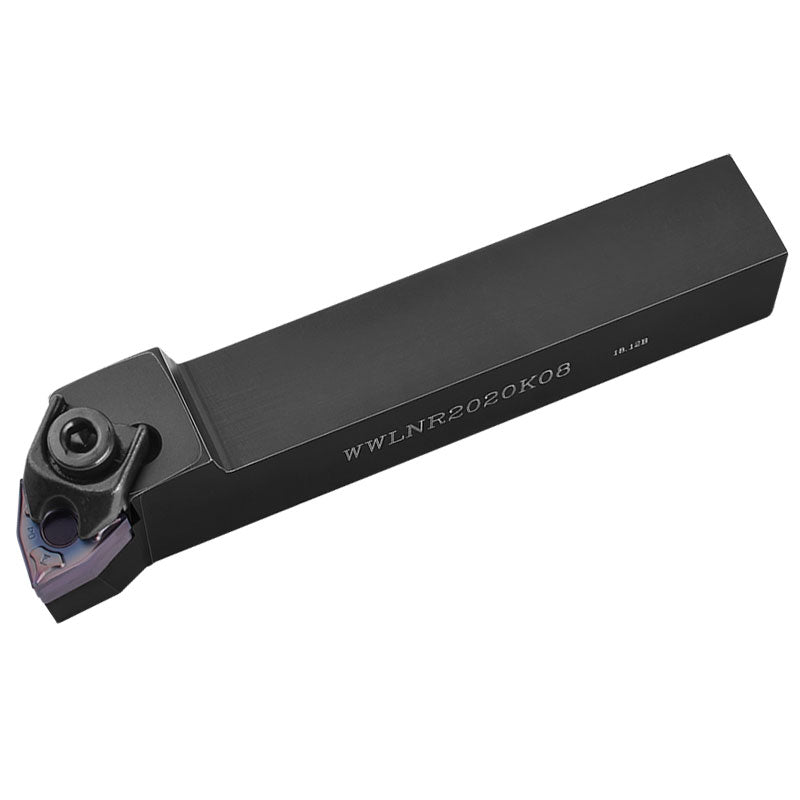

BEYOND WWLNR/L CNC External Turning Toolholders

The BEYOND WWLNR/L series is a high-precision external turning toolholder family using a W-type composite clamp system. It is designed for WNMG0804 carbide inserts with a 95° main angle (L). Each model follows the ISO 5-letter structural code:

• W – W-type Composite Clamp
• W – Insert Shape, WNMG
• L – Holder Style, Main Angle 95°
• N – Clearance Angle, Standard
• R/L – Right-Hand / Left-Hand

Shank codes follow ISO format:

• First two digits: Shank Height
• Second two digits: Shank Width
• Letter: Shank Length Standard
• Final digits: Insert Cutting Edge Length (08)

✔ Compatible Inserts

This toolholder series is compatible with the following insert type:

• WNMG0804

📌 Complete WWLNR/L Model List and ISO-Based Technical Data

Applications

• External turning of steel, stainless steel, and cast iron
• Profiling, finishing, and medium-duty CNC operations
• High-precision lathe machining with 95° main angle inserts
