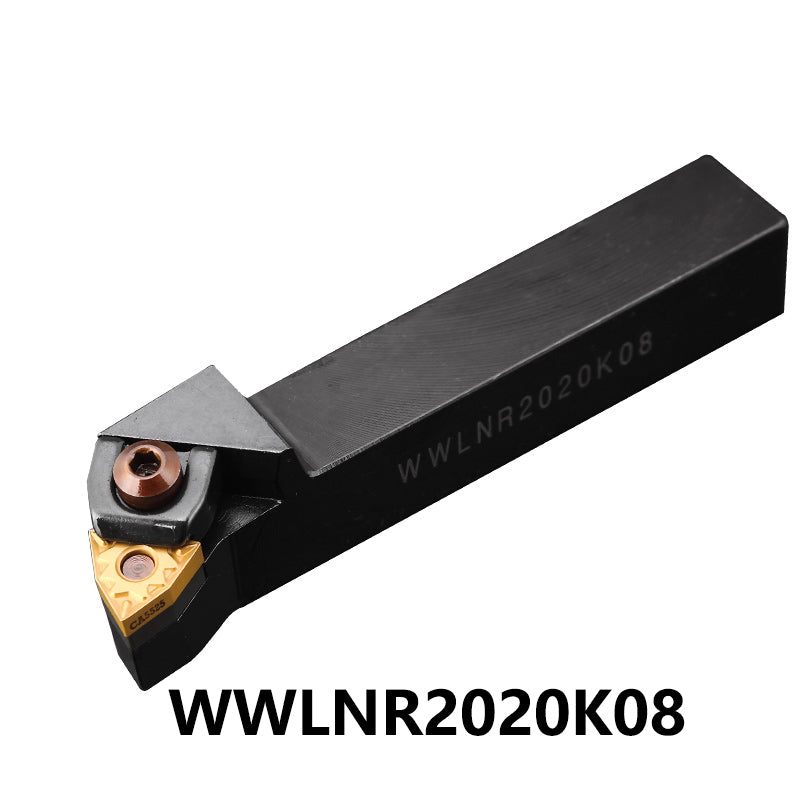

• WWLNR2020K08 External Tool Holder: Precision and Versatility for CNC Machining

• Overview

The WWLNR2020K08 External Tool Holder is engineered for precision and versatility in CNC machining applications. Featuring a cutting edge angle of 95° and a blade relief angle of 0°, this W-type wedge clamping tool holder ensures optimal cutting performance and stability. With dimensions that accommodate a wide range of blades, the WWLNR2020K08 is ideal for use in CNC machine tools, CNC lathes, and machining centers, making it an essential addition to any machining setup.

• Features and Specifications

  • Model:WWLNR2020K08
  • Package Includes: WWLNR2020K08  Tool Holder and compatible Shim,Pin,Clamp, Screws, and Wrenches
  • 95° cutting edge angle and 0° relief angle.
  • Type: W-Type (Wedge Clamping  system)
  • Shank width: 20mm
  • Shank length: 20mm
  • Total Length: 125mm
  • Shim: MW0804
  • Pin: CT618
  • Clamp: HLW-08
  • Screw: M6*25
  • Wrench: L3.0 L4.0
  • Compatible Blades: WNMG080404 WNMG080408 WNMG080412 WNMG431 WNMG432 WNMG433

• Enhance Your Machining Efficiency with the WWLNR2020K08 Tool Holder

• 5-Point Description

1. 1. Superior Cutting Precision: Designed with a 95° cutting edge angle and a 0° relief angle, the WWLNR2020K08 offers exceptional cutting performance, resulting in superior surface finishes and enhanced machining accuracy.

   2. Robust Wedge Clamping Mechanism: The W-type wedge clamping system provides a secure and stable hold on the blade, reducing vibrations and ensuring consistent cutting results, making it reliable for high-speed machining.

   3. Compact and Efficient Design: With a shank width and length of 20mm and a total length of 125mm, this external tool holder is designed for compactness and efficiency, easily fitting into a variety of CNC machine setups.

   4. Versatile Blade Compatibility: This tool holder is compatible with a range of blades, including WNMG080404, WNMG080408, WNMG080412, WNMG431, WNMG432, and WNMG433, allowing for flexibility in machining applications.

   5. Complete Setup for Immediate Use: Each tool holder comes with essential components, including shim (MW0804), pin (CT618), clamp (HLW-08), screw (M6*25), and wrenches (L3.0 and L4.0), providing everything needed for a quick and efficient setup.
