BEYOND MSDNN3232P15 CNC Lathe Holder 32x32mm External Turning Tool
$57.07 USD
BEYOND MSDNN3232P15 Indexable Lathe Turning Toolholder ⚠️ UNBOXING & SELECTION NOTICE: Please note that any carbide turning inserts displayed within our product media are purely intended to demonstrate geometric alignment...
BEYOND MSDNN1616H12 CNC Lathe Toolholder 16x16mm External Turning Bar
$19.61 USD
BEYOND MSDNN1616H12 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSDNN2525M15 CNC Lathe Toolholder 25x25mm External Turning Bar
$33.16 USD
BEYOND MSDNN2525M15 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSDNN2525M12 Indexable Neutral Turning Tool Holder | 25x25mm CNC Lathe Shank
$30.15 USD
BEYOND MSDNN2525M12 Neutral Indexable Turning Tool Holder for High-Rigidity 45° CNC Lathe External Roughing and Heavy Duty Chamfering ⚠️ INDUSTRIAL PACKAGING NOTICE: The indexable carbide insert shown mounted inside the...
BEYOND MSDNN2020K12 CNC Lathe Toolholder 20x20mm External Turning Bar
$22.83 USD
BEYOND MSDNN2020K12 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSDNN3232P19 CNC Toolholder 32x32mm External Turning Lathe Bar
$57.07 USD
BEYOND MSDNN3232P19 CNC Turning Toolholder for SNMG Indexable Inserts ⚠️ IMPORTANT NOTICE: The indexable carbide insert shown in the product imagery is for demonstration purposes only. Carbide inserts are NOT...
BEYOND MSDNN3232P12 CNC Toolholder 32x32mm External Turning Lathe Bar
$57.07 USD
BEYOND MSDNN3232P12 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...

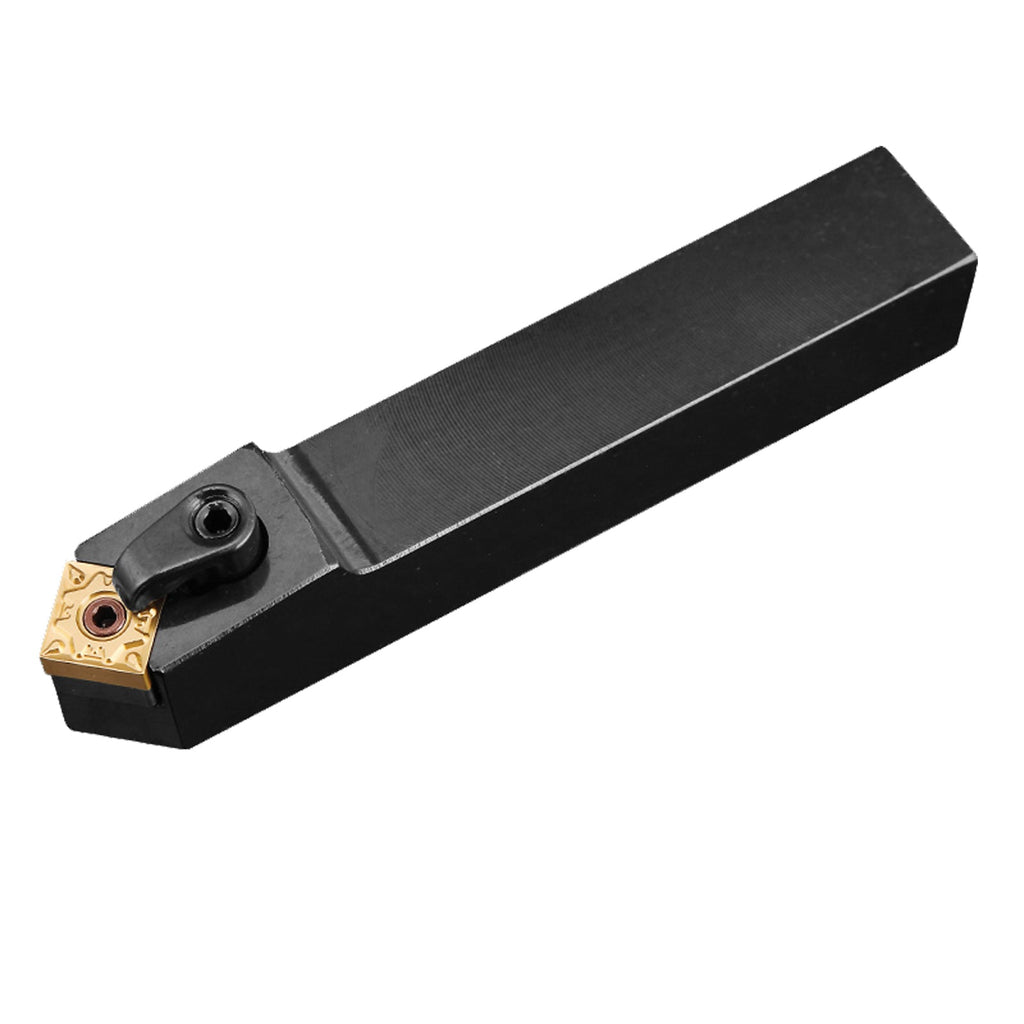

BEYOND MSDNN External Turning Toolholders
The BEYOND MSDNN series is a high-rigidity external turning toolholder designed for SNMG inserts, featuring an M-type clamp and lock-pin mechanism to ensure secure insert seating and vibration-resistant machining. The ISO-standard toolholder geometry guarantees accuracy, reliability, and compatibility for a wide range of CNC turning operations.
Insert Compatibility
Insert Type: SNMG + last two digits of holder model
Entering Angle: 45° (ISO Letter: D)
ISO Code Structure
- 1st Letter (M): Clamping Method – Clamp + Lock Pin
- 2nd Letter (S): Insert Shape
- 3rd Letter (D): Entering Angle = 45°
- 4th Letter (N): Insert Relief Angle (0°)
- 5th Letter (N): Neutral Hand
- Next 2 Digits: Shank Height (mm)
- Next 2 Digits: Shank Width (mm)
- Length Code Letter: Toolholder Length per ISO table
- Final Digits: Insert Cutting Edge Length
Product Specifications
| Model | Hand | Shank Height (mm) | Shank Width (mm) | Length Code | Holder Length (mm) | Insert Cutting Edge | Suitable Insert | Entering Angle |
|---|---|---|---|---|---|---|---|---|
| MSDNN2525M15 | Neutral | 25 | 25 | M | 150 | 15 | SNMG1506 / SNMG15xx | 45° |
| MSDNN3232P15 | Neutral | 32 | 32 | P | 170 | 15 | SNMG1506 / SNMG15xx | 45° |
| MSDNN4040R15 | Neutral | 40 | 40 | R | 200 | 15 | SNMG1506 / SNMG15xx | 45° |
| MSDNN3232P19 | Neutral | 32 | 32 | P | 170 | 19 | SNMG1908 / SNMG19xx | 45° |
| MSDNN4040R19 | Neutral | 40 | 40 | R | 200 | 19 | SNMG1908 / SNMG19xx | 45° |
| MSDNN1616H12 | Neutral | 16 | 16 | H | 100 | 12 | SNMG1204 / SNMG12xx | 45° |
| MSDNN2020K12 | Neutral | 20 | 20 | K | 125 | 12 | SNMG1204 / SNMG12xx | 45° |
| MSDNN2525M12 | Neutral | 25 | 25 | M | 150 | 12 | SNMG1204 / SNMG12xx | 45° |
| MSDNN3232P12 | Neutral | 32 | 32 | P | 170 | 12 | SNMG1204 / SNMG12xx | 45° |
