BEYOND S20R-SVXCR11 Boring Bar | CNC Internal Turning Tool Holder
$21.90 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S20R-SVXCL11 Boring Bar | CNC Internal Turning Tool Holder
$21.90 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S32T-SVXCR16 Boring Bar | CNC Internal Turning Tool Holder
$55.19 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
S32T-SVXCL16 CNC Internal Boring Bar Tool Holder – 96° Cutting Angle, Durable Alloy Steel
$55.19 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S16Q-SVXCR16 Boring Bar | CNC Internal Turning Tool Holder
$18.52 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S16Q-SVXCL16 Boring Bar | CNC Internal Turning Tool Holder
$18.52 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S25S-SVXCR11 Boring Bar | CNC Internal Turning Tool Holder
$33.16 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S25S-SVXCL11 Boring Bar | CNC Internal Turning Tool Holder
$33.16 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...

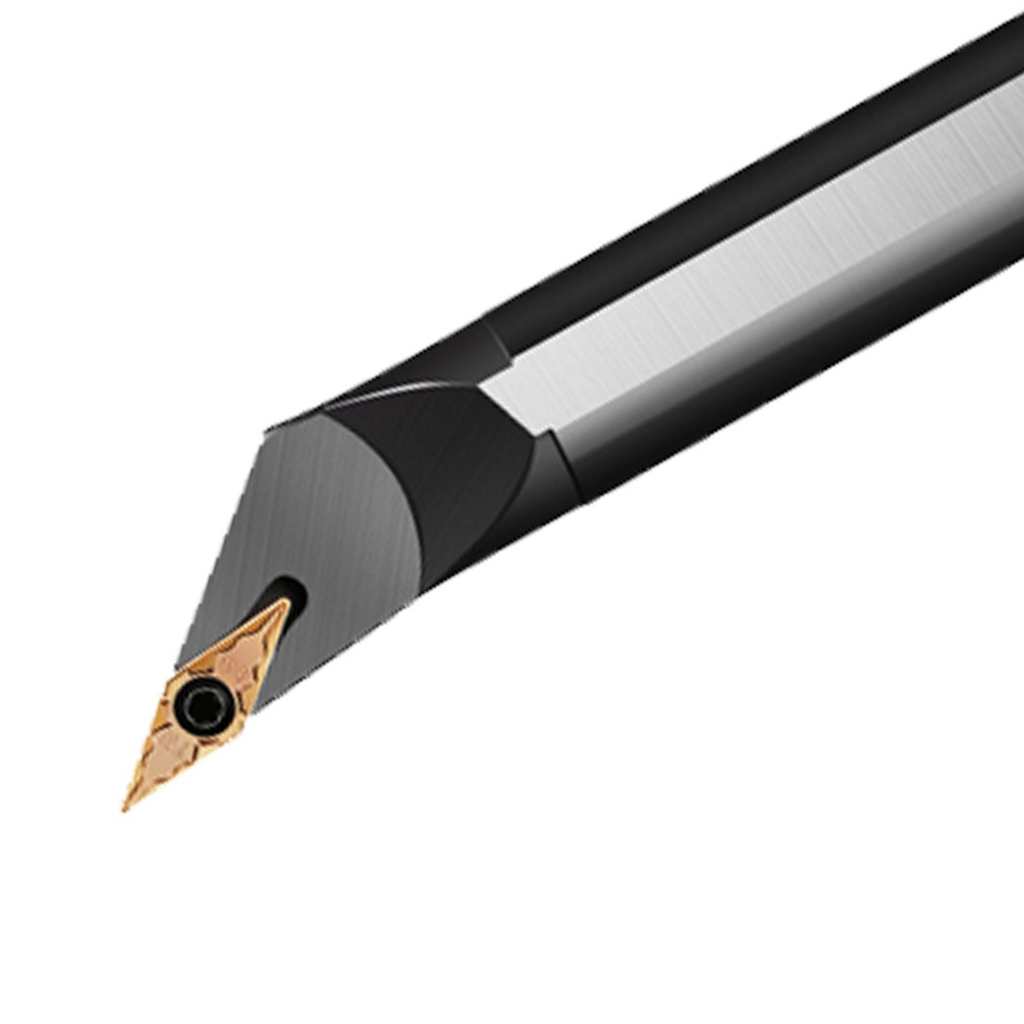

BEYOND S25S-SVXCR16 Boring Bar | CNC Internal Turning Tool Holder
$33.16 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S25S-SVXCL16 Boring Bar | CNC Internal Turning Tool Holder
$33.16 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S20R-SVXCR16 Boring Bar | CNC Internal Turning Tool Holder
$21.90 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S20R-SVXCL16 Boring Bar | CNC Internal Turning Tool Holder
$21.90 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S16Q-SVXCR11 High-Rigidity 16mm Shank 180mm Length 113-Degree Screw Clamped Right Hand CNC Lathe Internal Profiling Boring Bar for VCMT 1103 Inserts
$16.84 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric profiling...
BEYOND S16Q-SVXCL11 Boring Bar | CNC Internal Turning Tool Holder
$18.52 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND SVXCR/SVXCL Boring Bars – Steel Shank CNC Tool Holders
High-precision steel shank boring bars from BEYOND, featuring screw-on clamping for secure VCMT insert installation. Designed for CNC turning operations, offering reliable performance and durability.
Specifications
| Model | Type of Bar | Bar Diameter (mm) | Bar Length (mm) | Clamping Method | Insert Shape | Cutting Edge Angle | Insert Relief Angle | Hand of Tool | Insert Cutting Edge Length (mm) | Compatible Insert |
|---|---|---|---|---|---|---|---|---|---|---|
| S16Q-SVXCR11 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 11 | VCMT11 |
| S16Q-SVXCL11 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 11 | VCMT11 |
| S20R-SVXCR11 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 11 | VCMT11 |
| S20R-SVXCL11 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 11 | VCMT11 |
| S25S-SVXCR11 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 11 | VCMT11 |
| S25S-SVXCL11 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 11 | VCMT11 |
| S16Q-SVXCR16 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 16 | VCMT16 |
| S16Q-SVXCL16 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 16 | VCMT16 |
| S20R-SVXCR16 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 16 | VCMT16 |
| S20R-SVXCL16 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 16 | VCMT16 |
| S25S-SVXCR16 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | R | 16 | VCMT16 |
| S25S-SVXCL16 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 96° (X) | 5° Positive (B) | L | 16 | VCMT16 |
Features
- Steel shank for high rigidity and stability.
- Screw-on clamping for secure VCMT insert installation.
- Available in multiple diameters and lengths to fit different machining needs.
- Compatible with standard VCMT inserts (last two digits indicate insert edge length).
- Positive relief angle ensures smooth cutting and long tool life.
- Perfect for CNC turning, boring, and finishing operations.
Applications
Suitable for precision turning and boring operations on steel, cast iron, alloy steel, and stainless steel workpieces. Ideal for industrial machining centers and CNC lathes.
Brand
BEYOND – Professional CNC Tool Holder Manufacturer
