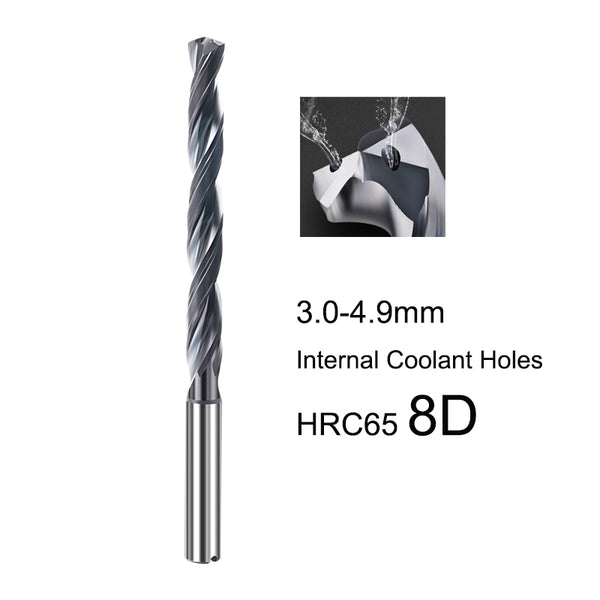

HRC65 8D Internal Coolant Solid Carbide Drill | 2.0–4.9mm carbide end milll
BEYOND Solid Carbide 8D Drill · HRC65 · KCPK15 Coated
HRC65 8D Internal Coolant Drill — Hardened Steel & Die Steel
The flagship BEYOND HRC65 8D drill for heavy deep-hole drilling in hardened steel up to HRC65, die steel, stainless, and high-temperature alloys. KCPK15 TiAlN-based coating tolerates 50–80 m/min cutting speed with internal coolant at 15–30 bar pressure.
🟢 Trusted by small workshops, individual machinists & garage CNC users worldwide. 1 piece welcome · WhatsApp reply within 2 hours · 3–7 day global shipping via DHL / UPS / FedEx.
Flute Length
8 × D
Hardness Tier
HRC65
Diameter Range
2 – 20 mm
Coolant Pressure
15 – 30 bar
BEYOND HRC65 8D Family — 9 Diameter Tiers
All diameter tiers share the same 8D flute length ratio, HRC65 substrate, KCPK15 TiAlN-based coating, and through-coolant DIN 69090-3 shank. Diameter tier determines price, rigidity, and required coolant pressure.
| Diameter Tier | Flute Length | Coolant Pressure | Typical Use |
|---|---|---|---|
| 2.0–4.9 mm | 8×Ø | 15–18 bar | Micro deep hole — instrument, micro mold cooling |
| 5.0–6.9 mm | 8×Ø | 15–20 bar | Precision deep hole — medical, mold cooling |
| 7.0–8.9 mm | 8×Ø | 18–22 bar | Mid deep hole — aerospace brackets, valve |
| 9.0–10.9 mm | 8×Ø | 20–24 bar | Heavy deep hole — mold ejector, hydraulic |
| 11.0–12.9 mm | 8×Ø | 22–26 bar | Industrial deep hole — large mold, transmission |
| 13.0–14.9 mm | 8×Ø | 24–28 bar | Heavy industrial — large mold core |
| 15.0–16.9 mm | 8×Ø | 26–30 bar | Heavy industrial — mold base / die set |
| 17.0–18.9 mm | 8×Ø | 28–30 bar | Extreme deep hole — large mold |
| 19.0–20.0 mm | 8×Ø | 30 bar | Extreme deep hole — large structural / die |
Why 8×D — Heavy Deep-Hole Drilling
8×D (8×Ø) is the heavy deep-hole length for mold ejector pin channels, valve body cavities, and structural components where standard 3D / 5D drills cannot reach. To run reliably at 8D, you need: HRC65 substrate + KCPK15 coating, internal coolant at 15–30 bar, hydraulic / shrink-fit chuck, and a dedicated peck cycle.
| Depth | Coolant | Holder | Peck Cycle |
|---|---|---|---|
| 3×D | 7–15 bar through-coolant | ER collet (sealed) or hydraulic | 1×Ø retract OK |
| 5×D | 10–20 bar through-coolant | Hydraulic or shrink-fit | 0.5–1.0×Ø retract |
| 8×D (this series) | 15–30 bar through-coolant | Hydraulic or shrink-fit only | 0.2–0.3×Ø retract + dedicated cycle |
| 12D+ Saber | 20–40 bar through-coolant | Hydraulic or shrink-fit only | 0.1–0.2×Ø + coolant-pulse cycle |
For depth > 8×D, see the BEYOND 12D Saber Tooth family.
HRC65 Substrate + KCPK15 TiAlN Coating
The BEYOND HRC65 8D series uses HRC65-grade ultra-fine grain carbide substrate (10% cobalt binder) with KCPK15 TiAlN-based composite coating (~3 µm thickness). The KCPK15 coating maintains thermal hardness above 80% at 800°C — the key to surviving HRC65 work at 50–80 m/min Vc with 15–30 bar through-coolant.
| Property | KCPK15 (this series) | Standard TiAlN |
|---|---|---|
| Max operating temp | 900°C (with coolant) | 800°C |
| HRC65 endurance | Excellent (50–80 m/min Vc) | Limited (max 50 m/min) |
| MQL compatibility | Yes (with through-coolant backup) | Limited |
| Thickness | 3 µm composite | 2–4 µm single-layer |
Internal Coolant at 15–30 Bar — DIN 69090-3 Standard
8×D deep-hole drilling on hardened steel requires much higher coolant pressure than 3D / 5D drilling. The HRC65 8D series uses DIN 69090-3 D-Type shank with sealed internal coolant channels, requiring 15–30 bar pressure at the cutting edge.
Compatible holders:
- Hydraulic chuck with sealed coolant supply (best for 8D drilling)
- Shrink-fit chuck with sealed holder (premium rigidity)
- ER collet chuck (DIN 6499 / ISO 15488) with sealed nut — see ER collet chucks
⚠ Critical: Standard ER collets without sealed nut will leak coolant at 15+ bar. For 8D HRC65 work, use hydraulic chuck (preferred) or shrink-fit chuck — never 3-jaw chuck. Runout < 0.005 mm at the drill point.
Cutting Parameter Quick Guide
Starting recommendations for the BEYOND HRC65 8D series. KCPK15 coating + internal coolant mandatory.
| Material | Hardness | Vc (m/min) | Feed f (mm/rev) | Coolant |
|---|---|---|---|---|
| Hardened Steel (HRC55–60) | HRC60 | 60–90 | 0.06–0.14 | 15–20 bar |
| Hardened Steel (HRC60–65) | HRC65 | 50–80 | 0.04–0.10 | 20–25 bar |
| Die Steel (HRC58–62) | HRC60 | 40–70 | 0.04–0.10 | 20–25 bar |
| Stainless Steel (SUS304–SUS420) | HRC60 | 40–70 | 0.06–0.12 | 20–25 bar |
| High-Temp Alloy (Inconel / Ti) | HRC60 | 20–40 | 0.03–0.08 | 25–30 bar |
For Individual Buyers & Small Workshops
You don't need to be a factory buyer. We ship 1 piece to your home, garage, or workshop — no MOQ, no pre-approval, no corporate paperwork.
💰 Volume Discounts (auto at checkout)
- 1 piece — list price
- 2–9 pieces — 6% OFF
- 10+ pieces — 12% OFF
📦 Shipping & Delivery
- Shipped from Hangzhou, China
- DHL / UPS / FedEx — 3–7 days to most countries
- Tracked & insured; signature on delivery
💬 Pre-Sale Technical Support
- WhatsApp reply within 2 hours (workdays)
- Email reply same business day
- Chinese & English supported
🎓 Perfect For
- Garage CNC / hobby machinists (small jobs)
- Engineering students & capstone projects
- Small prototype & R&D shops
- Repair & one-off die / mold shops
Not sure which diameter to pick? Send us your workpiece photo + material on WhatsApp — we'll recommend a size within 2 hours.
Solid 8D vs Indexable Insert 8D / 12D Saber
Solid carbide HRC65 8D (this collection) wins on rigidity and small-diameter precision (≤ Ø 20 mm). For ≥ Ø 20 mm or > 8D depth, switch to the 12D Saber Tooth or indexable insert family. All siblings share the same /collections/drill parent hub.
SP Insert Drills — 55° positive trigon (stainless / aluminum / mild steel)
WC Insert Drills — 80° trigon negative rake (steel / cast iron / high MRR)
Application Spotlight
Mold Ejector Pin Channels
HRC60 die steel deep ejector channels Ø 6–12 mm at 50–100 mm. HRC65 8D is the workhorse choice.
Die Set Cooling Lines
Hardened die steel Ø 8–16 mm at 100+ mm. Pair with face mill for top cleanup.
Valve Body Deep Cavities
316 stainless hardened valve cavities Ø 6–14 mm. KCPK15 + 20 bar coolant mandatory.
Aerospace Hardened Bracket
HRC60 titanium / Inconel brackets Ø 4–10 mm at 50+ mm. Reduce Vc by 50% for Ti / Inconel.
Medical Implant Pass
316L hardened medical implant Ø 2–4 mm at 30+ mm. Mirror-grade finish required.
Long Reach >8D
Beyond 8×D depth, switch to 12D Saber Tooth with 20–40 bar coolant + dedicated cycle.
Ordering Guide by Diameter Tier
| Diameter | Coolant Pressure | Notes |
|---|---|---|
| 2.0–4.9 mm | 15–18 bar | Micro deep hole — frequent peck 0.2×Ø |
| 5.0–6.9 mm | 15–20 bar | Mold cooling, medical implant |
| 7.0–8.9 mm | 18–22 bar | Aerospace, valve bodies |
| 9.0–10.9 mm | 20–24 bar | Mold ejector, hydraulic |
| 11.0–12.9 mm | 22–26 bar | Industrial deep hole |
| 13.0–14.9 mm | 24–28 bar | Heavy industrial — large mold core |
| 15.0–16.9 mm | 26–30 bar | Heavy industrial — mold base |
| 17.0–18.9 mm | 28–30 bar | Extreme deep hole |
| 19.0–20.0 mm | 30 bar | Extreme deep hole — hydraulic chuck mandatory |
| > 20 mm | Switch to WC 5D indexable or 12D Saber | Insert economics beat solid carbide ≥ Ø20 mm |
Frequently Asked Questions
Why HRC65 specifically, and how is it different from HRC60?
HRC65 substrate is the heavy-duty grade for workpieces up to HRC65 hardness — pre-hardened die steel, hardened stainless, and high-temperature alloys. Standard HRC60 drills wear fast above HRC60. The HRC65 8D series uses higher cobalt binder (10%) and KCPK15 coating to survive 50–80 m/min Vc on HRC60–65 work.
What holder / chuck do I need for 8D HRC65 work?
For Ø ≤ 6 mm: hydraulic chuck (best) or shrink-fit chuck. For Ø 7+ mm: hydraulic or shrink-fit only — never 3-jaw chuck (runout will break the drill). All holders must have sealed coolant supply. See ER collet chucks for sealed-nut options. Runout must be < 0.005 mm at the drill point.
Can the HRC65 8D drill run on Inconel or titanium?
Yes — but reduce Vc by 50% vs steel. For Inconel 718/625: Vc 20–40 m/min, f 0.04–0.10 mm/rev, 25–30 bar coolant. For titanium 6Al-4V: Vc 30–50 m/min, f 0.06–0.12 mm/rev, 25 bar coolant. KCPK15 coating is mandatory for both.
📦 Do you ship to my country? How fast?
Yes — we ship globally from Hangzhou, China via DHL / UPS / FedEx. Standard transit is 3–7 business days to most countries in North America, Europe, Asia-Pacific, and the Middle East. Shipping cost is calculated at checkout based on weight and destination; tracking number is emailed within 24 hours of dispatch.
🛒 Can I order just 1 piece? Is there a minimum order?
Yes — no MOQ. Order 1 piece at list price, 2–9 pieces at 6% OFF (auto-discount at checkout), 10+ pieces at 12% OFF. Whether you're a hobby machinist with one die to repair or a manufacturer with 500, you're welcome.
↩️ What's your return / refund policy?
Unopened, unused stock can be returned within 7 days of delivery for a full refund (buyer pays return shipping). Defective or wrong items are replaced at our cost. WhatsApp us with your order number and a photo — we respond within 2 hours on workdays.
Need a Custom HRC65 Drill Spec or Bulk Quote?
BEYOND engineers respond same-day for hardened steel drill specs, custom diameters, and bulk pricing for 10+ pieces (12% off). Reach our team on WhatsApp or email — we ship from Hangzhou via DHL / UPS / FedEx with 3–7 day transit to most countries.
