HRC65 8D Internal Coolant Solid Carbide Drill 13.0–14.9mm carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.

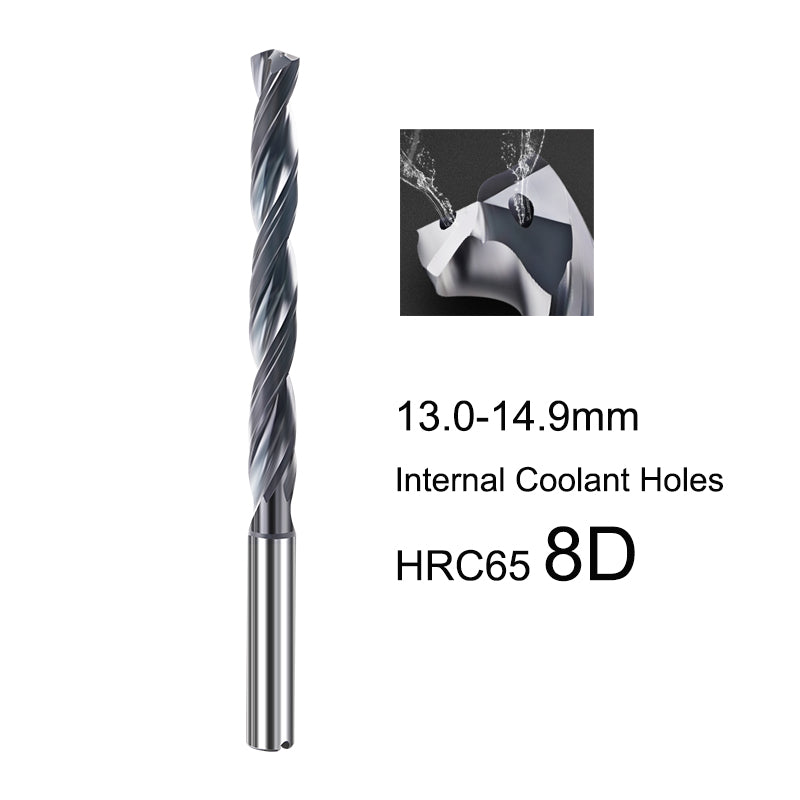

BEYOND HRC65 8D Internal Coolant Solid Carbide Drill (13.0–14.9mm)
BEYOND HRC65 8D Solid Carbide Drills are engineered for deep-hole and high-precision drilling in hard and tough materials. Manufactured from premium fine-grain tungsten carbide and coated with a high-performance nano composite coating, they ensure stable cutting, superior heat resistance, and long service life even under high-speed machining conditions.
Features
- HRC65 ultra-hard carbide substrate – Perfect for hardened steel, die steel, and alloy steel.
- 8D (8×D) long drill design – Enables deep-hole machining with excellent straightness and stability.
- Internal coolant holes – Optimize chip evacuation and cooling during cutting, preventing tool wear.
- High-precision cutting edges – Reduce cutting force and burr formation for smooth hole finishes.
- Advanced TiAlN / Nano coating – Provides oxidation resistance and increases tool life by 2–3 times compared to uncoated tools.
Recommended Materials
Designed for drilling hardened steel (≤65HRC), die steel, cast iron, tool steel, and heat-treated alloy materials.
Product Specifications
| Model | Drill Diameter (mm) | Flute Length (mm) | Total Length (mm) | Shank Diameter (mm) |
|---|---|---|---|---|
| BEYOND-HRC65-8D-13.0 | 13.0 | 133 | 182 | 14 |
| BEYOND-HRC65-8D-13.1 | 13.1 | 133 | 182 | 14 |
| BEYOND-HRC65-8D-13.2 | 13.2 | 133 | 182 | 14 |
| BEYOND-HRC65-8D-13.3 | 13.3 | 133 | 182 | 14 |
| BEYOND-HRC65-8D-13.4 | 13.4 | 133 | 182 | 14 |
| BEYOND-HRC65-8D-13.5 | 13.5 | 133 | 182 | 14 |
| BEYOND-HRC65-8D-13.6 | 13.6 | 133 | 182 | 14 |
| BEYOND-HRC65-8D-13.7 | 13.7 | 133 | 182 | 14 |
| BEYOND-HRC65-8D-13.8 | 13.8 | 133 | 182 | 14 |
| BEYOND-HRC65-8D-13.9 | 13.9 | 133 | 182 | 14 |
| BEYOND-HRC65-8D-14.0 | 14.0 | 133 | 182 | 14 |
| BEYOND-HRC65-8D-14.1 | 14.1 | 152 | 204 | 16 |
| BEYOND-HRC65-8D-14.2 | 14.2 | 152 | 204 | 16 |
| BEYOND-HRC65-8D-14.3 | 14.3 | 152 | 204 | 16 |
| BEYOND-HRC65-8D-14.4 | 14.4 | 152 | 204 | 16 |
| BEYOND-HRC65-8D-14.5 | 14.5 | 152 | 204 | 16 |
| BEYOND-HRC65-8D-14.6 | 14.6 | 152 | 204 | 16 |
| BEYOND-HRC65-8D-14.7 | 14.7 | 152 | 204 | 16 |
| BEYOND-HRC65-8D-14.8 | 14.8 | 152 | 204 | 16 |
| BEYOND-HRC65-8D-14.9 | 14.9 | 152 | 204 | 16 |
Advantages
- High precision and stable performance for deep-hole drilling
- Reduced tool wear and longer lifespan in hard materials
- Excellent surface finish and hole straightness
- Ideal for CNC machining centers and mold manufacturing
Available Sizes
13.0mm / 13.1mm / 13.2mm / 13.3mm / 13.4mm / 13.5mm / 13.6mm / 13.7mm / 13.8mm / 13.9mm / 14.0mm / 14.1mm / 14.2mm / 14.3mm / 14.4mm / 14.5mm / 14.6mm / 14.7mm / 14.8mm / 14.9mm
Keywords & Applications
Keywords: HRC65 carbide drill, 8D deep hole drill, long flute drill with coolant holes, solid carbide drill 13mm–15mm, BEYOND internal coolant drill, 8xD long carbide drill, CNC deep hole cutting tool, hardened steel drill bit.
Applications: CNC machining, precision mold processing, aerospace parts, automotive die manufacturing, deep cavity drilling.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
