BEYOND S25S-SVWBR16 Boring Bar | 25mm Lathe Tool Holder for VBMT 1604
$33.31 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....

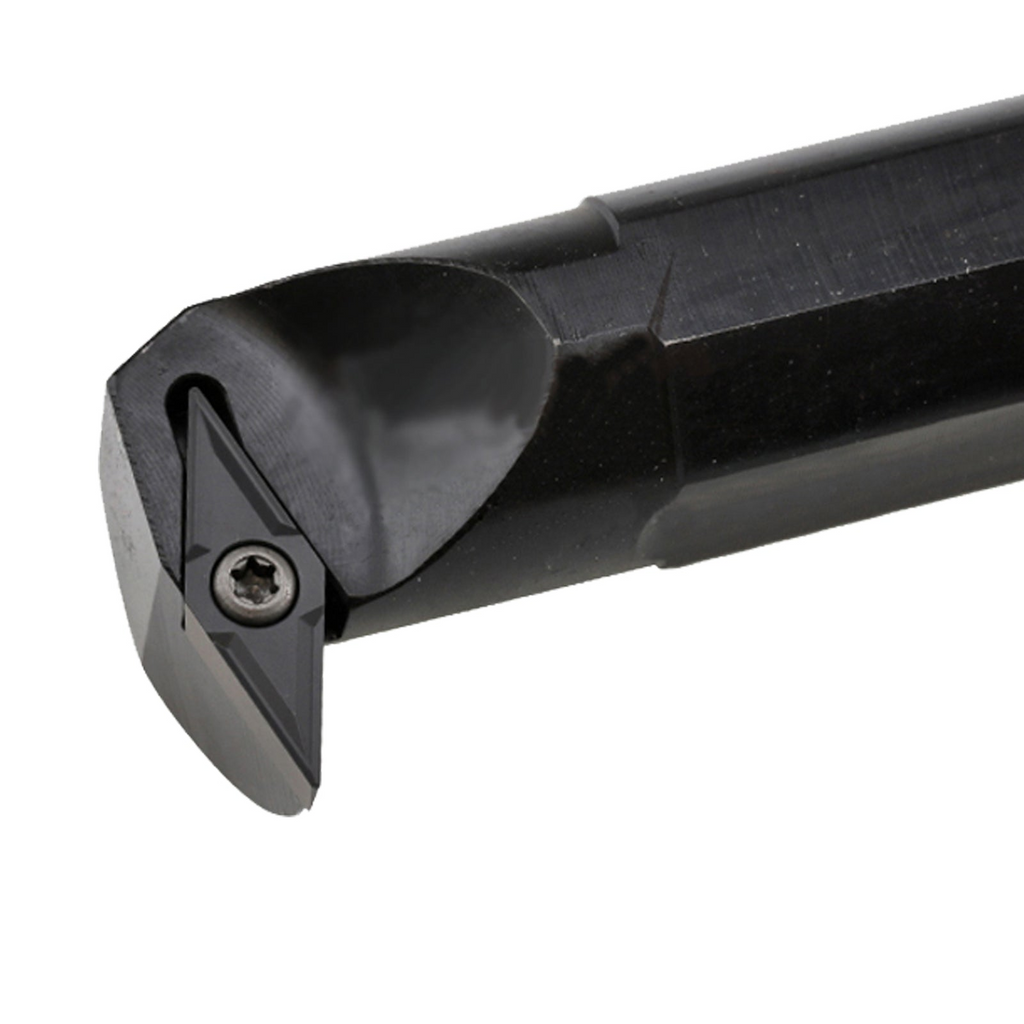

BEYOND S16Q-SVWBR11 Internal Boring Bar 16mm Shank 180mm Length Screw Clamped Right Hand 72.5-Degree VBMT 1103 Lathe Profiling Turning Tool Holder
$16.84 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric profiling...
BEYOND S25S-SVWBL16 Boring Bar | 25mm Left Hand Lathe Tool Holder
$34.36 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S20R-SVWBR11 Boring Bar | 20mm Lathe Tool Holder for VBMT 1103
$23.63 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND SVWBR/SVWBL Boring Bars – Steel Shank CNC Tool Holders
High-precision steel shank boring bars from BEYOND, featuring screw-on clamping for secure VBGT insert installation. Designed for CNC turning operations, offering reliable performance and durability.
Specifications
| Model | Type of Bar | Bar Diameter (mm) | Bar Length (mm) | Clamping Method | Insert Shape | Cutting Edge Angle | Insert Relief Angle | Hand of Tool | Insert Cutting Edge Length (mm) | Compatible Insert |
|---|---|---|---|---|---|---|---|---|---|---|
| S16Q-SVWBR11 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 60° (W) | 5° Positive (B) | R | 11 | VBGT11 |
| S16Q-SVWBL11 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 60° (W) | 5° Positive (B) | L | 11 | VBGT11 |
| S20R-SVWBR11 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 60° (W) | 5° Positive (B) | R | 11 | VBGT11 |
| S20R-SVWBL11 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 60° (W) | 5° Positive (B) | L | 11 | VBGT11 |
| S25S-SVWBR16 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 60° (W) | 5° Positive (B) | R | 16 | VBGT16 |
| S25S-SVWBL16 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 60° (W) | 5° Positive (B) | L | 16 | VBGT16 |
| S32T-SVWBR16 | Steel Shank | 32 | 300 | Screw Only | V (35° Diamond) | 60° (W) | 5° Positive (B) | R | 16 | VBGT16 |
| S32T-SVWBL16 | Steel Shank | 32 | 300 | Screw Only | V (35° Diamond) | 60° (W) | 5° Positive (B) | L | 16 | VBGT16 |
Features
- Steel shank for high rigidity and stability.
- Screw-on clamping for secure VBGT insert installation.
- Available in multiple diameters and lengths to fit different machining needs.
- Compatible with standard VBGT inserts (last two digits indicate insert edge length).
- Positive relief angle ensures smooth cutting and long tool life.
- Perfect for CNC turning, boring, and finishing operations.
Applications
Suitable for precision turning and boring operations on steel, cast iron, alloy steel, and stainless steel workpieces. Ideal for industrial machining centers and CNC lathes.
Brand
BEYOND – Professional CNC Tool Holder Manufacturer
