BEYOND A & B Type Solid Carbide Center Drill | 60°, HRC55, CNC

Sort by:

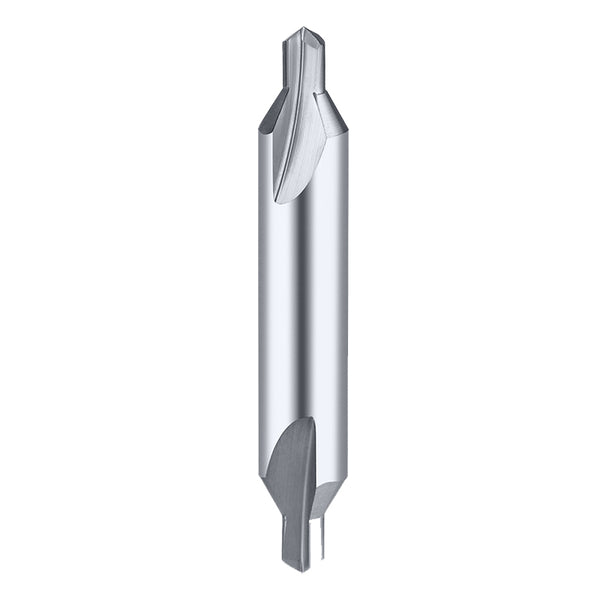

BEYOND Tungsten Carbide Center Drill 60° Type A HRC55

BEYOND Tungsten Carbide Center Drill 60° Type A HRC55

$28.34 USD – $128.70 USD
BEYOND Tungsten Carbide Center Drill Type A 60° HRC55 High-Precision Center Drill for CNC and Engraving Machines The BEYOND Tungsten Carbide Center Drill Type A 60° is designed for high-precision...

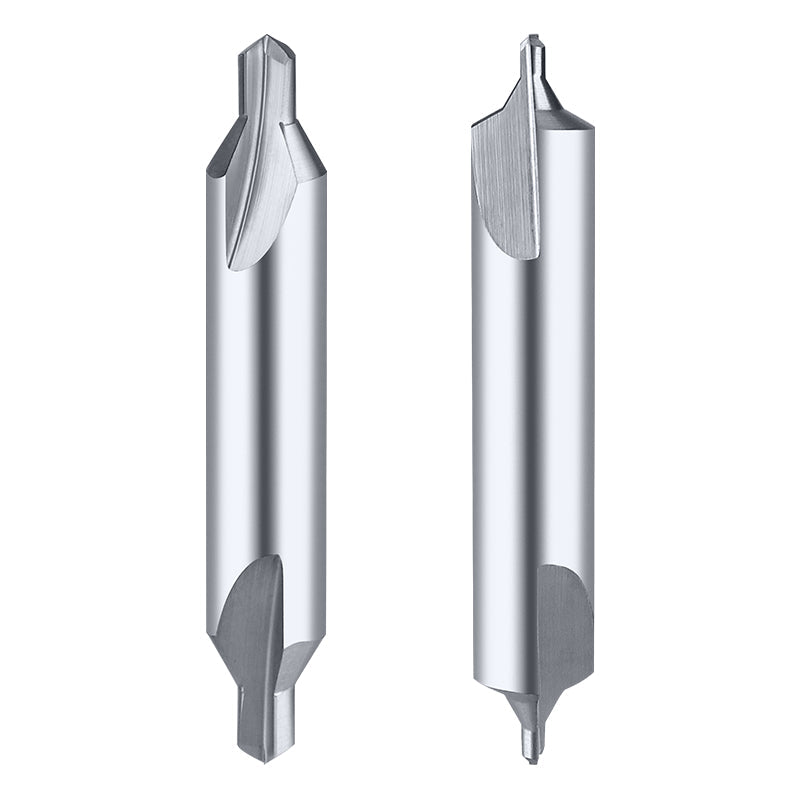

BEYOND Tungsten Carbide Center Drill Type B 60° HRC55 CNC Tool

BEYOND Tungsten Carbide Center Drill Type B 60° HRC55 CNC Tool

$37.14 USD – $294.66 USD
BEYOND Tungsten Carbide Center Drill Type B 60° HRC55 Precision Center Drill for CNC and Engraving Machines The BEYOND Tungsten Carbide Center Drill Type B 60° is designed for precise...

BEYOND Solid Carbide Center Drill · DIN 333 Type A & B · 60°

A & B Type Solid Carbide Center Drill 60° — for CNC Machines

BEYOND A and B Type solid carbide center drills for precision centering and chamfering on CNC machining centers and engraving machines. 60° tip angle per DIN 333, HRC55 ultra-fine grain substrate, 2-flute geometry for clean chip evacuation.

🟢 Trusted by small workshops, individual machinists & garage CNC users worldwide. 1 piece welcome · WhatsApp reply within 2 hours · 3–7 day global shipping via DHL / UPS / FedEx.

DIN Type

A & B (Form)

Tip Angle

60°

Hardness Tier

HRC55

Materials

Steel · SS · Alu · CI

BEYOND Center Drill Family — Type A & Type B

The BEYOND A & B Type center drill family offers two DIN 333 standard forms. Both share 60° tip angle, HRC55 substrate, and 2-flute geometry — but differ in the pilot drill profile.

DIN Form Pilot Drill Profile Best For Price
Type A Plain 60° pilot (no protective chamfer) Standard centering for ≤ HRC55 work — general steel, stainless, aluminum, cast iron $28.34
Type B 60° pilot with 90° protective chamfer at cutting edge Harder materials (≤ HRC55 with intermittent cuts) — prevents edge chipping on entry/exit $37.14

Standard body diameters: 6.3 / 8.0 / 10.0 / 12.5 / 16.0 / 20.0 mm (per DIN 333). The actual body diameter depends on which size you need; each type is offered across the full DIN 333 size range.

DIN 333 Form A vs Form B — Geometry Standard

DIN 333 defines two standard center drill forms for CNC and lathe work. The difference is the pilot drill profile at the cutting edge.

Form A — Plain Pilot

  • No protective chamfer at cutting edge
  • Sharp 60° point + cylindrical pilot
  • Standard for general centering ≤ HRC55
  • Lower cost (simpler geometry)

Form B — 90° Protective Chamfer

  • 90° chamfer at cutting edge transitions to 60° body
  • Reduces edge chipping on entry/exit
  • Better for harder materials or interrupted cuts
  • Slightly higher cost (more material, more grinding)

Which to choose? Use Type A for most applications (general centering on steel, stainless, aluminum, cast iron at ≤ HRC55). Use Type B only when you need extra edge protection — harder materials, interrupted cuts, or thin walls. For 90% of CNC work, Type A is sufficient and cheaper.

60° Tip Angle — Why It's Standard

The 60° tip angle is the international standard for center drills (DIN 333, ISO 6411, GB 6078). It matches the 60° point angle of common lathe centers, allowing parts to be turned between centers without re-centering. Compare to other common angles:

Tip Angle Use
60° (this series) Standard for lathe work, drill entry, mill setup — matches 60° lathe centers
82° / 90° Countersinking for flat-head screws (DIN 74 / DIN 963)
120° Drill point angle (matches standard twist drill points)
130° / 140° Cast iron / non-ferrous deep hole drilling

Cutting Parameter Quick Guide

Center drilling requires moderate speed and low feed to produce a clean center hole. Use flood coolant for steel and stainless; MQL or dry for aluminum and cast iron.

Material Hardness Vc (m/min) Feed f (mm/rev) Coolant
Carbon Steel (≤1500 N/mm²) HRC55 30–50 0.05–0.12 Flood
Alloy Steel / Tool Steel HRC45 25–40 0.04–0.10 Flood
Stainless Steel (SUS304/316) HRC55 20–35 0.03–0.08 Flood
Aluminum / Copper / Alloy HRC55 50–80 0.05–0.15 MQL or flood
Cast Iron HRC55 40–60 0.05–0.12 Dry or MQL

For Individual Buyers & Small Workshops

You don't need to be a factory buyer. We ship 1 piece to your home, garage, or workshop — no MOQ, no pre-approval, no corporate paperwork. Perfect for lathe setup, drill entry, one-off repairs, and student projects.

💰 Volume Discounts (auto at checkout)

  • 1 piece — list price ($28–$37)
  • 2–9 pieces — 6% OFF
  • 10+ pieces — 12% OFF

📦 Shipping & Delivery

  • Shipped from Hangzhou, China
  • DHL / UPS / FedEx — 3–7 days to most countries
  • Tracked & insured; signature on delivery

💬 Pre-Sale Technical Support

  • WhatsApp reply within 2 hours (workdays)
  • Email reply same business day
  • Chinese & English supported

🎓 Perfect For

  • Lathe between-centers work
  • Drill entry / spot drilling on CNC
  • Milling setup & edge finding
  • Student / hobby lathe projects

Not sure Type A or Type B? Send us your workpiece photo + material on WhatsApp — we'll recommend a type within 2 hours.

Center Drill vs Other Tool Families

A center drill creates a 60° conical center hole — not a through-hole. For through-holes, see the HRC60 3D / 5D / 8D carbide drill family. For insert-based deep holes, see the indexable drill families. All siblings share the same /collections/drill parent hub.

SP Insert Drills — 55° positive trigon (stainless / aluminum / mild steel)

WC Insert Drills — 80° trigon negative rake (steel / cast iron / high MRR)

Application Spotlight

Lathe Between-Centers Turning

Center drill creates the 60° center hole for the lathe dead center / live center. Standard for any shaft, axle, or workpiece that needs to be turned between centers.

Drill Entry / Spot Drilling

Center drill before the main twist drill prevents the drill from walking on curved or angled surfaces. Essential on shafts, plates, and cast iron.

Milling Setup / Edge Finding

Center drill to create a starting point for edge finder or probe. Prevents the probe from sliding on smooth surfaces.

Tool & Die Repair

Re-centering worn or damaged center holes in shafts, arbors, and tool holders. Use Type B for hardened tool steel to avoid edge chipping.

Grinding Between Centers

Center drill to enable cylindrical grinding between centers. Match the grinder's center type (60° dead or live center).

Hobby / Student Lathe

Entry-level lathe work — pen turning, small parts, model engineering. 1 piece Type A is enough for most hobby needs.

Ordering Guide — Type A vs Type B

Type Recommended For Price
Type A General centering ≤ HRC55 — carbon steel, mild stainless, aluminum, cast iron. 90% of CNC work. $28.34
Type B Harder materials (≤ HRC55 with interrupted cuts) — protects cutting edge from chipping on entry/exit $37.14
For through-holes Use HRC60 3D / 5D / 8D carbide drill family $50–$650+
For deep holes (≥ 5D) Use 12D Saber Tooth or indexable insert drill $80–$2,275+

Frequently Asked Questions

What's the difference between Type A and Type B center drills?

Type A has a plain 60° pilot drill with no protective chamfer — standard for general centering on steel, stainless, aluminum, and cast iron at ≤ HRC55. Type B adds a 90° protective chamfer at the cutting edge, which prevents edge chipping on harder materials or interrupted cuts. For 90% of CNC work, Type A is sufficient and cheaper.

Why 60° tip angle specifically?

The 60° tip angle is the international standard for center drills (DIN 333, ISO 6411, GB 6078). It matches the 60° point angle of common lathe dead / live centers, allowing the same workpiece to be turned between centers without re-centering. Other angles (82°/90°/120°/130°) are used for countersinking or drilling — not center holes.

What holder / chuck do I need for a center drill?

Use a standard ER collet chuck (ER20 / ER25 for body diameter 6.3–10 mm, ER32 for 12.5–20 mm) or a 3-jaw chuck on a lathe. The body diameter matches standard collet sizes. Hydraulic or shrink-fit chucks are not needed for centering — the radial load is low.

📦 Do you ship to my country? How fast?

Yes — we ship globally from Hangzhou, China via DHL / UPS / FedEx. Standard transit is 3–7 business days to most countries in North America, Europe, Asia-Pacific, and the Middle East. Shipping cost is calculated at checkout based on weight and destination; tracking number is emailed within 24 hours of dispatch.

🛒 Can I order just 1 piece? Is there a minimum order?

Yes — no MOQ. Order 1 piece at $28.34 (Type A) or $37.14 (Type B), 2–9 pieces at 6% OFF (auto-discount at checkout), 10+ pieces at 12% OFF. Whether you're turning one shaft, setting up one tool, or restocking a workshop, you're welcome.

↩️ What's your return / refund policy?

Unopened, unused stock can be returned within 7 days of delivery for a full refund (buyer pays return shipping). Defective or wrong items are replaced at our cost. WhatsApp us with your order number and a photo — we respond within 2 hours on workdays.

Need a Custom Center Drill Size or Bulk Quote?

BEYOND engineers respond same-day for center drill specs (DIN 333 Form A or B), custom body diameters, and bulk pricing for 10+ pieces (12% off). Reach our team on WhatsApp or email — we ship from Hangzhou via DHL / UPS / FedEx with 3–7 day transit to most countries.
