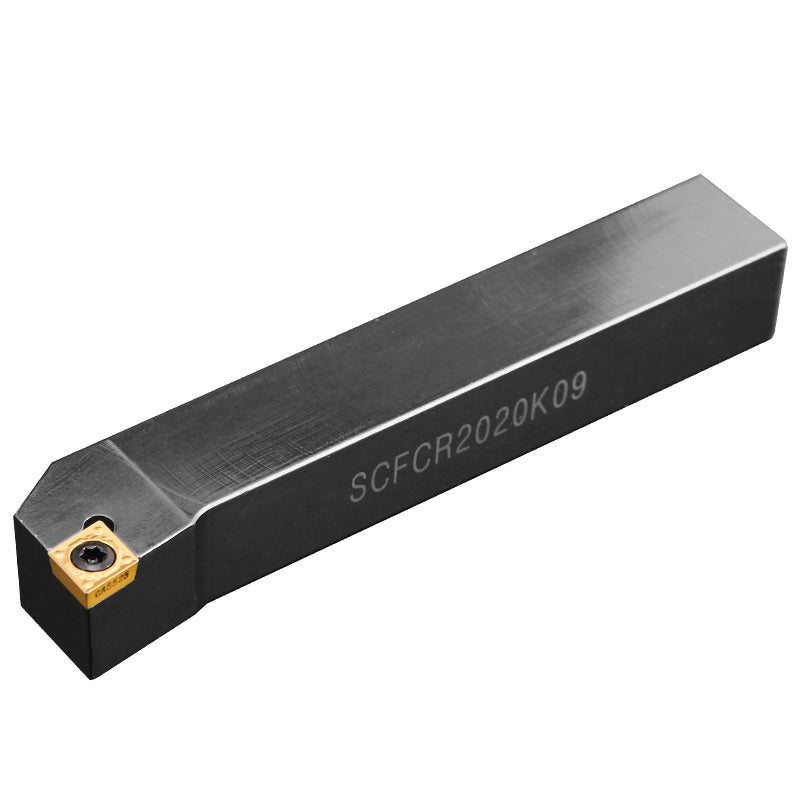

Beyond SCFCR2020K09 Right Hand Indexable Turning Tool Holder 20x20mm Shank
$22.83 USD
⚠️ PRODUCTION NOTICE FOR MACHINISTS: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual illustration only. All cutting inserts must be purchased separately. BEYOND SCFCR2020K09...
Beyond SCFCL2020K09 Left Hand Indexable Turning Tool Holder 20x20mm Shank
$22.83 USD
⚠️ PRODUCTION NOTICE FOR MACHINISTS: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual illustration only. All cutting inserts must be purchased separately. BEYOND SCFCL2020K09...
Beyond SCFCR2020K12 Right Hand Indexable Turning Tool Holder 20x20mm Shank
$22.83 USD
⚠️ PRODUCTION NOTICE FOR MACHINISTS: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual illustration only. All cutting inserts must be purchased separately. BEYOND SCFCR2020K12...
BEYOND SCFCR1212H06 Right-Hand Indexable Turning Tool Holder for CCMT 0602
$14.67 USD
⚠️ Important Tooling Notice: The carbide turning insert shown installed in our product photography is for visual demonstration purposes only. This indexable tool holder is sold standalone; cutting inserts are...
Beyond SCFCL2020K12 Left Hand Indexable Turning Tool Holder 20x20mm Shank
$22.83 USD
⚠️ MACHINING PRODUCTION NOTICE: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual demonstration only. All inserts must be purchased separately. BEYOND SCFCL2020K12 Left-Hand Indexable...
Beyond SCFCL1212H06 Left Hand Indexable Turning Tool Holder 12x12mm Shank
$16.14 USD
⚠️ PRODUCTION NOTICE FOR MACHINISTS: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual illustration only. All cutting inserts must be purchased separately. BEYOND SCFCL1212H06...
Beyond SCFCR1616H09 Right Hand Indexable Turning Tool Holder 16x16mm Shank
$19.61 USD
⚠️ IMPORTANT PRODUCTION NOTICE: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual illustration only. All indexable cutting inserts must be purchased separately. BEYOND SCFCR1616H09...
Beyond SCFCL1616H09 Left Hand Indexable Turning Tool Holder 16x16mm Shank
$19.61 USD
⚠️ PRODUCTION NOTICE FOR MACHINISTS: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual illustration only. All cutting inserts must be purchased separately. BEYOND SCFCL1616H09...
Beyond SCFCR2525M09 Right Hand Indexable Turning Tool Holder 25x25mm Shank
$33.16 USD
⚠️ PRODUCTION NOTICE FOR MACHINISTS: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual illustration only. All cutting inserts must be purchased separately. BEYOND SCFCR2525M09...
Beyond SCFCL2525M09 Left Hand Indexable Turning Tool Holder 25x25mm Shank
$33.16 USD
⚠️ PRODUCTION NOTICE FOR MACHINISTS: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual illustration only. All cutting inserts must be purchased separately. BEYOND SCFCL2525M09...
BEYOND SCGCR1212H09 Right-Hand Indexable Turning Tool Holder for CCMT 09T3
$14.67 USD
⚠️ Important Tooling Notice: The carbide turning insert shown installed in our product photography is for visual demonstration purposes only. This indexable tool holder is sold standalone; cutting inserts are...
Beyond SCFCR2525M12 Right Hand Indexable Turning Tool Holder 25x25mm Shank
$33.16 USD
⚠️ PRODUCTION NOTICE FOR MACHINISTS: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual illustration only. All cutting inserts must be purchased separately. BEYOND SCFCR2525M12...
Beyond SCFCR1212H09 Right Hand Indexable Turning Tool Holder 12x12mm Shank
$16.14 USD
⚠️ PRODUCTION NOTICE FOR MACHINISTS: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual illustration only. All cutting inserts must be purchased separately. BEYOND SCFCR1212H09...
Beyond SCFCL2525M12 Left Hand Indexable Turning Tool Holder 25x25mm Shank
$33.16 USD
⚠️ MACHINING PRODUCTION NOTICE: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual demonstration only. All inserts must be purchased separately. BEYOND SCFCL2525M12 Left-Hand Indexable...
Beyond SCFCL1212H09 Left Hand Indexable Turning Tool Holder 12x12mm Shank
$16.14 USD
⚠️ PRODUCTION NOTICE FOR MACHINISTS: The indexable carbide cutting insert shown mounted in the toolholder pocket is for visual illustration only. All cutting inserts must be purchased separately. BEYOND SCFCL1212H09...
BEYOND SCFCR/L Screw-Clamp CNC Turning Tool Holders
High-precision external round shank tool holders with screw-clamp insert mounting. Compatible with ISO-standard inserts, designed for turning steel, stainless steel, cast iron, and alloy materials.
Available Models and ISO Specifications
| Model | Clamping Method | Insert Shape | Holder Style | Clearance Angle | Hand | Shank Height (mm) | Shank Width (mm) | Holder Length | Insert Cutting Edge Length |
|---|---|---|---|---|---|---|---|---|---|
| SCFCR1212H06 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Right-hand (R) | 12 | 12 | H | 06 |
| SCFCL1212H06 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Left-hand (L) | 12 | 12 | H | 06 |
| SCFCR1212H09 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Right-hand (R) | 12 | 12 | H | 09 |
| SCFCL1212H09 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Left-hand (L) | 12 | 12 | H | 09 |
| SCFCR1616H09 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Right-hand (R) | 16 | 16 | H | 09 |
| SCFCL1616H09 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Left-hand (L) | 16 | 16 | H | 09 |
| SCFCR2020K09 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Right-hand (R) | 20 | 20 | K | 09 |
| SCFCL2020K09 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Left-hand (L) | 20 | 20 | K | 09 |
| SCFCR2525M09 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Right-hand (R) | 25 | 25 | M | 09 |
| SCFCL2525M09 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Left-hand (L) | 25 | 25 | M | 09 |
| SCFCR2020K12 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Right-hand (R) | 20 | 20 | K | 12 |
| SCFCL2020K12 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Left-hand (L) | 20 | 20 | K | 12 |
| SCFCR2525M12 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Right-hand (R) | 25 | 25 | M | 12 |
| SCFCL2525M12 | Screw-Clamp (S) | Round (C) | External (F) | 7° Positive (C) | Left-hand (L) | 25 | 25 | M | 12 |
