BEYOND S32T-MVXNR16 (1-1/4" Shank) Indexable Internal Boring Bar | 32mm CNC Lathe Turning Tool Holder
$54.24 USD
BEYOND S32T-MVXNR16 Right-Hand Indexable Internal Boring Bar (1-1/4" Shank) for High-Rigidity 95° CNC Lathe Counterboring and Deep Hole Machining ⚠️ INDUSTRIAL PACKAGING NOTICE: The indexable carbide insert shown mounted inside...
BEYOND S32T-MVXNL16 (1-1/4" Shank) Indexable Internal Boring Bar | 32mm CNC Lathe Turning Tool Holder
$54.24 USD
BEYOND S32T-MVXNL16 Left-Hand Indexable Internal Boring Bar (1-1/4" Shank) for High-Rigidity 95° CNC Lathe Counterboring and Deep Hole Machining ⚠️ INDUSTRIAL PACKAGING NOTICE: The indexable carbide insert shown mounted inside...
BEYOND S25S-MVXNR16 (1" Shank) Indexable Internal Boring Bar | 25mm CNC Lathe Turning Tool Holder
$31.20 USD
BEYOND S25S-MVXNR16 Right-Hand Indexable Internal Boring Bar (1" Shank) for High-Rigidity 95° CNC Lathe Counterboring and Deep Hole Machining ⚠️ INDUSTRIAL PACKAGING NOTICE: The indexable carbide insert shown mounted inside...
BEYOND S25S-MVXNL16 (1" Shank) Indexable Internal Boring Bar | 25mm CNC Lathe Turning Tool Holder
$31.20 USD
BEYOND S25S-MVXNL16 Left-Hand Indexable Internal Boring Bar (1" Shank) for High-Rigidity 95° CNC Lathe Counterboring and Deep Hole Machining ⚠️ INDUSTRIAL PACKAGING NOTICE: The indexable carbide insert shown mounted inside...
BEYOND S20R-MVXNL16 (20mm / 0.787" Shank) Indexable Internal Boring Bar | Left-Hand 117.5° CNC Lathe Profiling Tool Holder
$21.10 USD
BEYOND S20R-MVXNL16 Left-Hand Indexable Internal Boring Bar (20mm Shank) for High-Precision 117.5° CNC Lathe Internal Profiling, Reverse Copy-Turning, and Deep Back-Boring Operations ⚠️ INDUSTRIAL PACKAGING NOTICE: The indexable carbide insert...

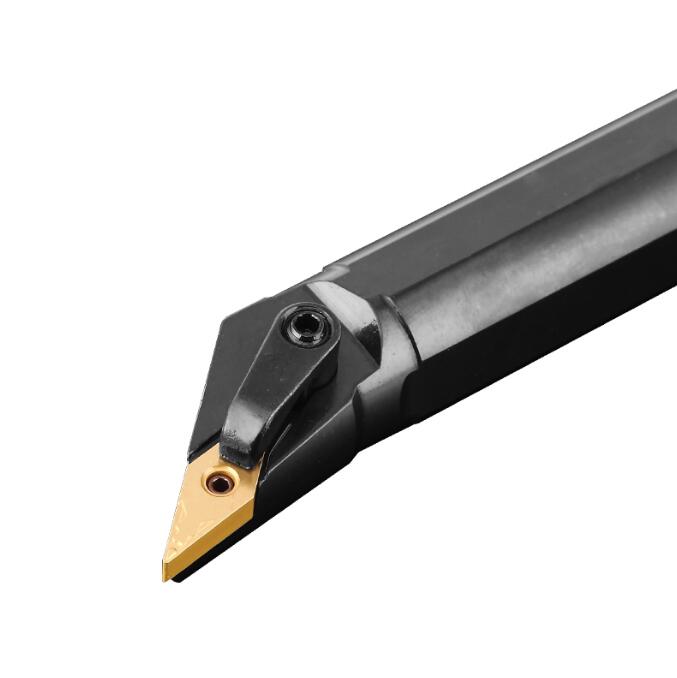

BEYOND MVXNR/L CNC Boring Bar – Steel Shank, M Clamp, 93° Cutting Angle, VNMG Inserts
The BEYOND MVXNR/L external turning boring bar series provides precise and stable CNC machining. Constructed with a rigid steel shank, M-type clamp with lock pin, and a 93° cutting edge angle (X), this series is compatible with VNMG16 inserts for medium to finishing operations on steel, stainless steel, alloy steel, and cast iron.
Key Features
- Steel shank (ISO “S” type) for maximum rigidity
- M-type clamping system (Clamp + Lock Pin)
- Compatible with VNMG16xx inserts
- 93° cutting edge angle (ISO code X)
- 0° negative relief angle (N)
- Right-hand (R) and left-hand (L) versions available
- ISO-standard coding ensures global interchangeability
ISO Code Explanation
| Symbol | Meaning |
|---|---|
| S | Steel shank |
| 20 / 25 / 32 | Bar diameter (mm) |
| R / S / T | Bar length: R=200mm, S=250mm, T=300mm |
| M | Clamp + Lock Pin clamping system |
| V | Insert shape: 35° diamond |
| X | Cutting edge angle: 93° |
| N | Relief angle: 0° negative |
| R / L | Right-hand / Left-hand tool |
| 16 | Insert cutting-edge length for VNMG16 series |
Available Models & Specifications
| Model | Shank Diameter (mm) | Overall Length (mm) | Insert Type | Clamping | Hand |
|---|---|---|---|---|---|
| S20R-MVXNR16 | 20 | 200 | VNMG1604xx | M Clamp + Lock Pin | Right |
| S20R-MVXNL16 | 20 | 200 | VNMG1604xx | M Clamp + Lock Pin | Left |
| S25S-MVXNR16 | 25 | 250 | VNMG1604xx | M Clamp + Lock Pin | Right |
| S25S-MVXNL16 | 25 | 250 | VNMG1604xx | M Clamp + Lock Pin | Left |
| S32T-MVXNR16 | 32 | 300 | VNMG1604xx | M Clamp + Lock Pin | Right |
| S32T-MVXNL16 | 32 | 300 | VNMG1604xx | M Clamp + Lock Pin | Left |
Applications
- External turning
- Profiling
- Facing
- Medium to finishing operations
- General CNC lathe machining
