BEYOND S25S-SCZCR09 Internal Boring Bar 25mm Shank CNC Lathe Turning Tool Holder Right Hand
$33.16 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric clearance,...
BEYOND S25S-SCZCL09 Internal Boring Bar 25mm Shank CNC Lathe Turning Tool Holder Left Hand
$33.16 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric clearance,...
BEYOND S20R-SCZCR09 Internal Boring Bar 20mm Shank CNC Lathe Turning Tool Holder Right Hand
$21.90 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric clearance,...
BEYOND S20R-SCZCL09 Internal Boring Bar 20mm Shank CNC Lathe Turning Tool Holder Left Hand
$21.90 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric clearance,...
BEYOND S16Q-SCZCR09 Internal Boring Bar 16mm Shank CNC Lathe Turning Tool Holder Right Hand
$18.52 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric clearance,...
BEYOND S16Q-SCZCL09 Internal Boring Bar 16mm Shank CNC Lathe Turning Tool Holder Left Hand
$18.52 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric clearance,...
BEYOND S12M-SCZCR06 Internal Boring Bar 12mm Shank CNC Lathe Turning Tool Holder Right Hand
$16.14 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric clearance,...
BEYOND S12M-SCZCL06 Internal Boring Bar 12mm Shank CNC Lathe Turning Tool Holder Left Hand
$16.14 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric clearance,...
BEYOND S10K-SCZCR06 Internal Boring Bar 10mm Shank CNC Lathe Turning Tool Holder Right Hand
$14.85 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric clearance,...
BEYOND S10K-SCZCL06 Internal Boring Bar 10mm Shank CNC Lathe Turning Tool Holder Left Hand
$14.85 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric clearance,...
BEYOND S08K-SCZCR06 Internal Boring Bar 8mm Shank 125mm Length Screw Clamped Right Hand 90-Degree CCMT 0602 Lathe Facing Turning Tool Holder
$13.50 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric profiling...
BEYOND S08K-SCZCL06 Internal Boring Bar 8mm Shank CNC Lathe Turning Tool Holder Left Hand
$14.85 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images showing a mounted insert are provided strictly to illustrate geometric clearance,...

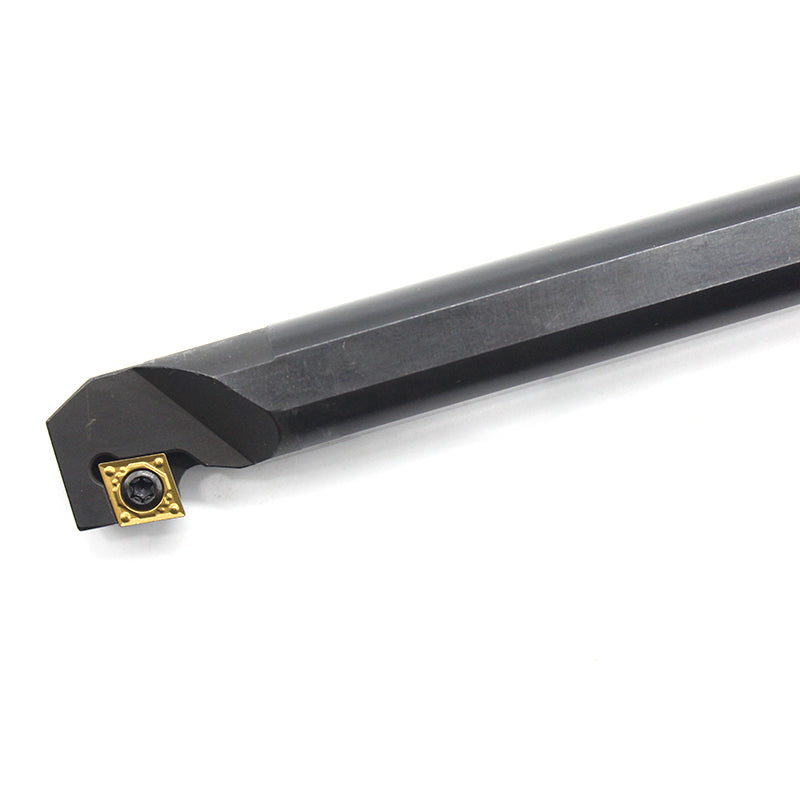

BEYOND SCZCR/L CNC Boring Bar – Screw-On Clamping | Compatible with CCMT Inserts
The BEYOND SCZCR/L boring bar series is designed for high-precision internal turning applications. It features a steel shank (ISO Type S), a secure Screw-On clamping system, and is fully compatible with CCMT indexable inserts. According to ISO coding, the SCZCR/L configuration uses a 93° approach angle (Z) and a 7° positive relief angle (C), ensuring excellent insert stability and low cutting resistance.
This boring bar is suitable for machining steel, stainless steel, alloy steel, cast iron, and is widely used in CNC lathes for stable and efficient internal turning operations.
ISO Code Meaning – SCZCR/L Series
| Code | Description |
|---|---|
| S | Type of bar: Steel shank |
| 08K / 10K / 12M / 16Q / 20R / 25S | Shank diameter + bar length code |
| S | Insert clamping: Screw-On type |
| C | Insert shape: 80° diamond (CCMT) |
| Z | Approach angle: 93° |
| C | Insert relief angle: 7° positive |
| R / L | Hand of tool: Right-hand or Left-hand |
| 06 / 09 | Insert cutting edge length → CCMT0602 or CCMT0903 |
Recommended Inserts
- CCMT0602 for all “06” models
- CCMT0903 for all “09” models
SCZCR/L Boring Bar – Technical Specifications
| Model | Shank Diameter (mm) | Overall Length | Insert Type | Hand | Clamping | Approach Angle | Relief Angle |
|---|---|---|---|---|---|---|---|
| S16Q-SCZCR09 | 16 | 180 | CCMT0903 | Right | Screw | 93° | 7° |
| S16Q-SCZCL09 | 16 | 180 | CCMT0903 | Left | Screw | 93° | 7° |
| S20R-SCZCR09 | 20 | 200 | CCMT0903 | Right | Screw | 93° | 7° |
| S20R-SCZCL09 | 20 | 200 | CCMT0903 | Left | Screw | 93° | 7° |
| S25S-SCZCR09 | 25 | 250 | CCMT0903 | Right | Screw | 93° | 7° |
| S25S-SCZCL09 | 25 | 250 | CCMT0903 | Left | Screw | 93° | 7° |
| S08K-SCZCR06 | 8 | 100 | CCMT0602 | Right | Screw | 93° | 7° |
| S08K-SCZCL06 | 8 | 100 | CCMT0602 | Left | Screw | 93° | 7° |
| S10K-SCZCR06 | 10 | 100 | CCMT0602 | Right | Screw | 93° | 7° |
| S10K-SCZCL06 | 10 | 100 | CCMT0602 | Left | Screw | 93° | 7° |
| S12M-SCZCR06 | 12 | 150 | CCMT0602 | Right | Screw | 93° | 7° |
| S12M-SCZCL06 | 12 | 150 | CCMT0602 | Left | Screw | 93° | 7° |
| S16Q-SCZCR06 | 16 | 180 | CCMT0602 | Right | Screw | 93° | 7° |
| S16Q-SCZCL06 | 16 | 180 | CCMT0602 | Left | Screw | 93° | 7° |
Key Features
- ISO-standard SCZCR/L boring bar for CCMT inserts
- Screw-On clamping ensures stable insert positioning
- Rigid steel shank minimizes vibration during internal turning
- 93° approach angle suitable for general machining applications
- Available in both right-hand and left-hand configurations
- Optimized for high-precision CNC internal turning
Applications
- CNC internal turning and boring
- Machining steel, stainless steel, alloy steel, cast iron
- General-purpose turning operations
- Suitable for industrial CNC lathes and automated machining lines
