BEYOND S32T-SVUBR16 32mm Right Hand Indexable Boring Bar for VBMT 1604
$55.19 USD
⚠️ Important Tooling Notice: The carbide indexable insert shown installed in our product photography is for visual demonstration purposes only. This heavy-duty boring bar is sold standalone; cutting inserts are...
BEYOND S32T-SVUBL16 Boring Bar | CNC Internal Turning Tool Holder
$55.19 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The carbide insert shown in the product images is for spatial demonstration and application profiling context only. Indexable turning inserts are NOT included with the tool...
BEYOND S25S-SVUBR16 Boring Bar | 25mm Lathe Tool Holder for VBMT 1604
$33.16 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S25S-SVUBL16 Boring Bar | 25mm Left Hand Lathe Tool Holder
$33.16 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context only....
BEYOND S20R-SVUBR16 Boring Bar | 20mm Lathe Tool Holder for VBMT 1604
$21.90 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar head in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context...

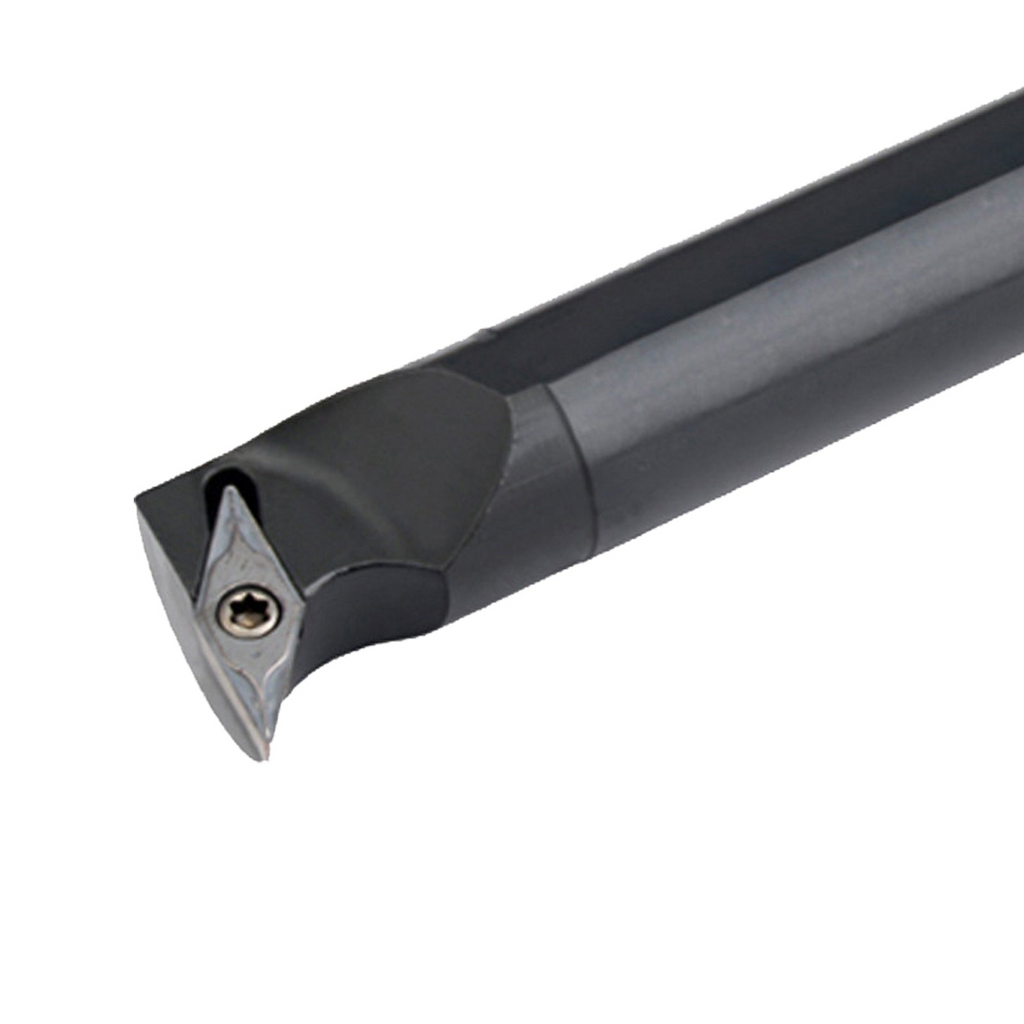

BEYOND S20R-SVUBR11 Boring Bar | 20mm Right Hand Tool Holder for VBMT 1103
$21.90 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar head in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context...
BEYOND S20R-SVUBL16 Boring Bar | 20mm Left Hand Tool Holder for VBMT 1604
$21.90 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar head in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context...
BEYOND S20R-SVUBL11 Boring Bar | 20mm Left Hand Tool Holder for VBMT 1103
$21.90 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar head in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context...
BEYOND S16Q-SVUBR11 High-Rigidity 16mm Shank 180mm Length 93-Degree Screw Clamped Right Hand CNC Lathe Internal Profiling Boring Bar for VBMT 1103 Inserts
$16.84 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images displaying a mounted insert are provided strictly to illustrate geometric profiling...
BEYOND S16Q-SVUBL11 Boring Bar | 16mm Left Hand Tool Holder for VBMT 1103
$18.52 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar head in our product imagery is for structural demonstration, clearance visualization, and reverse profiling application context...
BEYOND SVUBR/SVUBL Boring Bars – Steel Shank CNC Tool Holders
High-precision steel shank boring bars from BEYOND, featuring screw-on clamping for secure VBGT insert installation. Designed for CNC turning operations, offering reliable performance and durability.
Specifications
| Model | Type of Bar | Bar Diameter (mm) | Bar Length (mm) | Clamping Method | Insert Shape | Cutting Edge Angle | Insert Relief Angle | Hand of Tool | Insert Cutting Edge Length (mm) | Compatible Insert |
|---|---|---|---|---|---|---|---|---|---|---|
| S16Q-SVUBR11 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 93° (U) | 5° Positive (B) | R | 11 | VBGT11 |
| S16Q-SVUBL11 | Steel Shank | 16 | 180 | Screw Only | V (35° Diamond) | 93° (U) | 5° Positive (B) | L | 11 | VBGT11 |
| S20R-SVUBR11 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 93° (U) | 5° Positive (B) | R | 11 | VBGT11 |
| S20R-SVUBL11 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 93° (U) | 5° Positive (B) | L | 11 | VBGT11 |
| S20R-SVUBR16 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 93° (U) | 5° Positive (B) | R | 16 | VBGT16 |
| S20R-SVUBL16 | Steel Shank | 20 | 200 | Screw Only | V (35° Diamond) | 93° (U) | 5° Positive (B) | L | 16 | VBGT16 |
| S25S-SVUBR16 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 93° (U) | 5° Positive (B) | R | 16 | VBGT16 |
| S25S-SVUBL16 | Steel Shank | 25 | 250 | Screw Only | V (35° Diamond) | 93° (U) | 5° Positive (B) | L | 16 | VBGT16 |
| S32T-SVUBR16 | Steel Shank | 32 | 300 | Screw Only | V (35° Diamond) | 93° (U) | 5° Positive (B) | R | 16 | VBGT16 |
| S32T-SVUBL16 | Steel Shank | 32 | 300 | Screw Only | V (35° Diamond) | 93° (U) | 5° Positive (B) | L | 16 | VBGT16 |
Features
- Steel shank for high rigidity and stability.
- Screw-on clamping for secure VBGT insert installation.
- Available in multiple diameters and lengths to fit different machining needs.
- Compatible with standard VBGT inserts (last two digits indicate insert edge length).
- Positive relief angle ensures smooth cutting and long tool life.
- Perfect for CNC turning, boring, and finishing operations.
Applications
Suitable for precision turning and boring operations on steel, cast iron, alloy steel, and stainless steel workpieces. Ideal for industrial machining centers and CNC lathes.
Brand
BEYOND – Professional CNC Tool Holder Manufacturer
