Kyocera TN 60° Triangle Negative Inserts — TNMG, TNMM, TNGG, TNGA Steel & Stainless
Kyocera 60° triangle negative inserts with 3 cutting edges per insert. The TN geometry provides strong edge support with negative rake but narrower 60° point than CN 80° — versatile for general turning, profiling, and interrupted-cut conditions.
This catalog covers 116 Kyocera SKUs across TNMG, TNMM, TNGG, TNGA geometries. Available in IC 9.525 mm (TNMG 11), IC 12.7 mm (TNMG 16), IC 15.875 mm (TNMG 22) sizes with cermet (TN60), CVD steel (PR930, PR1125, PR1535), CVD stainless (CA5525, CA6525), CVD cast iron (CA4515), and ceramic (LX11) grades.
Browse the full Kyocera TN 60° triangle negative catalog, or jump to: About · Featured SKUs · All Categories · Grades · FAQ.
Kyocera-Original Inserts from Japan
All 116 inserts in this catalog are 100% genuine Kyocera — manufactured by Kyocera Corporation in Kyoto, Japan. Each insert is sourced through Kyocera's authorized distribution channels and ships in original Kyocera factory packaging with full Kyocera grade and lot traceability. Kyocera's premium carbide substrates, CVD/PVD coatings, and edge-preparation processes are specified across the full PR / TN / PV / CA / KW grade families — providing the consistent performance and reliability that has made Kyocera the leading Japanese cutting-tool brand.
About Kyocera TN 60° Triangle Negative Inserts
The TN 60° triangle negative geometry is one of the most versatile turning geometries. With 3 cutting edges per insert, 60° point angle, and negative rake, TN inserts are the workhorse for general turning and interrupted cuts.
Key advantages of the TN family:
- Versatile — 60° point provides balance of strength + profile clearance
- Multiple edge styles — TNMG (molded), TNMM (thicker), TNGG (ground), TNGA (no chipbreaker)
- Strong edge support — negative rake handles interrupted cuts
- Multiple IC sizes — 9.525 / 12.7 / 15.875 mm for various work scales
The TN family includes sub-designations:
- TNMG — 60° triangle negative w/ hole + molded chipbreaker. The workhorse standard.
- TNMM — 60° triangle negative w/ hole + molded chipbreaker + thicker section. For heavy roughing.
- TNGG — 60° triangle negative ground sharp edge for finishing work.
- TNGA — 60° triangle negative w/ hole + no chipbreaker. Ceramic or special-purpose.
Kyocera Corporation (Kyoto, Japan) is one of the world's leading manufacturers of CNC cutting tools, with over 60 years of tooling expertise. The Kyocera PR series (CVD-coated steel), TN series (cermet), PV series (PVD-coated stainless), CA series (CVD stainless / cast iron), and KW series (uncoated aluminum) represent decades of grade development.
Featured Kyocera TN Inserts
Twelve representative selections from our 116-SKU Kyocera TN 60° triangle negative catalog.

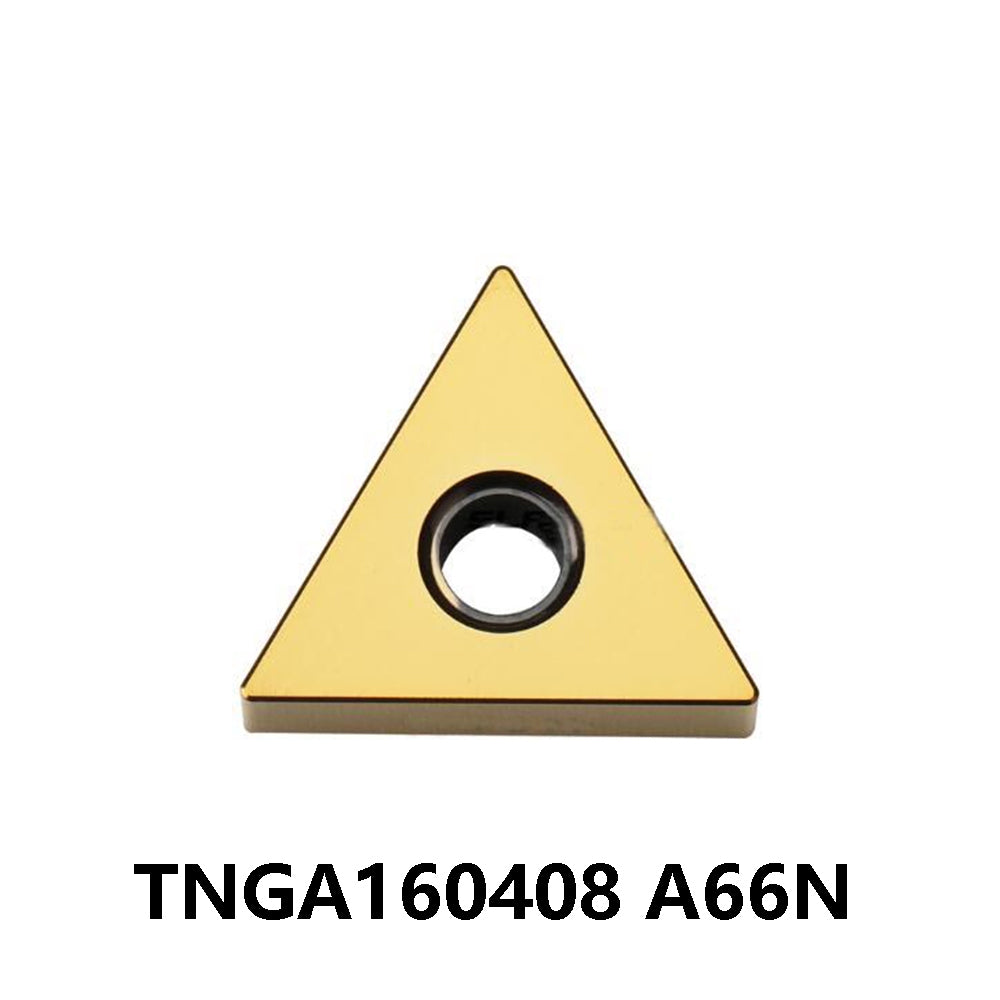

Ceramic Turning Inserts TNGA160408 A66N (10pcs) - High-Speed Machining for Hardened Steel and Cast Iron
Standard insert for general turning and interrupted cuts. 60° point + negative rake = versatile geometry.
TNGG160404R-S PR1535 (10pcs)
Standard TNGG insert for general turning and interrupted cuts. 60° point + negative rake = versatile geometry.
TNMG160404L-C PV720 (10pcs)
Standard TNMG insert for general turning and interrupted cuts. 60° point + negative rake = versatile geometry.
KYOCERA TNMG160404HQ TN620 Carbide Insert (TNMG 331HQ)
Standard KYOCE insert for general turning and interrupted cuts. 60° point + negative rake = versatile geometry.
Ceramic Turning Inserts TNGA160404 A66N (10pcs) - High-Speed Machining for Hardened Steel and Cast Iron
Standard insert for general turning and interrupted cuts. 60° point + negative rake = versatile geometry.
Ceramic Turning Inserts TNGA160412 A65 (10pcs) - High-Speed Machining for Hardened Steel and Cast Iron
Standard insert for general turning and interrupted cuts. 60° point + negative rake = versatile geometry.
Ceramic Turning Inserts TNGA160408 A65 (10pcs) - High-Speed Machining for Hardened Steel and Cast Iron
Standard insert for general turning and interrupted cuts. 60° point + negative rake = versatile geometry.
Ceramic Turning Inserts TNGA160404 A65 (10pcs) - High-Speed Machining for Hardened Steel and Cast Iron
Standard insert for general turning and interrupted cuts. 60° point + negative rake = versatile geometry.
TNGG160402R-S PR1535 (10pcs)
Standard TNGG insert for general turning and interrupted cuts. 60° point + negative rake = versatile geometry.
TNGG160404R-S PR1125 (10pcs)
Standard TNGG insert for general turning and interrupted cuts. 60° point + negative rake = versatile geometry.
TNGG160402R-S PR1125 (10pcs)
Standard TNGG insert for general turning and interrupted cuts. 60° point + negative rake = versatile geometry.
TNGG160404R-S TN6020 (10pcs)
Standard TNGG insert for general turning and interrupted cuts. 60° point + negative rake = versatile geometry.
View All 116 Kyocera TN Inserts →
All Categories — Organized by Sub-Designation & IC Size
This catalog spans 3 sub-designations with 116 total SKUs. Each sub-designation is engineered for a specific application range:
TNMG — 60° Triangle Negative w/ Hole + Molded Chipbreaker (74 SKUs)
Standard TN workhorse — molded chipbreaker for roughing to finishing across all materials.
- IC 15.875 mm — 74 SKUs with grades PV720, CA5515, TN620, TN6020, PR1535, PR1125, TN60, CA6525, CA5525, CA5535
TNGG — 60° Triangle Negative Ground Sharp Edge (37 SKUs)
Ground sharp edge precision insert for finishing steel and stainless.
- IC 15.875 mm — 37 SKUs with grades PR1535, PR1125, TN6020, TN620, PR930, TN60, PV720
TNGA — 60° Triangle Negative w/ Hole (Light Edge, No Chipbreaker) (5 SKUs)
Ceramic TNGA inserts for high-speed machining of hardened steel and cast iron (A65, A66N grades).
- IC 15.875 mm — 5 SKUs with grades A66N, A65
Kyocera Grade Family Reference
| Kyocera Grade | Type | Coating | ISO | Best For |
|---|---|---|---|---|
| TN60 | Cermet | TiC/TiN | P05-P15 | Steel finishing |
| PR1125 | CVD | TiCN/Al₂O₃ | P10-P25 | Steel high-speed |
| CA6525 | CVD | TiCN/Al₂O₃ premium | M20-M35 | Stainless premium |
| CA5525 | CVD | TiCN/Al₂O₃ thick | M15-M30 | Stainless + tough steel |
| PR1535 | CVD | TiCN/Al₂O₃ thick | P20-P35 | Premium steel |
| TN620 | CVD | TiCN/Al₂O₃ | P15-P30 | Steel turning |
| PR930 | CVD | TiCN/Al₂O₃ | P10-P30 | Steel workhorse |
| PV720 | CVD | TiCN/Al₂O₃ | P15-P30 | Steel turning |
| TN6020 | CVD | TiCN/Al₂O₃ | P15-P30 | Steel turning |
| CA5515 | CVD | TiCN/Al₂O₃ | P15-P30 | Steel turning |
| CA5535 | CVD | TiCN/Al₂O₃ | P15-P30 | Steel turning |
Kyocera vs Sandvik — Grade Cross-Reference
| Application | Kyocera Grade | Sandvik Equivalent |
|---|---|---|
| Steel finishing | TN60 | GC 1525 |
| Steel high-speed | PR1125 | GC 4315 |
| Stainless premium | CA6525 | GC 2035 |
| Stainless + tough steel | CA5525 | GC 2025 |
| Premium steel | PR1535 | GC 4335 |
| Steel | TN620 | GC 4325 |
How to Choose the Right Kyocera TN Insert
Selecting the correct TN insert involves three decisions:
- Material → Grade: Steel → PR930 / PR1125 / PR1535. Stainless → CA5525 / CA6525. Cast iron → CA4515. Hardened → LX11 ceramic.
- Sub-designation → Operation: General → TNMG. Heavy → TNMM. Finishing → TNGG. Special → TNGA.
- IC size → Tool holder: TNMG 11 (9.525 mm) → DTJNR/L 11. TNMG 16 (12.7 mm) → 16 mm seat. TNMG 22 (15.875 mm) → 22 mm seat.
Tip: For general steel work, start with TNMG160408-TM T9125-equivalent grade. For stainless, use CA5525 grade.
Frequently Asked Questions
Are these genuine Kyocera original inserts?
Yes — all 116 products in this catalog are 100% genuine Kyocera originals manufactured by Kyocera Corporation in Kyoto, Japan. Each insert ships in original Kyocera factory packaging with full traceability.
What is the difference between TN and other turning geometries?
TN 60° is between CN 80° (strongest edge, 4 edges) and SN 90° (strongest, square). TN has 3 cutting edges vs 4 for CN/SN, but with narrower 60° point for better profile clearance.
What does the IC size mean in this TN family?
IC sizes: TNMG 11 = 9.525 mm, TNMG 16 = 12.7 mm, TNMG 22 = 15.875 mm. Larger IC = thicker insert.
What tool holder do I need for TN inserts?
TN 60° triangle negative inserts fit standard DTJNR/L, MTJNR/L external turning holders tool holders. Browse our turning tool holder catalog for compatible options.
What grade should I choose for stainless steel?
For stainless steel work, Kyocera recommends CA5525 (CVD M-grade) or PV720 (PVD grade) — both provide superior wear resistance and edge security on 304/316 stainless. Choose CA5525 for heavier roughing; choose PV720 for finishing operations.
How does TN compare to the negative-rake alternative?
TN is a negative-rake insert. Compare with positive-rake TC triangle: TN has stronger edge but higher cutting forces. Use TN for general work with interrupted cuts; use TC for thin sections.
