BEYOND MWENN2020K08 Rigid 2020 CNC Lathe Neutral Face Turning Tool Holder for WNMG 0804 Indexable 80° Trigon Inserts
$22.83 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide turning insert is NOT included with this tool holder package. Product images showing a mounted carbide insert are provided strictly to demonstrate geometric...
BEYOND MWENN3232P08 Heavy-Duty 3232 CNC Lathe Neutral Face Turning Tool Holder for WNMG 0804 Indexable 80° Trigon Inserts
$57.07 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide turning insert is NOT included with this tool holder package. Product images showing a mounted carbide insert are provided strictly to demonstrate geometric...
BEYOND MWENN2525M08 Rigid 2525 CNC Lathe Neutral Face Turning Tool Holder for WNMG 0804 Indexable 80° Trigon Inserts
$33.16 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide turning insert is NOT included with this tool holder package. Product images showing a mounted carbide insert are provided strictly to demonstrate geometric...
Buy MWENN1616H08 External Tool Holder – Perfect for CNC Lathes and Machining Centers
$17.83 USD
BEYOND MWENN1616H08 MWENN 1616H08 External Turning Tools Holder MWENN1616 H08 Lathe Turning Tool Holder Carbide Inserts WNMG WNMG080404 MWENN1616H08 External Tool Holder: The Future of Precision Machining Overview Introducing the...

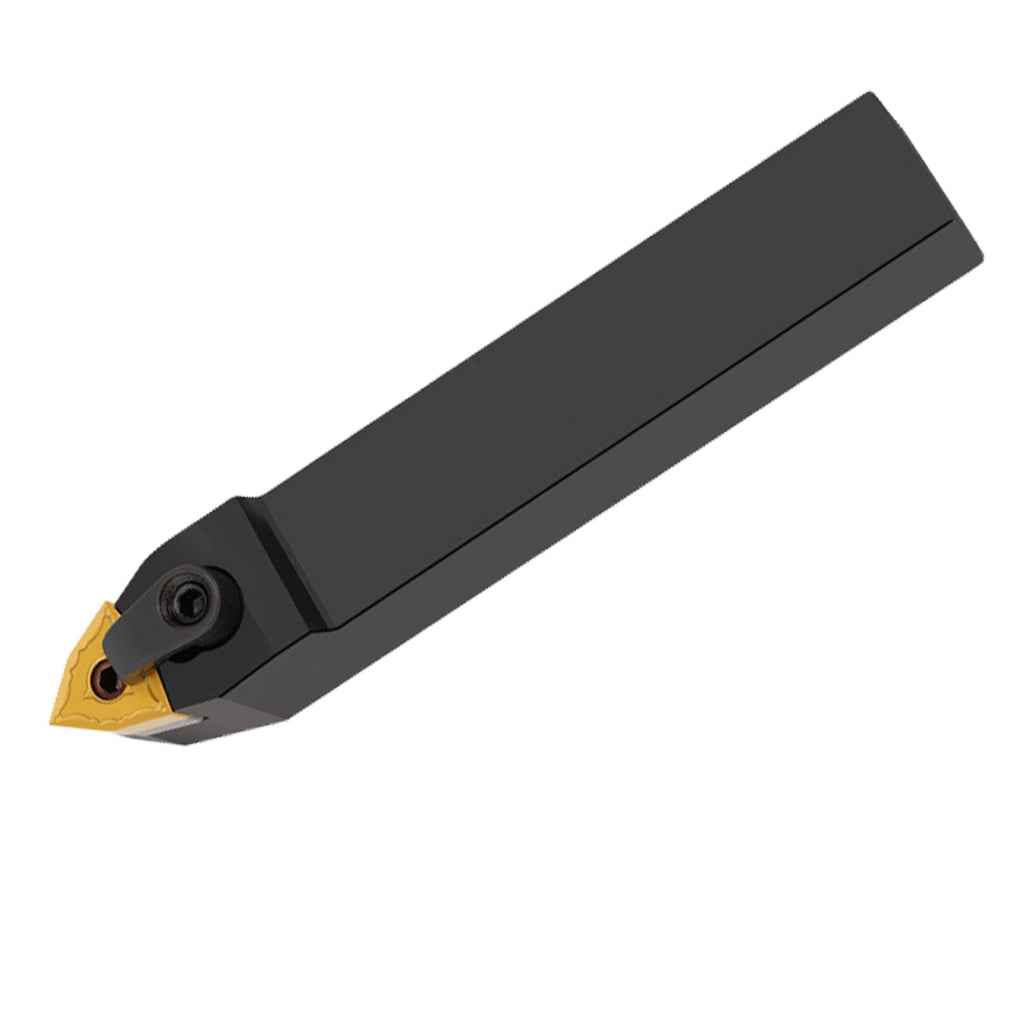

BEYOND MWENN CNC External Turning Toolholders
The BEYOND MWENN series is a high-precision external turning toolholder family using a composite multi-clamp system. It is designed for WNMG0804 carbide inserts with a 60° main angle (E). Each model follows the ISO 5-letter structural code:
- M – Multi-Clamp / Composite Clamping
- W – Insert Shape, WNMG
- E – Holder Style, Main Angle 60°
- N – Clearance Angle, Standard
- R/L – Right-Hand / Left-Hand
Shank codes follow ISO format:
- First two digits: Shank Height
- Second two digits: Shank Width
- Letter: Shank Length Standard
- Final digits: Insert Cutting Edge Length (08)
✔ Compatible Inserts
This toolholder series is compatible with the following insert type:
- WNMG0804
📌 Complete MWENN Model List and ISO-Based Technical Data
| Model | Hand | Clamp Type | Insert Shape | Holder Style | Clearance | Shank Size | Shank Standard | Insert Edge Length |
|---|---|---|---|---|---|---|---|---|
| MWENN1616H08 | R | Composite | WNMG | 60° | Standard | 16×16 | H | 08 |
| MWENN2020K08 | R | Composite | WNMG | 60° | Standard | 20×20 | K | 08 |
| MWENN2525M08 | R | Composite | WNMG | 60° | Standard | 25×25 | M | 08 |
| MWENN3232P08 | R | Composite | WNMG | 60° | Standard | 32×32 | P | 08 |
Applications
- External turning of steel, stainless steel, and cast iron
- Profiling, finishing, and medium-duty machining
- High-precision CNC lathe operations
