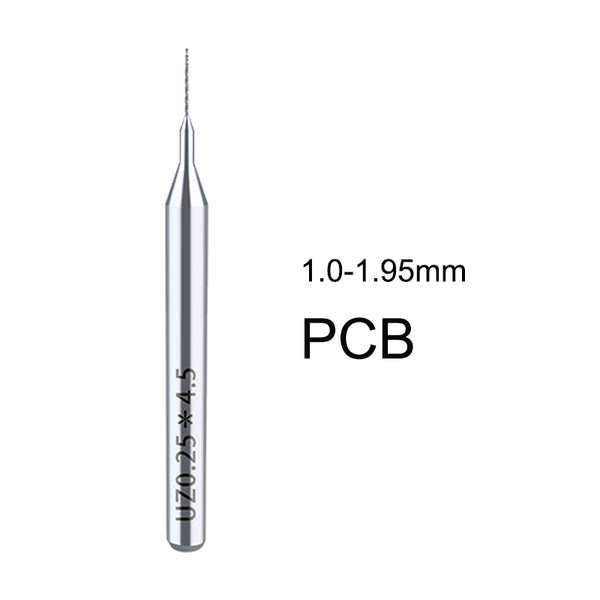

BEYOND PCB Tungsten Carbide Micro Drill Bits 1.0–1.95mm for Circuit Boards carbide end milll

BEYOND PCB Tungsten Carbide Micro Drill Bits 1.0–1.95mm for Circuit Boards carbide end milll

$60.78 USD
BEYOND PCB Tungsten Carbide Micro Drill Bits 1.0–1.95mm BEYOND uncoated PCB tungsten carbide micro drill bits are engineered for precision drilling in printed circuit boards (PCB), aluminum, copper, stainless steel,...
PCB Micro Drill Bits 0.15–0.95mm | BEYOND Carbide Tools carbide end milll

PCB Micro Drill Bits 0.15–0.95mm | BEYOND Carbide Tools carbide end milll

$60.78 USD
BEYOND PCB Tungsten Carbide Micro Drill Bits 0.15–0.95mm BEYOND PCB tungsten carbide micro drill bits are designed for high-precision drilling in printed circuit boards and metal components. These uncoated drills...

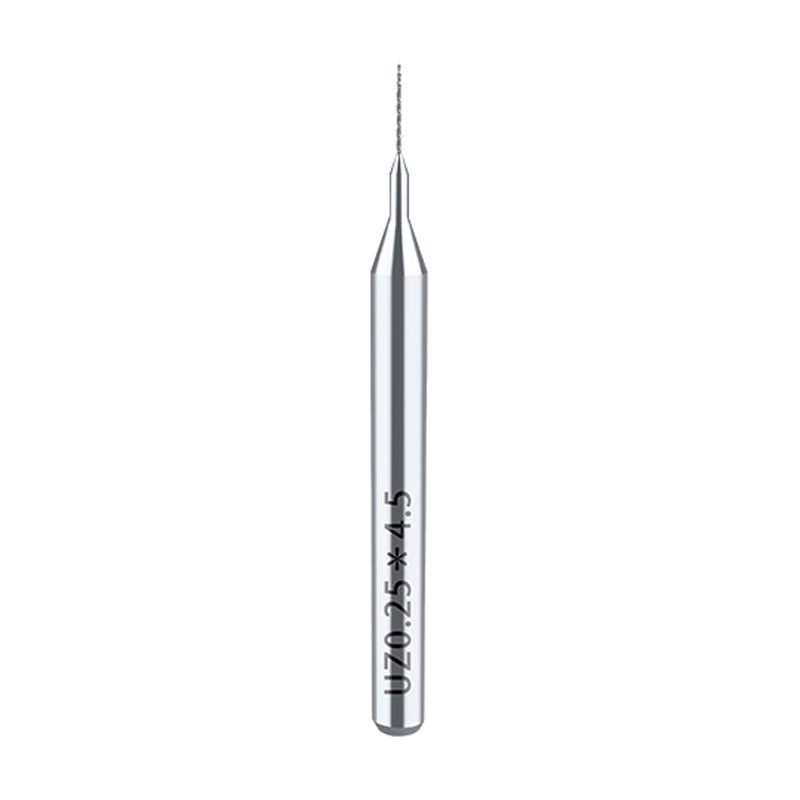

BEYOND Tungsten Carbide PCB Micro Drill · Uncoated · 3mm Shank

PCB Tungsten Carbide Micro Drill Bits — 0.15 to 3.175 mm

The BEYOND uncoated tungsten carbide PCB micro drill family for high-precision drilling of printed circuit boards, FR4, copper-clad laminates, plastic, aluminum, and copper. Optimized flute geometry prevents delamination and dust clogging at sub-1mm scale.

🟢 Trusted by small workshops, individual machinists & garage CNC users worldwide. 1 piece welcome · WhatsApp reply within 2 hours · 3–7 day global shipping via DHL / UPS / FedEx.

Diameter Range

0.15 – 3.175 mm

Primary Material

PCB / FR4 / Alu

Shank

3 mm Fixed

Coating

Uncoated

BEYOND PCB Micro Drill Family — 3 Diameter Tiers

All diameter tiers are uncoated tungsten carbide with 3mm fixed shank, optimized for PCB / circuit board / FR4 / copper-clad / plastic / aluminum drilling. Diameter tier determines which PCB application fits best.

Diameter Tier Shank Typical PCB Application Price
0.15–0.95 mm 3mm fixed Sub-1mm — micro PCB via, BGA pad, micro-via drilling $60.78
1.0–1.95 mm 3mm fixed Micro PCB through-hole, small connector pins, SMT pads $60.78
2.0–3.175 mm 3mm fixed Larger PCB through-hole, small component mount, plastic, aluminum $60.78

For steel / stainless / cast iron micro drilling, see the general micro drill family. For aluminum-optimized micro drills, see the aluminum micro family.

Why PCB Needs Dedicated Micro Drills

PCB / circuit board / FR4 / copper-clad / plastic present three unique challenges at sub-1mm scale that standard steel or aluminum drills cannot solve:

Delamination Risk

PCB substrate is layered (copper + FR4). A blunt drill tears the layers instead of cutting. Tungsten carbide with sharp geometry slices cleanly through.

Dust Clogging

PCB dust is fine and sticky — clogs the flute within 20–30 holes on standard drills. The BEYOND PCB drill has optimized flute geometry for dust evacuation.

Copper Smear

Copper-clad layers smear if drilling speed is wrong. Uncoated tungsten carbide + correct RPM produces clean hole walls without copper contamination.

Uncoated vs Nano Coated — When to Use Each

The BEYOND PCB micro drill family is uncoated by design — because the materials (PCB, FR4, plastic, copper) are soft and non-metallic, a coating provides no wear benefit and can cause contamination.

Property Uncoated (this series) Nano Coated (aluminum series)
Best for PCB, FR4, plastic, copper Aluminum, copper (long production runs)
Contamination risk None (no coating to flake off) Low (stable coating)
Cost Lower (simpler mfg) Higher (coating process)
BUE resistance Not needed for PCB/plastic Yes (anti-aluminum welding)

3mm Fixed Shank — Holder Compatibility

All diameter tiers use a 3mm fixed straight shank — the standard for micro drilling on CNC. Compatible with:

  • ER collet chuck (ER8 for Ø 0.15–1 mm, ER11 for Ø 1–3 mm) — see ER collet chucks
  • Micro drill holder (precision-ground, runout < 0.003 mm)
  • PCB-specific spindle (high-frequency 30,000+ RPM spindles for sub-0.5mm work)

⚠ Critical: Use only on CNC machining centers with high-frequency spindles (≥ 10,000 RPM, ideally 20,000+ for sub-1mm work). Do not use with hand drills, bench drills, or low-RPM drill presses — the drill will chip or break, and PCB via walls will delaminate.

Cutting Parameter Quick Guide — PCB-Optimized

PCB drilling requires high RPM, low feed, and dust evacuation. Use bottom-blow or vacuum extraction where possible. Never use hand drills.

Material Diameter Spindle RPM Feed f (mm/rev)
FR4 (standard PCB) 0.15–1 mm 20,000–40,000 0.01–0.04
FR4 (standard PCB) 1.5–3.175 mm 10,000–20,000 0.02–0.06
Copper-Clad Laminate 0.15–3 mm 15,000–30,000 0.01–0.05
Aluminum (substrate PCB) 0.5–3 mm 10,000–20,000 0.015–0.05
Plastic / Acrylic 0.5–3 mm 10,000–18,000 0.02–0.06
Pure Copper (PCB ground plane) 0.5–3 mm 8,000–15,000 0.01–0.04

For Individual Buyers & Small Workshops

You don't need to be a factory buyer. We ship 1 piece to your home, garage, or workshop — no MOQ, no pre-approval, no corporate paperwork. Perfect for PCB prototyping, student projects, and small electronics runs.

💰 Volume Discounts (auto at checkout)

  • 1 piece — list price ($60.78)
  • 2–9 pieces — 6% OFF
  • 10+ pieces — 12% OFF

📦 Shipping & Delivery

  • Shipped from Hangzhou, China
  • DHL / UPS / FedEx — 3–7 days to most countries
  • Tracked & insured; signature on delivery

💬 Pre-Sale Technical Support

  • WhatsApp reply within 2 hours (workdays)
  • Email reply same business day
  • Chinese & English supported

🎓 Perfect For

  • PCB prototyping & small batch production
  • Engineering students & capstone projects
  • Garage CNC electronics builds
  • LED / power-supply PCB assembly

Not sure which diameter to pick? Send us your PCB spec (substrate, hole count, layer count) on WhatsApp — we'll recommend a size within 2 hours.

PCB Micro Drill vs Other Drill Families

For Ø ≤ 3.175 mm on PCB / circuit board / FR4, the BEYOND PCB micro drill (this collection) is the right choice. For larger or harder materials, switch to the indexable insert drill family. All eight siblings share the same /collections/drill parent hub.

SP Insert Drills — 55° positive trigon (stainless / aluminum / mild steel)

WC Insert Drills — 80° trigon negative rake (steel / cast iron / high MRR)

Application Spotlight

PCB Micro-Via Drilling

PCB micro-via Ø 0.15–0.95 mm at 0.5–2 mm depth. Sub-1mm tolerances require tungsten carbide + 20,000+ RPM.

Through-Hole Components

PCB through-hole Ø 1.0–3.175 mm for connectors, capacitors, headers. Drill depth typically 1.6–3.2 mm.

Aluminum-Substrate PCB

LED / power-supply PCBs with aluminum substrate. Higher feed (0.015–0.05 mm/rev) than FR4 due to softer substrate.

Plastic / Acrylic Enclosure

Plastic enclosure mounting holes Ø 0.5–3 mm. Tungsten carbide prevents chip welding to cutting edge.

BGA Pad Drilling

BGA pad via drilling Ø 0.2–0.5 mm at 0.3–1 mm depth. Sub-0.5mm requires 30,000+ RPM and high-precision holder.

For Steel / Stainless

For drilling steel / stainless / cast iron, use the general micro drill family instead — uncoated tungsten carbide wears fast on hardened metal.

Ordering Guide by Diameter Tier

Diameter Recommended Series Notes
0.15–0.95 mm PCB Micro Drill Bits 0.15–0.95mm Sub-1mm — micro via / BGA pad
1.0–1.95 mm BEYOND PCB Tungsten Carbide 1.0–1.95mm Through-hole, connector pins, SMT pads
2.0–3.175 mm BEYOND Solid Carbide PCB 2.0–3.175mm Larger through-hole, plastic, aluminum substrate
For aluminum production runs Use aluminum-optimized family Same diameters, nano coated for aluminum
For steel / stainless / cast iron Use general micro family HRC55 for steel up to HRC60

Frequently Asked Questions

Why uncoated tungsten carbide for PCB?

PCB / FR4 / copper-clad / plastic are soft, non-metallic or non-ferrous materials — they don't generate enough heat to justify a coating, and a coating can flake off into the PCB via, contaminating the circuit. The BEYOND PCB drill uses ultra-fine grain uncoated tungsten carbide with optimized flute geometry for clean cuts and dust evacuation.

What RPM and feed for PCB micro-via drilling?

PCB micro-via drilling needs 20,000–40,000 RPM for Ø ≤ 1 mm. For larger through-holes (1.5–3.175 mm), 10,000–20,000 RPM is sufficient. Use 0.01–0.06 mm/rev feed. Add bottom-blow or vacuum dust extraction to prevent delamination.

Can I drill steel / stainless with the PCB drill?

Not recommended. The uncoated tungsten carbide wears fast on hardened steel. For Ø ≤ 3 mm drilling on steel / stainless, use the general micro drill family (HRC55 substrate, not aluminum-optimized but works on steel up to HRC60). For Ø > 3 mm on steel, switch to the HRC60 3D / 5D / 8D carbide family.

📦 Do you ship to my country? How fast?

Yes — we ship globally from Hangzhou, China via DHL / UPS / FedEx. Standard transit is 3–7 business days to most countries in North America, Europe, Asia-Pacific, and the Middle East. Shipping cost is calculated at checkout based on weight and destination; tracking number is emailed within 24 hours of dispatch.

🛒 Can I order just 1 piece? Is there a minimum order?

Yes — no MOQ. Order 1 piece at $60.78 list price, 2–9 pieces at 6% OFF (auto-discount at checkout), 10+ pieces at 12% OFF. Whether you're prototyping one PCB, building one enclosure, or making 500, you're welcome.

↩️ What's your return / refund policy?

Unopened, unused stock can be returned within 7 days of delivery for a full refund (buyer pays return shipping). Defective or wrong items are replaced at our cost. WhatsApp us with your order number and a photo — we respond within 2 hours on workdays.

Need a Custom PCB Drill Spec or Bulk Quote?

BEYOND engineers respond same-day for PCB drill specs, custom diameters, and bulk pricing for 10+ pieces (12% off). Reach our team on WhatsApp or email — we ship from Hangzhou via DHL / UPS / FedEx with 3–7 day transit to most countries.

💬 Chat on WhatsApp · +86 15990663752 Email · chao@cnchome-beyond.com
