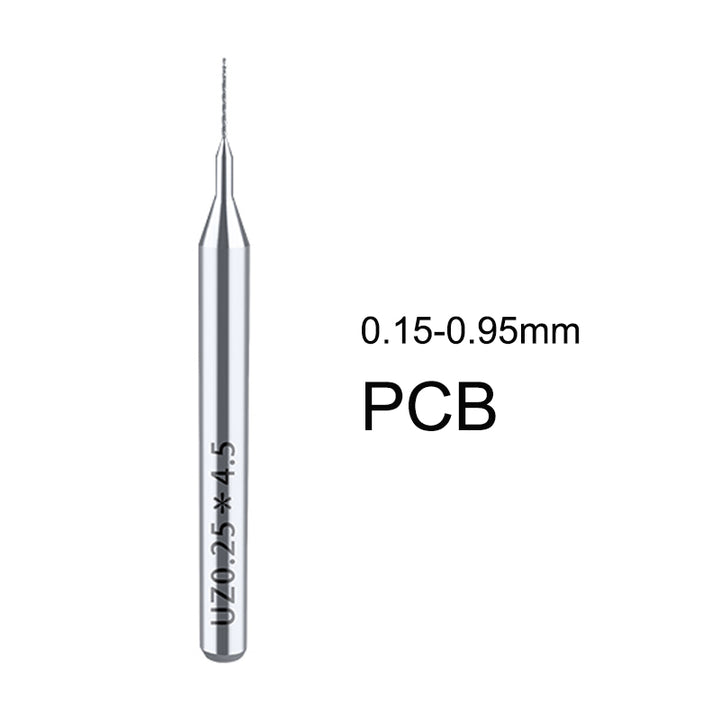

BEYOND PCB Tungsten Carbide Micro Drill Bits 0.15–0.95mm
BEYOND PCB tungsten carbide micro drill bits are designed for high-precision drilling in printed circuit boards and metal components. These uncoated drills feature ultra-sharp cutting edges and HRC55 hardness, ensuring excellent stability, precision, and long service life.
Key Features
- Diameter Range: 0.15mm–0.95mm, perfect for micro-hole drilling applications.
- Material: Solid tungsten carbide for outstanding strength and wear resistance.
- High Precision: Precision-ground geometry ensures consistent hole size and superior roundness.
- Uncoated Design: Sharp edge and smooth chip removal for clean and accurate drilling.
- Standard Shank: 3.175mm handle diameter compatible with most CNC and automatic PCB drilling machines.
- Safety Notice: Do not use with hand drills or pistol drills—only suitable for CNC drilling equipment.
Application Materials
BEYOND uncoated carbide micro drill bits are ideal for drilling:
- Printed Circuit Boards (PCB)
- Aluminum and Aluminum Alloys
- Copper and Copper Alloys
- Stainless Steel
- Cast Iron
- Mold Steel and Alloy Steel
Technical Specifications
| Item Name | BEYOND PCB Micro Drill Bits |
|---|---|
| Brand | BEYOND |
| Material | Solid Tungsten Carbide |
| Hardness | HRC55 |
| Coating | Uncoated |
| Diameter Range | 0.15mm – 0.95mm |
| Shank Diameter | 3.175mm |
| Function | High-precision micro-hole drilling |
| Recommended Equipment | CNC or automatic PCB drilling machines |
Advantages of BEYOND PCB Micro Drill Bits
- Ultra-sharp edges ensure fast drilling and low cutting resistance.
- Uncoated surface allows excellent chip evacuation and cooling.
- High concentricity design minimizes runout and tool breakage.
- Reliable performance for precision electronic and mold machining.
Usage Recommendations
For optimal performance, use stable spindle speeds and appropriate feed rates. Avoid manual drilling or excessive pressure to prevent tool damage.
Recommended Keywords for SEO
Keywords: PCB carbide micro drill bits, tungsten carbide micro drill 0.15mm, uncoated micro PCB drill, CNC micro drill for circuit boards, carbide drill 3.175mm.
Long-tail keywords: precision carbide micro drill for electronics, small hole carbide PCB drill bits 0.15–0.95mm, tungsten carbide uncoated PCB drill, BEYOND PCB carbide tool.
Traffic keywords: PCB drill bit set, micro carbide drill bits, CNC PCB tools, tungsten carbide micro drill, circuit board drilling bit.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
