BEYOND SDNCN2525M11 Neutral External Turning Tool Holder for DCMT 11T3
$33.16 USD
⚠️ IMPORTANT ORDERING NOTICE: This product listing includes the precision SDNCN2525M11 indexable turning tool holder shank, one clamping screw, and one flag wrench ONLY. The indexable carbide inserts (DCMT 11T3...
BEYOND SDNCN1616H11 Neutral External Turning Tool Holder for DCMT 11T3
$19.61 USD
⚠️ IMPORTANT ORDERING NOTICE: This product listing includes the precision SDNCN1616H11 indexable turning tool holder shank, one clamping screw, and one flag wrench ONLY. The indexable carbide inserts (DCMT 11T3...
BEYOND SDNCN1616H07 Neutral External Turning Tool Holder for DCMT 0702
$19.61 USD
⚠️ IMPORTANT ORDERING NOTICE: This product listing includes the precision BEYOND SDNCN1616H07 indexable turning tool holder shank, one insert locking screw, and one flag Torx wrench ONLY. The indexable carbide...
BEYOND SDNCN1212H11 Neutral External Turning Tool Holder for DCMT 11T3
$16.14 USD
⚠️ IMPORTANT ORDERING NOTICE: This product listing includes the precision SDNCN1212H11 indexable turning tool holder shank, one clamping screw, and one flag wrench ONLY. The indexable carbide inserts (DCMT 11T3...

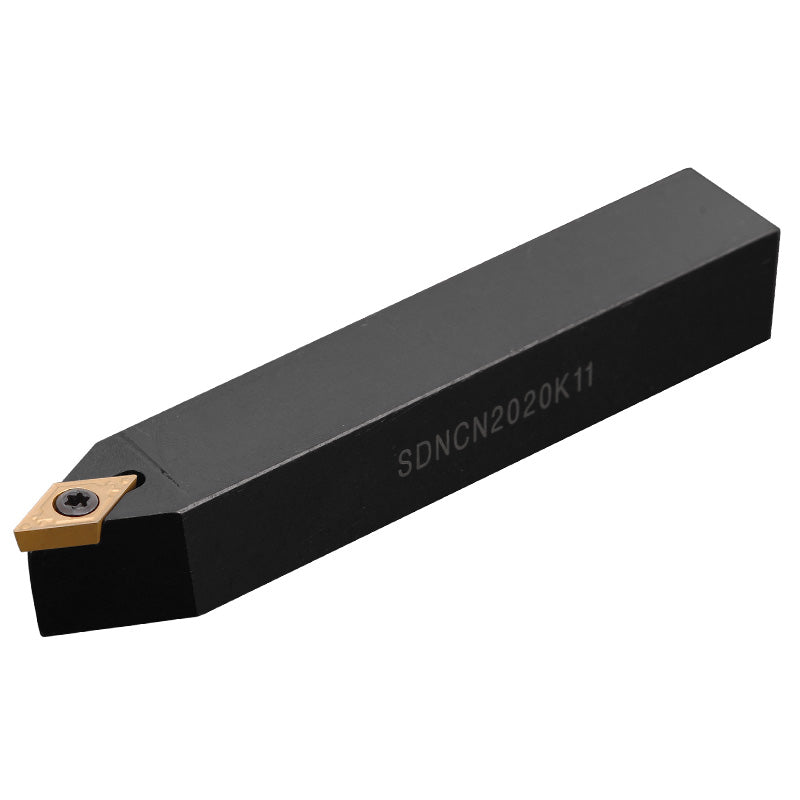

BEYOND SDNCN2020K11 Neutral External Turning Tool Holder for DCMT 11T3
$22.83 USD
⚠️ IMPORTANT ORDERING NOTICE: This product listing includes the precision SDNCN2020K11 indexable turning tool holder shank, one clamping screw, and one flag wrench ONLY. The indexable carbide inserts (DCMT 11T3...
BEYOND SDNCN1212H07 Turning Tool Holder for DCMT0702 Inserts
$16.14 USD
⚠️ NOTE: This listing includes the tool holder, shim, screw, and wrench only. Carbide inserts are NOT included and must be purchased separately. BEYOND SDNCN1212H07 External Indexable Turning Tool Holder...
BEYOND SDNCN1010H07 Neutral Indexable Turning Tool Holder for DCMT 0702
$13.50 USD
⚠️ Important Tooling Notice: The carbide turning insert shown installed in our product photography is for visual demonstration purposes only. This indexable tool holder is sold standalone; cutting inserts are...
BEYOND SDNCN0808H07 Turning Tool Holder for DCMT0702 Inserts
$16.14 USD
⚠️ IMPORTANT NOTICE: This product listing is for the tool holder body, clamping screw, shim, and insert wrench only. The carbide cutting inserts shown in any product photographs are for...
BEYOND SDNCN External Turning Toolholder
The BEYOND SDNCN series is a high-precision screw-clamp external turning toolholder designed for stable machining performance. This version follows the correct ISO interpretation for external turning holders: the insert designation is composed of the 2nd letter + 4th letter + last two digits.
Correct ISO Code Structure
| Position | Description | Example (SDNCN1212H07) |
|---|---|---|
| 1st Letter | Clamping Method | S = Screw Clamp |
| 2nd Letter | Insert Shape | D = 55° Diamond |
| 3rd Letter | Cutting Edge Angle | N = 62.5° |
| 4th Letter | Clearance Angle | C = 7° |
| 5th Letter | Hand of Toolholder | N = Neutral |
| Next 4 digits | Shank Size | 1212 = 12 × 12 mm |
| Length Letter | Holder Length | H / K / M |
| Last 2 digits | Insert Size | 07 |
How to Identify Insert Type
Insert Type = 2nd Letter + 4th Letter + Last Two Digits
Example: SDNCN1212H07 → D + C + 07 = DC07
Cutting Edge Angle Code Table
| Code | Angle |
|---|---|
| N | 62.5° |
| D | 45° |
| E | 60° |
| F | 90° |
| K | 75° |
| L | 95° |
| T | 60° |
| V | 72.5° |
| Z | 93°–95° |
Available Models
| Model | Shank Size | Insert Type | Cutting Edge Angle | Holder Length |
|---|---|---|---|---|
| SDNCN0808H07 | 8 × 8 mm | DC07 | 62.5° | H |
| SDNCN1010H07 | 10 × 10 mm | DC07 | 62.5° | H |
| SDNCN1212H07 | 12 × 12 mm | DC07 | 62.5° | H |
| SDNCN1616H07 | 16 × 16 mm | DC07 | 62.5° | H |
| SDNCN1212H11 | 12 × 12 mm | DC11 | 62.5° | H |
| SDNCN1616H11 | 16 × 16 mm | DC11 | 62.5° | H |
| SDNCN2020K11 | 20 × 20 mm | DC11 | 62.5° | K |
| SDNCN2525M11 | 25 × 25 mm | DC11 | 62.5° | M |
