BEYOND MSBNR2525M12 CNC Lathe Toolholder 25x25mm Right-Hand Turning Bar
$33.16 USD
BEYOND MSBNR2525M12 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSBNR3232P15 CNC Lathe Toolholder 32x32mm Right-Hand Turning Bar
$57.07 USD
BEYOND MSBNR3232P15 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSBNR2525M15 CNC Lathe Toolholder 25x25mm Right-Hand Turning Bar
$33.16 USD
BEYOND MSBNR2525M15 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSBNR1616H12 CNC Lathe Toolholder 16x16mm Right-Hand Turning Bar
$19.61 USD
BEYOND MSBNR1616H12 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSBNL3232P15 CNC Lathe Toolholder 32x32mm Left-Hand Turning Bar
$57.07 USD
BEYOND MSBNL3232P15 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSBNL2525M15 CNC Lathe Toolholder 25x25mm Left-Hand Turning Bar
$33.16 USD
BEYOND MSBNL2525M15 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSBNR3232P19 CNC Lathe Toolholder 32x32mm Right-Hand Turning Bar
$57.07 USD
BEYOND MSBNR3232P19 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSBNR3232P12 CNC Lathe Toolholder 32x32mm Right-Hand Turning Bar
$57.07 USD
BEYOND MSBNR3232P12 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSBNR2020K12 CNC Lathe Toolholder 20x20mm Right-Hand Turning Bar
$22.83 USD
BEYOND MSBNR2020K12 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSBNL3232P19 CNC Lathe Toolholder 32x32mm Left-Hand Turning Bar
$57.07 USD
BEYOND MSBNL3232P19 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSBNL3232P12 CNC Lathe Toolholder 32x32mm Left-Hand Turning Bar
$57.07 USD
BEYOND MSBNL3232P12 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSBNL2020K12 CNC Lathe Toolholder 20x20mm Left-Hand Turning Bar
$22.83 USD
BEYOND MSBNL2020K12 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSBNL2525M12 CNC Lathe Toolholder 25x25mm Left-Hand Turning Bar
$33.16 USD
BEYOND MSBNL2525M12 Indexable CNC External Turning Toolholder ⚠️ PRODUCTION OVERVIEW NOTE: Please note that all carbide inserts shown in our product photography are displayed strictly for tooling assembly visualization and...
BEYOND MSBNL1616H12 External Tool Holder – Precision Cutting & Multi-Lock Design
$17.83 USD
BEYOND MSBNL 1616H12 External Turning Tools MSBNL1616H12 MSBNL1616 H12 CNC Lathe Cutter Holder Carbide Inserts SNMG SNMG120404 MSBNL1616H12 Information Overview Overview Introducing the MSBNL1616H12 External Tool Holder, the ultimate solution...

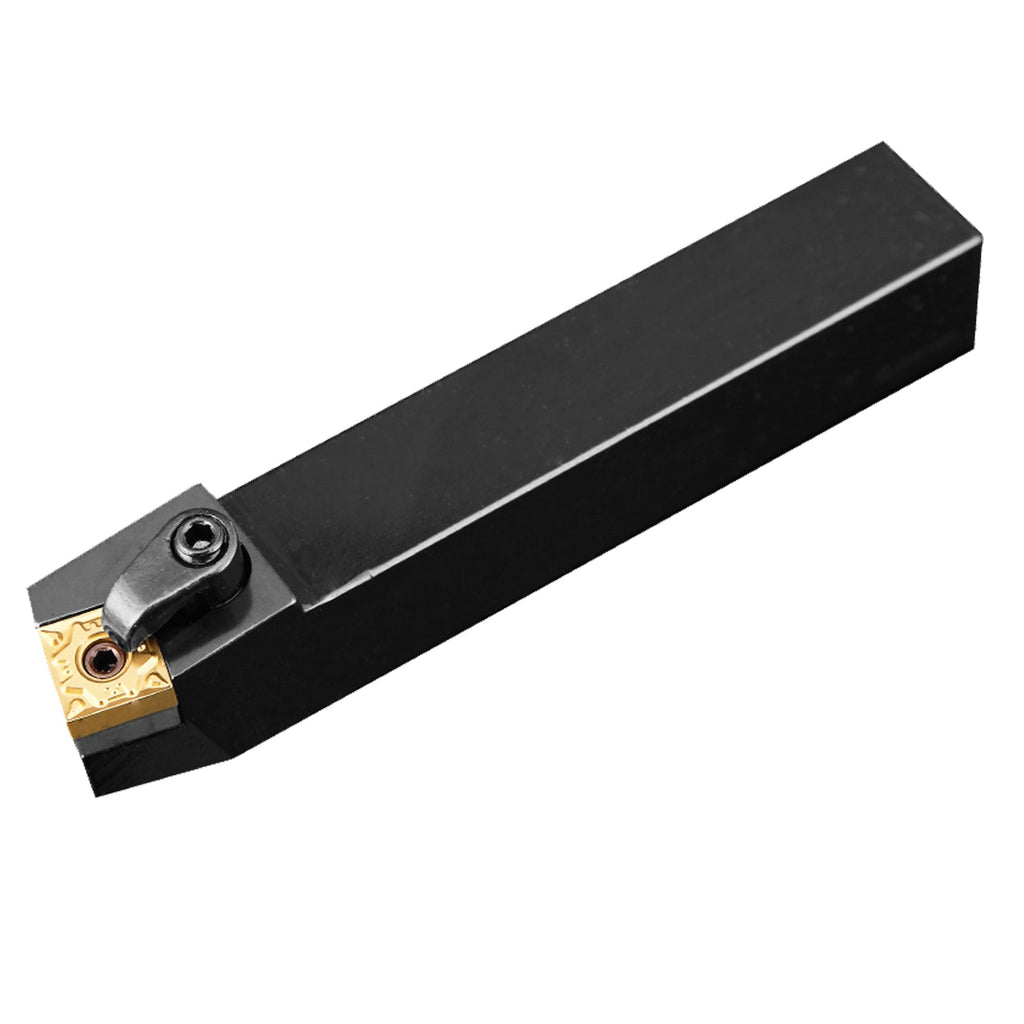

BEYOND MSBNR/L External Turning Toolholders
The BEYOND MSBNR/L series external turning toolholders are designed for SNMG inserts, featuring an M-type clamping and lock-pin mechanism for excellent insert stability, rigidity and reliable machining performance. The ISO-standard toolholder code ensures full compatibility and predictable cutting geometry.
Insert Compatibility
Insert Type: SNMG + last two digits of holder model
Entering Angle: 75° (ISO code letter B)
ISO Code Structure
- 1st Letter: S = Clamping Method (M-type clamp + lock pin)
- 2nd Letter: B = Insert Shape
- 3rd Letter: B = Cutting Edge Angle = 75°
- 4th Letter: N = Insert Relief Angle (0° clearance)
- 5th Letter: R / L = Hand of Tool
- First 2 Digits: Height of Shank (mm)
- Second 2 Digits: Width of Shank (mm)
- Length Code Letter: Defines holder length (A–X)
- Final Digits: Insert Cutting Edge Length
Product Specifications
| Model | Hand | Shank Height (mm) | Shank Width (mm) | Length Code | Holder Length (mm) | Insert Cutting Edge | Suitable Insert | Entering Angle |
|---|---|---|---|---|---|---|---|---|
| MSBNR2525M15 | Right | 25 | 25 | M | 150 | 15 | SNMG1506 / SNMG15xx | 75° |
| MSBNL2525M15 | Left | 25 | 25 | M | 150 | 15 | SNMG1506 / SNMG15xx | 75° |
| MSBNR3232P15 | Right | 32 | 32 | P | 170 | 15 | SNMG1506 / SNMG15xx | 75° |
| MSBNL3232P15 | Left | 32 | 32 | P | 170 | 15 | SNMG1506 / SNMG15xx | 75° |
| MSBNR1616H12 | Right | 16 | 16 | H | 100 | 12 | SNMG1204 / SNMG12xx | 75° |
| MSBNL1616H12 | Left | 16 | 16 | H | 100 | 12 | SNMG1204 / SNMG12xx | 75° |
| MSBNR2020K12 | Right | 20 | 20 | K | 125 | 12 | SNMG1204 / SNMG12xx | 75° |
| MSBNL2020K12 | Left | 20 | 20 | K | 125 | 12 | SNMG1204 / SNMG12xx | 75° |
| MSBNR2525M12 | Right | 25 | 25 | M | 150 | 12 | SNMG1204 / SNMG12xx | 75° |
| MSBNL2525M12 | Left | 25 | 25 | M | 150 | 12 | SNMG1204 / SNMG12xx | 75° |
| MSBNR3232P12 | Right | 32 | 32 | P | 170 | 12 | SNMG1204 / SNMG12xx | 75° |
| MSBNL3232P12 | Left | 32 | 32 | P | 170 | 12 | SNMG1204 / SNMG12xx | 75° |
| MSBNR3232P19 | Right | 32 | 32 | P | 170 | 19 | SNMG1908 / SNMG19xx | 75° |
| MSBNL3232P19 | Left | 32 | 32 | P | 170 | 19 | SNMG1908 / SNMG19xx | 75° |
| MSBNR4040R19 | Right | 40 | 40 | R | 200 | 19 | SNMG1908 / SNMG19xx | 75° |
| MSBNL4040R19 | Left | 40 | 40 | R | 200 | 19 | SNMG1908 / SNMG19xx | 75° |
