BEYOND S1006K-SWUBR06 Boring Bar | CNC Internal Turning Tool Holder
$14.85 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S1005K-SWUBR06 Boring Bar | CNC Internal Turning Tool Holder
$14.85 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...

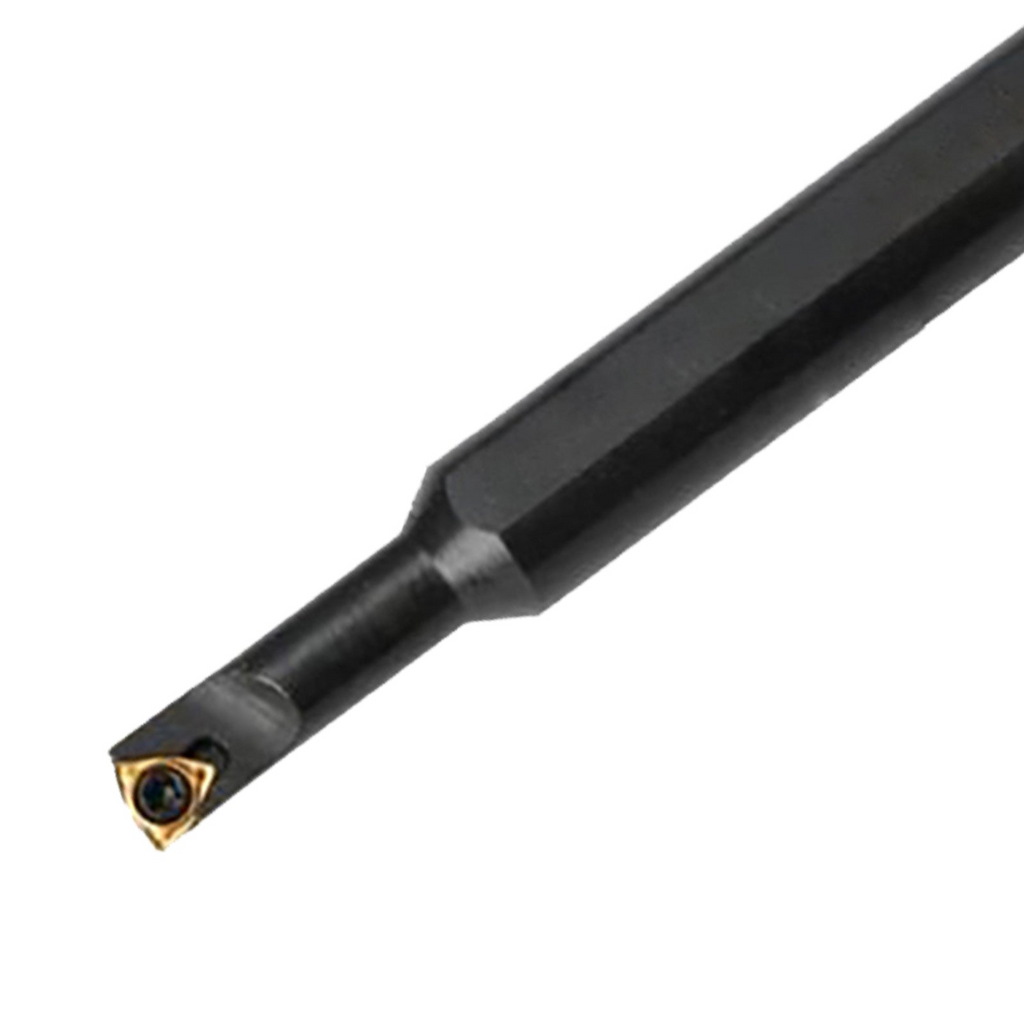

BEYOND S0806J-SWUBR06 Boring Bar | CNC Internal Turning Tool Holder
$14.85 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S0805H-SWUBR06 Boring Bar | CNC Internal Turning Tool Holder
$14.85 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S0705H-SWUBR06 Micro Internal Boring Bar 7mm-5mm Stepped Shank 100mm Length Screw Clamped Right Hand 93-Degree WBMT 0602 Lathe Turning Tool Holder
$13.50 USD
d ⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this micro boring bar package. Product images showing a mounted insert are provided strictly to...
BEYOND S1607M-SWUBR06 Boring Bar | CNC Internal Turning Tool Holder
$18.52 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S1207K-SWUBR06 Boring Bar | CNC Internal Turning Tool Holder
$16.14 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S1206K-SWUBR06 Boring Bar | CNC Internal Turning Tool Holder
$16.14 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S1205K-SWUBR06 Boring Bar | CNC Internal Turning Tool Holder
$16.14 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S1606K-SWUBR06 Boring Bar | CNC Internal Turning Tool Holder
$18.52 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND S1605K-SWUBR06 Boring Bar | CNC Internal Turning Tool Holder
$18.52 USD
⚠️ IMPORTANT INDUSTRIAL NOTICE: The indexable carbide insert shown mounted on the boring bar in our product imagery is for structural demonstration, clearance visualization, and application profiling context only. Turning...
BEYOND SWUBR/SWUBL Boring Bars – Steel Shank CNC Tool Holders
High-precision steel shank boring bars from BEYOND, featuring screw-on clamping for secure WBGT 80° trigon insert installation. Designed for CNC turning operations, ensuring reliable performance and durability.
Specifications
| Model | Type of Bar | Bar Diameter (mm) | Head Diameter (mm) | Bar Length (mm) | Clamping Method | Insert Shape | Cutting Edge Angle | Insert Relief Angle | Hand of Tool | Insert Cutting Edge Length (mm) | Compatible Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S0705H-SWUBR06 | Steel Shank | 07 | 05 | 180 | Screw Only | W (80° Trigon) | 93° (U) | 5° Positive (B) | R | 06 | WBGT06 |
| S0805H-SWUBR06 | Steel Shank | 08 | 05 | 180 | Screw Only | W (80° Trigon) | 93° (U) | 5° Positive (B) | R | 06 | WBGT06 |
| S1005K-SWUBR06 | Steel Shank | 10 | 05 | 125 | Screw Only | W (80° Trigon) | 93° (U) | 5° Positive (B) | R | 06 | WBGT06 |
| S1205K-SWUBR06 | Steel Shank | 12 | 05 | 125 | Screw Only | W (80° Trigon) | 93° (U) | 5° Positive (B) | R | 06 | WBGT06 |
| S1605K-SWUBR06 | Steel Shank | 16 | 05 | 125 | Screw Only | W (80° Trigon) | 93° (U) | 5° Positive (B) | R | 06 | WBGT06 |
| S0806J-SWUBR06 | Steel Shank | 08 | 06 | 150 | Screw Only | W (80° Trigon) | 93° (U) | 5° Positive (B) | R | 06 | WBGT06 |
| S1006K-SWUBR06 | Steel Shank | 10 | 06 | 125 | Screw Only | W (80° Trigon) | 93° (U) | 5° Positive (B) | R | 06 | WBGT06 |
| S1206K-SWUBR06 | Steel Shank | 12 | 06 | 125 | Screw Only | W (80° Trigon) | 93° (U) | 5° Positive (B) | R | 06 | WBGT06 |
| S1606K-SWUBR06 | Steel Shank | 16 | 06 | 125 | Screw Only | W (80° Trigon) | 93° (U) | 5° Positive (B) | R | 06 | WBGT06 |
| S1207K-SWUBR06 | Steel Shank | 12 | 07 | 125 | Screw Only | W (80° Trigon) | 93° (U) | 5° Positive (B) | R | 06 | WBGT06 |
| S1607M-SWUBR06 | Steel Shank | 16 | 07 | 150 | Screw Only | W (80° Trigon) | 93° (U) | 5° Positive (B) | R | 06 | WBGT06 |
Features
- Steel shank ensures rigidity and stability for CNC turning operations.
- Screw-on clamping provides secure WBGT 80° trigon insert installation.
- Available in multiple diameters and lengths for diverse machining needs.
- Positive relief angle supports smooth cutting and longer tool life.
- Compatible with WBGT inserts (last two digits indicate cutting edge length).
Applications
Ideal for precision CNC turning and boring on steel, stainless steel, alloy steel, and cast iron. Suitable for industrial machining centers and CNC lathes.
Brand
BEYOND – Professional CNC Tool Holder Manufacturer
