SPMG140512DK TT6030 (10pcs)
Taegutec SPMG140512DG TT9030 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG120408DG TT9030 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG110408DG TT9030 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG090408DG TT9030 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG07T308DG TT9030 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG060204DG TT9030 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG050204DG TT9030 Carbide Insert for CNC U-Drill (10pcs)

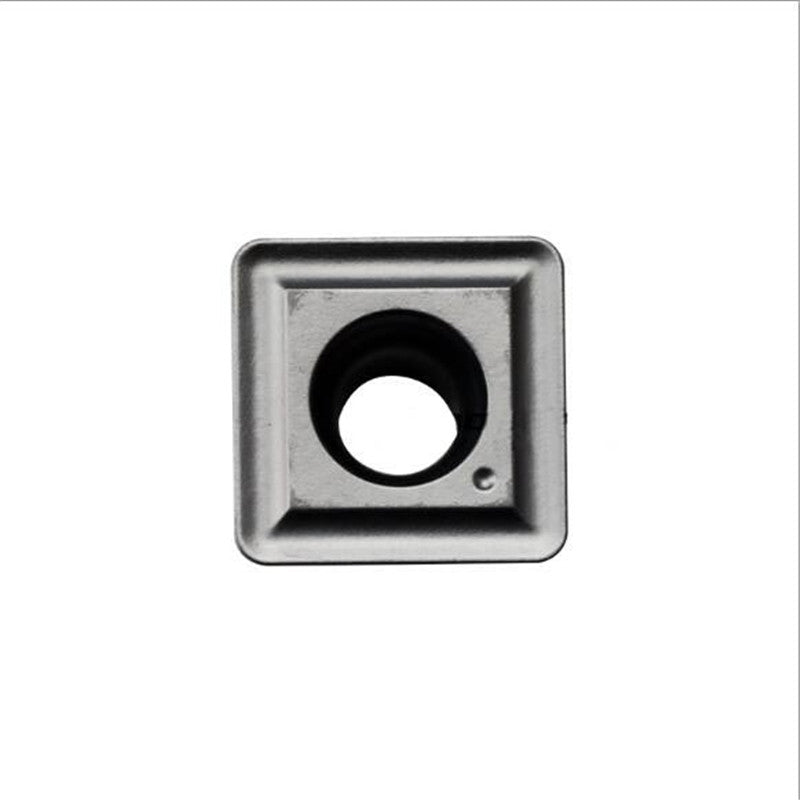

Taegutec SPMG140512DG TT8020 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG110408DK TT6030 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG110408DG TT8020 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG090408DK TT6030 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG090408DG TT8020 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG07T308DK TT6030 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG07T308DG TT8020 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG060204DK TT6030 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG060204DG TT7400 Carbide Insert for CNC U-Drill (10pcs)
Taegutec SPMG050204DK TT6030 Carbide Insert for CNC U-Drill (10pcs)
TaeguTec SPMG060204DG TT8020 | PVD Coated Indexable Drilling Insert
TaeguTec SPGG140512DA K10 | Precision Turning Insert for Aluminum
TaeguTec SPGG110408DA K10 | Precision Turning Insert for Aluminum
TaeguTec SPGG090408DA K10 | Precision Turning Insert for Aluminum
TaeguTec SPGG07T308DA K10 | Precision Turning Insert for Aluminum
TaeguTec SPGG060204DA K10 | Precision Turning Insert for Aluminum
TaeguTec SPGG050204DA K10 | Precision Turning Insert for Aluminum
TaeguTec Indexable Drill Inserts — SPMG / WCMX for TopDrill & DrillMeister
Browse the CNCHome-Beyond TaeguTec indexable drill insert catalog — 25 genuine carbide inserts for TopDrill and DrillMeister U-drill bodies, in two industry-standard ISO geometries: SPMG (4-corner square, general steel) and WCMX (80° trigon with wiper edges, high-feed). All inserts are sourced directly from TaeguTec's authorized Korean production line (Daegu, IMC Group sister company to Iscar since 1989) and shipped from our Hangzhou warehouse at 30–50% below OEM list price. TT9030 (PVD TiAlN, stainless) and TT8020 (PVD TiN, steel) grades available across the full size range. ISO 1832 standard sizing — dimensionally interchangeable with Sandvik, Mitsubishi, and Kyocera equivalent inserts.
2 ISO Geometries in This Catalog
| Geometry Code | Shape & Edges | Best For | TaeguTec System |
|---|---|---|---|
| SPMG | Square (4 cutting edges, 0° clearance) | General-purpose U-drilling on steel & cast iron; standard feed rates | TopDrill 3xD / 5xD / 8xD, DrillMeister 1-3xD |
| WCMX | 80° trigon with wiper edges (4 cutting edges, integrated surface finish) | High-feed U-drilling + bottom face wiper (single-pass hole + finish) | TopDrill high-feed series, DrillMeister short-hole |
2 TaeguTec Drill Body Systems
- TopDrill — TaeguTec's flagship indexable U-drill system. Diameter range 12 mm to 50 mm, with indexable SPMG / WCMX inserts. Available in 3xD, 5xD, and 8xD body lengths. The 8xD extension versions can drill deep holes previously requiring a brazed-tip or solid carbide drill. Coolant-through design.
- DrillMeister — Modular replaceable-tip drill for short, high-rigidity holes. The drill head (cutting portion) is replaceable; the body is reusable. Ideal for 1xD, 2xD, 3xD hole depths where rigidity and tool change speed matter more than hole depth. Excellent for production lines running 50+ holes per setup.
TaeguTec Grade Cross-Reference
| TaeguTec Grade | Coating | ISO Application | Recommended For | Equivalent In |
|---|---|---|---|---|
| TT9030 | TiAlN PVD | M15–M25 stainless, S15–S25 high-temp alloys | 304 / 316 stainless drilling, Inconel, titanium | Mitsubishi US7020, Sandvik GC2040, Kennametal KC7315 |
| TT8020 | TiN PVD | P15–P25 steel | General carbon steel & alloy steel drilling (most popular grade) | Mitsubishi VP15TF, Sandvik GC4325, KORLOY NC3030 |
Compatible Tool Holders
All TaeguTec SPMG and WCMX inserts in this catalog fit any ISO 1832 standard indexable U-drill or modular drill body of the matching insert size (SPMG 050204 / 060204 / 070204 / 080204 / 090308 / 110408 etc.). Direct-fit with:
- TaeguTec TopDrill series (12-50 mm diameter, all depth ratios)
- TaeguTec DrillMeister series (replaceable heads)
- Sandvik CoroDrill 880 (SPMG inserts interchangeable)
- Mitsubishi MWS / MVS indexable drills (WCMX interchangeable)
- Kennametal Drill Fix PRO (SPMG / WCMX interchangeable)
Browse matched tool holder accessories (155 products) for coolant-through collets and arbors.
Browse Related TaeguTec Sub-Collections
- TaeguTec brand page — company background, full grade catalog, TopDrill/DrillMeister specs, contact engineers
- TaeguTec milling inserts — indexable milling APKT / RPMT / LNMU for face & shoulder milling
- TaeguTec master catalog — all TaeguTec indexable inserts (drill + milling + others)
- Premium Carbide Inserts (All Global Brands) — 5,880 SKUs across 8 brands including TaeguTec
Why Buy TaeguTec Drill Inserts from CNCHome-Beyond
- ✅ 25 TaeguTec drill insert SKUs — full SPMG / WCMX coverage, both TT9030 and TT8020 grades
- ✅ 30–50% below OEM list through direct-from-Korea supply (TaeguTec / IMC Group Korea) and Hangzhou warehouse consolidation
- ✅ 100% authentic — every product shipped with TaeguTec lot traceability documentation and original box
- ✅ ISO 9001:2015 certified supply chain for all TaeguTec products
- ✅ Free engineering support — email us a Sandvik / Mitsubishi / Kennametal drill insert code and we send back a matched TaeguTec equivalent with grade cross-reference and recommended cutting parameters
- ✅ Global shipping in 3–7 days via DHL / UPS / FedEx to 50+ countries, DDP available
Frequently Asked Questions
Q: What is the difference between TaeguTec SPMG and WCMX drill inserts?
A: SPMG is a square 4-edge insert with 0° clearance — the workhorse geometry for general-purpose U-drilling on steel, cast iron, and aluminum. Standard feed rates. WCMX is an 80° trigon insert with 4 cutting edges that include wiper flats — designed for high-feed drilling with integrated bottom face finishing. Use SPMG for most jobs; use WCMX when you want to combine drilling + counter-facing in a single pass.
Q: What is the difference between TopDrill and DrillMeister?
A: TopDrill is TaeguTec's indexable U-drill system for 3xD to 8xD hole depths. Diameter range 12-50 mm. Uses SPMG and WCMX inserts. Best for general production drilling.
DrillMeister is a modular replaceable-tip drill for 1xD to 3xD short holes where rigidity and tool change speed matter most. The drill head is replaceable; the body is reusable. Best for high-volume production lines running many short holes per setup.
Q: Are TaeguTec drill inserts interchangeable with Sandvik or Mitsubishi?
A: Yes — SPMG and WCMX are ISO 1832 standard geometries, so TaeguTec inserts are dimensionally interchangeable with Sandvik CoroDrill 880, Mitsubishi MWS / MVS, and Kennametal Drill Fix PRO equivalents. The insert pocket geometry and IC size are identical across brands. You can switch brands without changing the drill body.
Q: What TaeguTec grade should I use for stainless steel drilling?
A: Use TT9030 (PVD TiAlN) for stainless steel drilling. TT9030 is TaeguTec's premium stainless grade, equivalent to Sandvik GC2040 and Mitsubishi VP15TF. For general carbon steel, use TT8020 (PVD TiN). For cast iron drilling, TT6080 or TT7400 grades are recommended (not in this collection — see the TaeguTec master catalog).
Talk to a Tooling Engineer
Not sure which TaeguTec drill insert fits your TopDrill or DrillMeister body? Need a cross-reference to a Sandvik, Mitsubishi, or Kennametal drill code? We respond within one business day with stock availability, pricing, and engineering recommendations.
