BEYOND S16Q-SDZCL07 Boring Bar | 16mm CNC Lathe Left Hand Internal Turning Tool Holder for DCMT 0702 Inserts
$18.52 USD
BEYOND S16Q-SDZCL07 Boring Bar – 16mm Left Hand Steel Screw Locking CNC Lathe Internal Turning Tool Holder ⚠️ PLEASE NOTE: The indexable carbide insert seated on the cutting head in...
BEYOND S32T-SDZCR11 Boring Bar | 32mm CNC Lathe Right Hand Internal Turning Tool Holder for DCMT 11T3 Inserts
$55.19 USD
BEYOND S32T-SDZCR11 Boring Bar – 32mm Right Hand Steel Screw Locking CNC Lathe Internal Turning Tool Holder ⚠️ PLEASE NOTE: The indexable carbide insert seated on the cutting head in...
BEYOND S32T-SDZCL11 Left Hand Boring Bar | 32mm CNC Lathe Internal Turning Tool Holder for DCMT 11T3 Inserts
$55.19 USD
BEYOND S32T-SDZCL11 Boring Bar – 32mm Left Hand Steel Screw Locking CNC Lathe Internal Turning Tool Holder ⚠️ PLEASE NOTE: The indexable carbide insert seated on the cutting head in...
BEYOND S25S-SDZCL11 Left Hand Boring Bar | 25mm CNC Lathe Internal Turning Tool Holder for DCMT 11T3 Inserts
$33.16 USD
BEYOND S25S-SDZCL11 Boring Bar – 25mm Left Hand Steel Screw Locking CNC Lathe Internal Turning Tool Holder ⚠️ PLEASE NOTE: The indexable carbide insert seated on the cutting head in...
BEYOND S20R-SDZCR11 Boring Bar | 20mm CNC Lathe Right Hand Internal Turning Tool Holder for DCMT 11T3 Inserts
$21.90 USD
BEYOND S20R-SDZCR11 Boring Bar – 20mm Right Hand Steel Screw Locking CNC Lathe Internal Turning Tool Holder ⚠️ PLEASE NOTE: The indexable carbide insert seated on the cutting head in...
BEYOND S20R-SDZCL11 Left Hand Boring Bar | 20mm CNC Lathe Internal Turning Tool Holder for DCMT 11T3 Inserts
$21.90 USD
BEYOND S20R-SDZCL11 Boring Bar – 20mm Left Hand Steel Screw Locking CNC Lathe Internal Turning Tool Holder ⚠️ PLEASE NOTE: The indexable carbide insert seated on the cutting head in...
BEYOND S16Q-SDZCR11 Boring Bar | 16mm CNC Lathe Right Hand Internal Turning Tool Holder for DCMT 11T3 Inserts
$18.52 USD
BEYOND S16Q-SDZCR11 Boring Bar – 16mm Right Hand Steel Screw Locking CNC Lathe Internal Turning Tool Holder ⚠️ PLEASE NOTE: The indexable carbide insert seated on the cutting head in...
BEYOND S16Q-SDZCR07 Boring Bar | 16mm CNC Lathe Right Hand Internal Turning Tool Holder for DCMT 0702 Inserts
$18.52 USD
BEYOND S16Q-SDZCR07 Boring Bar – 16mm Right Hand Steel Screw Locking CNC Lathe Internal Turning Tool Holder ⚠️ PLEASE NOTE: The indexable carbide insert seated on the cutting head in...
BEYOND S16Q-SDZCL11 Boring Bar | 16mm CNC Lathe Left Hand Internal Turning Tool Holder for DCMT 11T3 Inserts
$18.52 USD
BEYOND S16Q-SDZCL11 Boring Bar – 16mm Left Hand Steel Screw Locking CNC Lathe Internal Turning Tool Holder ⚠️ PLEASE NOTE: The indexable carbide insert seated on the cutting head in...
S12M-SDZCR07 CNC Internal Boring Bar Tool Holder | Precision 93° Cutting Edge, Alloy Steel Construction
$14.25 USD
Overview The S12M-SDZCR07 Mechanical Lathe CNC Internal Boring Bar Tool Holder is engineered to provide precision and durability for internal turning operations. With a cutting edge angle of 93° and...
BEYOND S12M-SDZCL07 Boring Bar | 12mm CNC Lathe Left Hand Internal Turning Tool Holder for DCMT 0702 Inserts
$16.14 USD
BEYOND S12M-SDZCL07 Boring Bar – 12mm Left Hand Steel Screw Locking CNC Lathe Internal Turning Tool Holder ⚠️ PLEASE NOTE: The indexable carbide insert seated on the cutting head in...
BEYOND S10K-SDZCR07 Boring Bar | 10mm CNC Lathe Right Hand Internal Turning Tool Holder for DCMT 0702 Inserts
$14.85 USD
BEYOND S10K-SDZCR07 Boring Bar – 10mm Right Hand Steel Screw Locking CNC Lathe Internal Turning Tool Holder ⚠️ PLEASE NOTE: The indexable carbide insert seated on the cutting head in...
BEYOND S10K-SDZCL07 High-Stiffness 10mm Shank 125mm Length Screw-Down CNC Lathe Internal Hole Boring Bar Tool Holder for DCMT 0702 Indexable 55° Diamond Inserts
$13.50 USD
⚠️ INDUSTRIAL SUPPLY NOTICE: The indexable carbide cutting insert is NOT included with this boring bar package. Product images displaying a mounted insert are provided strictly to illustrate geometric pocket...
BEYOND S25S-SDZCR11 Boring Bar | 25mm CNC Lathe Right Hand Internal Turning Tool Holder for DCMT 11T3 Inserts
$33.16 USD
BEYOND S25S-SDZCR11 Boring Bar – 25mm Right Hand Steel Screw Locking CNC Lathe Internal Turning Tool Holder ⚠️ PLEASE NOTE: The indexable carbide insert seated on the cutting head in...

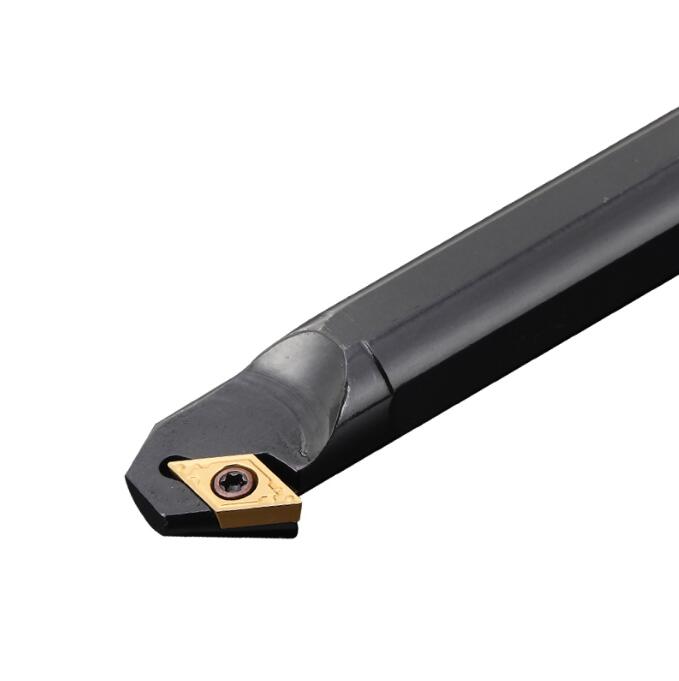

BEYOND SDZCR/L CNC Boring Bar – Screw-On Clamping | For DCMT Inserts
The BEYOND SDZCR/L boring bar series is designed for high-precision internal turning, featuring a Screw-On (S-Type) clamping system, a durable steel shank (Type S), and compatibility with DCMT turning inserts. Manufactured according to ISO standards, this series delivers strong rigidity, stable chip evacuation, and excellent tool life for professional CNC machining.
Suitable for a wide range of materials including steel, stainless steel, alloy steel, cast iron, and general machining applications. Ideal for CNC lathes, precision turning, and boring operations.
ISO Code Meaning (For SDZCR/L Series)
| Code | Description |
|---|---|
| S | Type of bar: Steel shank |
| 16Q / 20R / 25S ... | Shank diameter + bar length code |
| S | Clamping method: Screw-On |
| D | Insert shape: 55° Diamond (for DCMT inserts) |
| Z | Approach/Cutting angle: 93° |
| C | Insert relief angle: 7° Positive |
| R / L | Hand of tool: Right / Left |
| 07 / 11 | Insert cutting edge length → Use DCMT0702 / DCMT11T3 |
Recommended Insert for SDZCR/L Series
- DCMT0702 for all “07” models
- DCMT11T3 for all “11” models
Technical Specifications – SDZCR/L Boring Bar Series
| Model | Shank Diameter (mm) | Overall Length | Insert Type | Hand | Clamping | Approach Angle | Relief Angle |
|---|---|---|---|---|---|---|---|
| S16Q-SDZCR11 | 16 | 180 | DCMT11T3 | Right | Screw (S) | 93° (Z) | 7° (C) |
| S16Q-SDZCL11 | 16 | 180 | DCMT11T3 | Left | Screw (S) | 93° | 7° |
| S20R-SDZCR11 | 20 | 200 | DCMT11T3 | Right | Screw | 93° | 7° |
| S20R-SDZCL11 | 20 | 200 | DCMT11T3 | Left | Screw | 93° | 7° |
| S25S-SDZCR11 | 25 | 250 | DCMT11T3 | Right | Screw | 93° | 7° |
| S25S-SDZCL11 | 25 | 250 | DCMT11T3 | Left | Screw | 93° | 7° |
| S32T-SDZCR11 | 32 | 300 | DCMT11T3 | Right | Screw | 93° | 7° |
| S32T-SDZCL11 | 32 | 300 | DCMT11T3 | Left | Screw | 93° | 7° |
| S40T-SDZCR11 | 40 | 300 | DCMT11T3 | Right | Screw | 93° | 7° |
| S10K-SDZCR07 | 10 | 100 | DCMT0702 | Right | Screw | 93° | 7° |
| S10K-SDZCL07 | 10 | 100 | DCMT0702 | Left | Screw | 93° | 7° |
| S12M-SDZCR07 | 12 | 150 | DCMT0702 | Right | Screw | 93° | 7° |
| S12M-SDZCL07 | 12 | 150 | DCMT0702 | Left | Screw | 93° | 7° |
| S16Q-SDZCR07 | 16 | 180 | DCMT0702 | Right | Screw | 93° | 7° |
| S16Q-SDZCL07 | 16 | 180 | DCMT0702 | Left | Screw | 93° | 7° |
| S14N-SDZCR07 | 14 | 160 | DCMT0702 | Right | Screw | 93° | 7° |
Key Features
- ISO-standard design for DCMT diamond inserts
- Screw-On (S-Type) secure clamping for high rigidity
- Strong steel shank for stable boring operations
- Ideal for precision CNC internal turning
- Available in right-hand and left-hand versions
- Optimized for long tool life and smooth chip control
Applications
- Internal turning and boring
- CNC lathe machining
- General steel machining
- Stainless steel processing
- Alloy steel and cast iron turning
