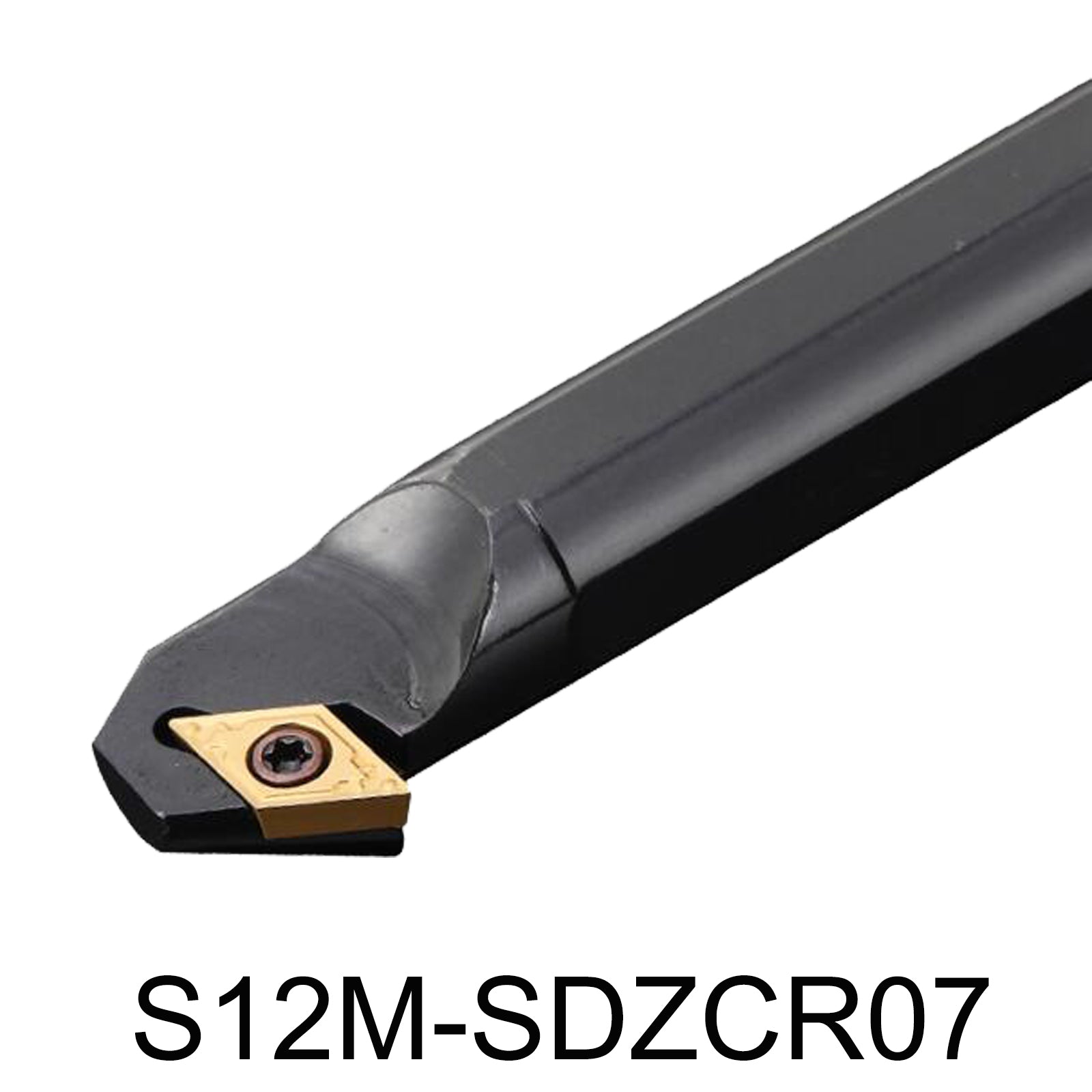

S12M-SDZCR07 CNC Internal Boring Bar Tool Holder | Precision 93° Cutting Edge, Alloy Steel Construction
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Overview
The S12M-SDZCR07 Mechanical Lathe CNC Internal Boring Bar Tool Holder is engineered to provide precision and durability for internal turning operations. With a cutting edge angle of 93° and a 7° blade relief angle, this tool holder ensures optimal performance and accuracy in various machining tasks. Constructed from high-quality alloy steel, it combines strength with reliability, making it an essential addition to your CNC machine tools and lathes. The tool holder accommodates a range of DCMT blade inserts, offering flexibility for diverse cutting needs.
Key Features
- Model:S12M-SDZCR07
- Cutting Edge Angle: 93°
- Relief Angle: 7°
- Material: Alloy Steel
- Handle Diameter: 12mm
- Total Length: 150mm
- Blade Length: 7mm
- Compatible Inserts: DCMT070202,DCMT070204,DCMT070208, DCMT2(1.5)0, DCMT2(1.5)1,DCMT2(1.5)2
- Includes: M2.5*6 Screws, T8 Wrench
Application
- CNC Machine Tools: Ideal for precise internal boring and turning operations.
- CNC Lathes: Suitable for internal cutting tasks in various materials.
- Boring Bars: Useful for enhancing performance in internal boring applications.
Choose Reason
Choose the S12M-SDZCR07 for its combination of precision, durability, and versatility. Its advanced design and robust construction make it a reliable choice for improving the efficiency and accuracy of your CNC internal boring and turning operations.
S12M-SDZCR07 Mechanical Lathe CNC Internal Boring Bar Tool Holder S12M SDZCR07 Precision Engineering for Superior Performance
-
Advanced Internal Boring Bar Tool Holder with 93° Cutting Edge Angle
-
Robust Alloy Steel Construction for Enhanced Durability
-
Versatile Compatibility with DCMT Blade Inserts
-
Precision Cutting with 7° Relief Angle
-
S-Type Screw Design for Secure Blade Holding
-
Optimized for CNC Machine Tools and Lathes
5-Point Description
- 93° Cutting Edge Angle: Provides precise and effective internal turning for enhanced machining accuracy.
- 7° Blade Relief Angle: Ensures optimal cutting performance and extends tool life.
- Alloy Steel Construction: Offers durability and strength for demanding machining operations.
- S-Type Screw Design: Secures blades firmly, reducing the risk of movement during cutting.
- Compatible with DCMT Blades: Versatile and adaptable to various blade inserts for different cutting needs.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
