Tungaloy CC 80° Diamond Positive Inserts — CCMT, CCGT Steel Profiling, Finishing & Wiper Cermet

45 in-stock 80° diamond Tungaloy indexable carbide turning inserts covering 2 geometry families (CCMT / CCGT) and 5 grade families (T9115 / T9125 / NS9530 / AH725 / J740). IC sizes 6.0-12.0 mm. The go-to 80° positive diamond for general steel profiling and high-feed finishing on CNC lathes. 2-3 day dispatch from Zhejiang warehouse, DHL/UPS worldwide 3-7 days, all ISO 1832 compliant.

About CC 80° Diamond Positive Inserts (C-Style)

The ISO 1832 C-shape family delivers an 80° rhombic cutting edge with positive 7° clearance — the most common 80° positive diamond geometry for general steel turning. Tungaloy's C-family in this collection includes:

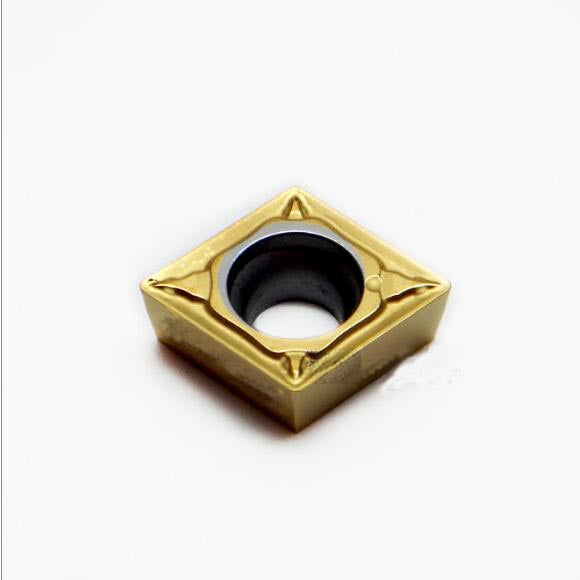

• CCMT (M chip-breaker, M tolerance) — 38 SKUs. The dominant 80° positive diamond with chip-breaker on both faces. IC sizes 6.0 / 9.5 / 12.0 mm, with PS (precision semi-finishing), PSS (precision sharp), and 24 (medium cutting) chip-breaker variants.
• CCGT (G chip-breaker, G tolerance) — 7 SKUs. Ground-periphery cermet finishing insert with chip-breaker on one face. Premium 80° positive for mirror surface work on steel and stainless.

CC inserts are the go-to 80° positive diamond turning insert — the 80° included angle provides excellent chip flow and good balance between edge strength and surface finish. Tungaloy's CC catalog in this collection features 5 grade families: T9115 / T9125 (CVD steel / stainless), NS9530 (cermet finishing), AH725 (PVD steel), and J740 (CVD stainless). 4 chip-breaker variants: PS / PSS / 24 / W15 / W20 (Tungaloy wiper chip-breakers) / J10 (Tungaloy ultra-sharp).

All 45 SKUs are spread across 3 IC sizes (06 / 09 / 12), with 09.5 mm IC most common (~25 SKUs). The 6.0 mm IC is for small-diameter profiling; 12.0 mm IC is for general profiling on larger shafts.

Browse by Application & Grade

All 45 CC 80° positive diamond SKUs are grouped below by application and grade. Click any category to filter the full catalog.

By Workpiece Material

• Carbon Steel / Alloy Steel — CCMT-PS T9115 (CVD P-grade, 6+ SKUs)
• Stainless Steel 304/316 — CCMT-PS / -PSS T9125 (CVD M-grade, 6+ SKUs)
• Mirror Finish on Steel — CCMT / CCGT NS9530 cermet (10+ SKUs)
• Universal (steel + stainless) — CCMT-PS / -PSS AH725 (PVD Al-rich, 8+ SKUs)
• High-Feed Finishing — CCGT-W15 / -W20 NS9530 wiper cermet (5+ SKUs)

By IC Size

• 6.0 mm (CCMT 06): Small IC, profiling / Swiss-type. 12 SKUs across grades.
• 9.5 mm (CCMT 09T3 / CCGT 09T3): Medium IC, general profiling. 25+ SKUs across grades.
• 12.0 mm (CCMT 12): Larger IC, heavy profiling. 1 SKU (CCMT120404-PSS AH725).

By Carbide Grade (5 Tungaloy families)

• T9115 (CVD Steel P-grade) — Tungaloy's standard CVD grade for steel finishing (P10-P20).
• T9125 (CVD Stainless M-grade) — Tungaloy's CVD grade for stainless with interrupted cuts (M15-M30).
• NS9530 (Cermet) — Tungaloy's premium cermet grade for mirror surface finishing (P05-P15).
• AH725 (PVD Steel) — Tungaloy's premium PVD Al-rich grade for steel and stainless (P10-P25).
• J740 (CVD Stainless) — Tungaloy's CVD grade for stainless steel finishing (M05-M15).

By Chip-Breaker (4 Variants)

• PS (Precision Semi-finishing): 20+ SKUs. Tungaloy's standard precision finishing chip-breaker.
• PSS (Precision Sharp): 5+ SKUs. Sharper variant of PS for finest surface finish.
• 24 (Medium Cutting): 8+ SKUs. Tungaloy's general-purpose medium-duty chip-breaker.
• W15 / W20 (Wiper, CCGT only): 5 SKUs. Tungaloy's wiper geometry for high feed + mirror surface. W15 for IC 6.0, W20 for IC 9.5.
• J10 (Ultra-Sharp, CCGT only): 1 SKU. Tungaloy's ultra-sharp chip-breaker for finishing stainless steel.

How to Choose the Right CC 80° Positive Diamond Insert — 3-Step

Step 1 — Identify the Workpiece

• Carbon steel / alloy steel: CCMT-PS with T9115 (CVD P-grade).
• Stainless steel 304/316: CCMT-PS / PSS with T9125 (CVD M-grade).
• Mirror finish on steel: CCMT or CCGT with NS9530 cermet (P05-P15).
• Universal (steel + stainless): CCMT-PS / PSS with AH725 (PVD Al-rich).
• High-feed finishing with mirror surface: CCGT with W15 / W20 wiper + NS9530 cermet.

Step 2 — Pick the Chip-Breaker

• PS (Precision Semi-finishing): Lighter chip-breaker for finishing and profiling at low feed rates.
• PSS (Precision Sharp): Sharper variant of PS for finest surface finish.
• 24 (Medium Cutting): General-purpose medium-duty chip-breaker for profiling and interrupted cuts.
• W15 / W20 (Wiper, CCGT only): Tungaloy wiper geometry for high feed + mirror surface.
• J10 (Ultra-Sharp, CCGT only): Tungaloy ultra-sharp chip-breaker for finishing stainless steel.

Step 3 — Verify Holder Compatibility

• CC (80° positive): Use Tungaloy SCLC-type positive turning holder with 80° lead angle, or PCLN-type positive holder.
• Verify lead angle: 80° matches CC perfectly. Common holders: SCLCR/L 1616-H09 (9 mm IC), SCLCR/L 2020-K12 (12 mm IC).
• Match IC to holder pocket: CCMT 06 needs 6 mm pocket; CCMT 09 needs 9 mm; CCMT 12 needs 12 mm.

Frequently Asked Questions

Related Tungaloy & Other Brand Inserts

Need a Specific Tungaloy CC 80° Diamond Insert Not in Stock?

45 in-stock SKUs covering CCMT / CCGT in 5 grades. For specialty CPMT, CNMT (negative 80°), 19+ mm IC heavy profiling, or specific Tungaloy equivalent cross-references (Sandvik / Mitsubishi / Kennametal / Iscar / Walter), request a quote — 24-hour response, 2-3 day dispatch from Zhejiang, DHL/UPS worldwide 3-7 days.
