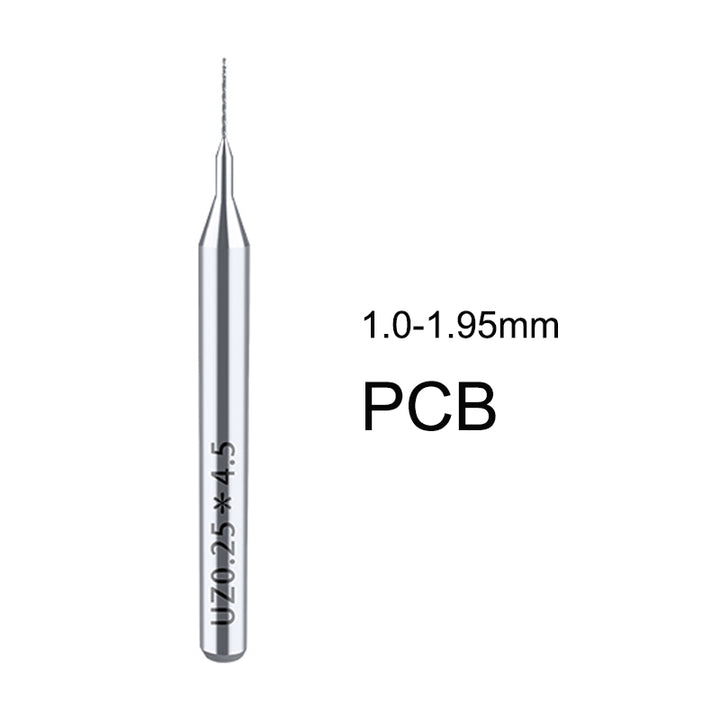

BEYOND PCB Tungsten Carbide Micro Drill Bits 1.0–1.95mm
BEYOND uncoated PCB tungsten carbide micro drill bits are engineered for precision drilling in printed circuit boards (PCB), aluminum, copper, stainless steel, and alloy materials. With HRC55 hardness and a 3.175mm shank diameter, they provide exceptional stability, sharpness, and durability in CNC machining.
Key Features
- Diameter Range: 1.0mm–1.95mm, ideal for small to medium PCB holes.
- Material: Solid tungsten carbide, offering superior hardness and wear resistance.
- Uncoated Design: Maximizes cutting sharpness and chip evacuation for precise hole quality.
- High Hardness: HRC55 grade ensures strong edge retention and reduced wear.
- Standard Shank Size: 3.175mm, compatible with most CNC and PCB drilling machines.
- Important: Not suitable for hand drills or pistol drills. Use only with precision CNC equipment.
Application Materials
These BEYOND micro carbide drill bits are suitable for:
- Printed Circuit Boards (PCB)
- Aluminum and Aluminum Alloys
- Copper and Copper Alloys
- Stainless Steel
- Cast Iron
- Mold Steel and Alloy Steel
Technical Specifications
| Item Name | BEYOND PCB Micro Drill Bits |
|---|---|
| Brand | BEYOND |
| Material | Solid Tungsten Carbide |
| Hardness | HRC55 |
| Coating | Uncoated |
| Diameter Range | 1.0mm – 1.95mm |
| Shank Diameter | 3.175mm |
| Function | High-precision drilling for PCB and metal components |
| Usage | For CNC and automatic drilling machines only |
Product Advantages
- High concentricity minimizes tool runout and breakage.
- Sharp cutting edges ensure clean hole walls and consistent accuracy.
- Excellent performance for PCB manufacturing, mold machining, and precision components.
- Cost-effective choice for high-speed, stable micro drilling applications.
Usage Tips
To ensure optimal tool life, operate at stable spindle speeds and apply suitable feed rates. Avoid excessive pressure or vibration during drilling.
Recommended Keywords for SEO
Keywords: PCB carbide micro drill bits, tungsten carbide PCB drill 1.0mm, uncoated micro drill for circuit boards, 3.175mm shank PCB drill, BEYOND carbide tools.
Long-tail keywords: tungsten carbide PCB drill 1.0–1.95mm, precision uncoated micro drill bits for electronics, CNC carbide drill for aluminum and copper, small hole PCB drill bit.
Traffic keywords: PCB drill bit set, micro carbide drill, circuit board drilling tool, tungsten carbide micro drill, CNC PCB tool bits.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
