Elevate Your Machining Efficiency with the WWLNR1616H08 Tool Holder
-
Overview

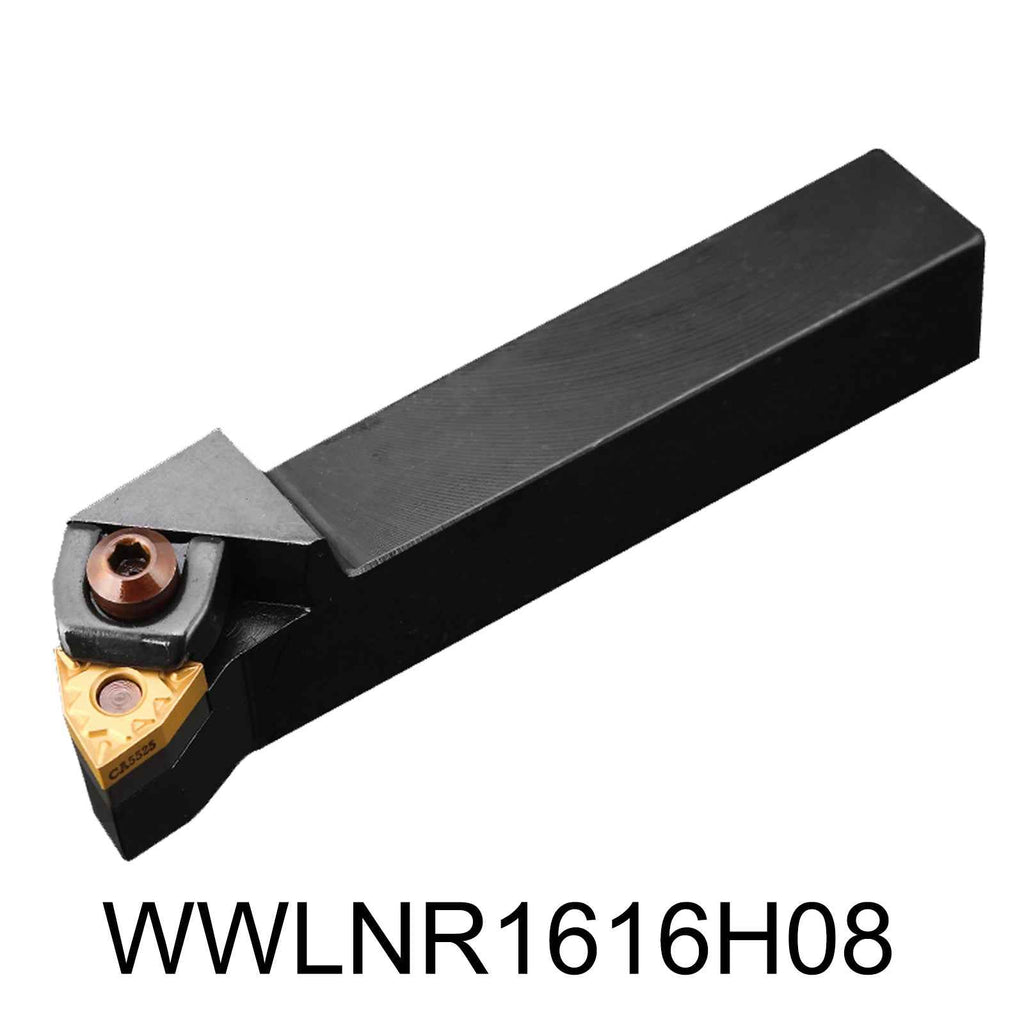

Introducing the WWLNR1616H08 External Tool Holder, designed for superior performance in CNC machining applications. With a precise cutting edge angle of 95°, this external cylindrical tool holder employs a wedge clamping system for enhanced tool stability. Ideal for CNC lathes and machining centers, the WWLNR1616H08 ensures consistent accuracy and reliability, making it an essential addition to any machine shop.
-
Features and Specifications
- Model:WWLNR1616H08
- Package Includes: WWLNR1616H08 Tool Holder and compatible Shim,Pin,Clamp, Screws, and Wrenches
- 95° cutting edge angle and 0° relief angle.
- Type: W-Type (Wedge Clamping system)
- Shank width: 16mm
- Shank length: 16mm
- Total Length: 100mm
- Shim: MW0804
- Pin: CT618
- Clamp: HLW-08
- Screw: M6*25
- Wrench: L3.0 L4.0
- Compatible Blades: WNMG080404 WNMG080408 WNMG080412 WNMG431 WNMG432 WNMG433
-
WWLNR1616H08 External Tool Holder – Precision and Reliability for CNC Machining
-
5-Point Description
-
-
Optimal Cutting Performance: The WWLNR1616H08's 95° cutting edge angle enhances chip removal, resulting in precise machining and exceptional surface quality.
-
Enhanced Stability: Utilizing a reliable wedge clamping system, this tool holder minimizes vibrations, ensuring consistent accuracy during high-speed operations.
-
Flexible Blade Compatibility: Supports a variety of blades such as WNMG080404, WNMG080408, and WNMG431, making it the ideal choice for diverse machining tasks.
-
Space-Efficient Design: With a total length of 100mm and a shank width of 16mm, this compact tool holder fits seamlessly into any CNC setup, promoting ease of use.
-
Comprehensive Setup Kit: The package includes all essential components like shim, pin, clamp, screw, and wrenches, streamlining installation and maintenance for busy machine shops.
-
