Shop WWLNL1616H08 External Tool Holder – 95° Cutting Edge Angle for CNC Machining
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND CNC Lathe Cutter WWLNL 1616H08 1616 External Turning Tools Holder WWLNL1616 H08 Shank WWLNR WWLNL1616H08 Carbide Inserts WNMG WNMG080404 WNMG080408
-
Elevate Your Machining Efficiency with the WWLNL1616H08 Tool Holder
-
Overview

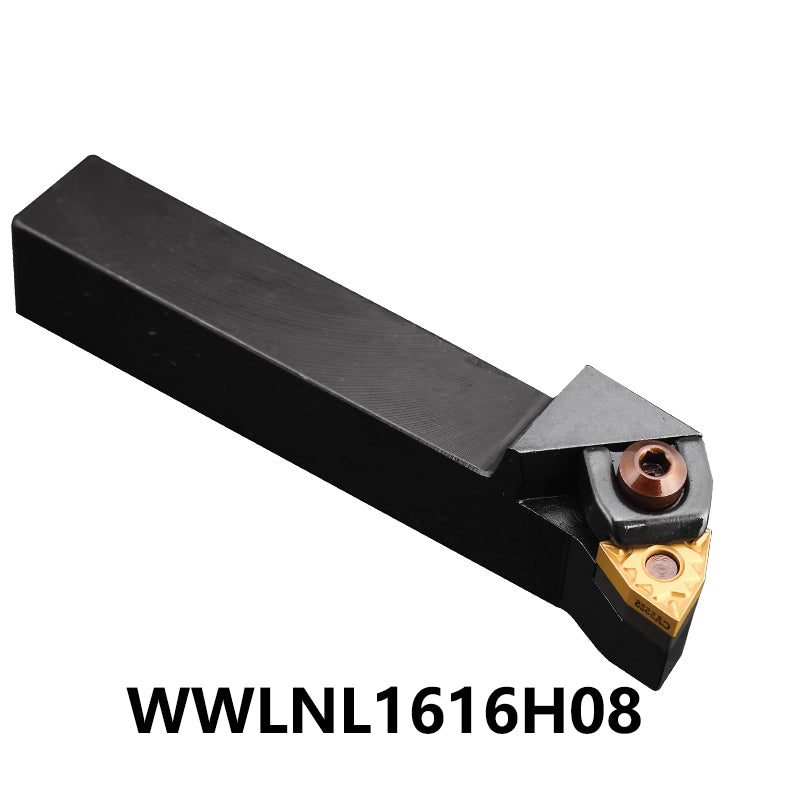

Introducing the WWLNL1616H08 External Tool Holder, designed for superior performance in CNC machining applications. With a precise cutting edge angle of 95°, this external cylindrical tool holder employs a wedge clamping system for enhanced tool stability. Ideal for CNC lathes and machining centers, the WWLNL1616H08 ensures consistent accuracy and reliability, making it an essential addition to any machine shop.
-
Features and Specifications
- Model:WWLNL1616H08
- Package Includes: WWLNL1616H08 Tool Holder and compatible Shim,Pin,Clamp, Screws, and Wrenches
- 95° cutting edge angle and 0° relief angle.
- Type: W-Type (Wedge Clamping system)
- Shank width: 16mm
- Shank length: 16mm
- Total Length: 100mm
- Shim: MW0804
- Pin: CT618
- Clamp: HLW-08
- Screw: M6*25
- Wrench: L3.0 L4.0
- Compatible Blades: WNMG080404 WNMG080408 WNMG080412 WNMG431 WNMG432 WNMG433
-
WWLNL1616H08 External Tool Holder – Precision and Reliability for CNC Machining
-
5-Point Description
-
-
Optimal Cutting Performance: The WWLNL1616H08's 95° cutting edge angle enhances chip removal, resulting in precise machining and exceptional surface quality.
-
Enhanced Stability: Utilizing a reliable wedge clamping system, this tool holder minimizes vibrations, ensuring consistent accuracy during high-speed operations.
-
Flexible Blade Compatibility: Supports a variety of blades such as WNMG080404, WNMG080408, and WNMG431, making it the ideal choice for diverse machining tasks.
-
Space-Efficient Design: With a total length of 100mm and a shank width of 16mm, this compact tool holder fits seamlessly into any CNC setup, promoting ease of use.
-
Comprehensive Setup Kit: The package includes all essential components like shim, pin, clamp, screw, and wrenches, streamlining installation and maintenance for busy machine shops.
-
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
