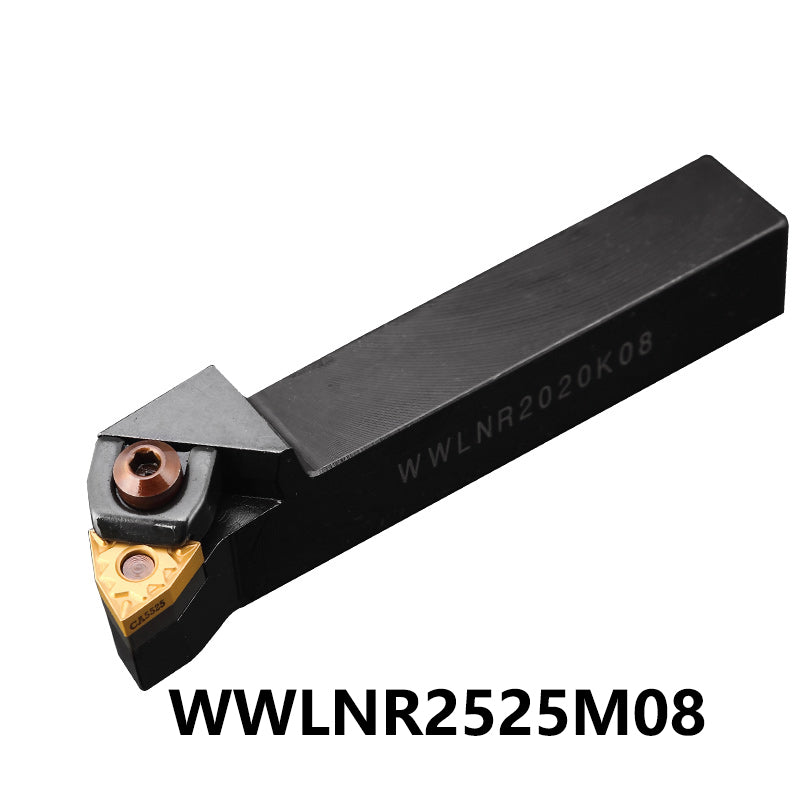

WWLNR2525M08 External Tool Holder – Precision Engineering for CNC Machining Excellence
-
Overview
Introducing the WWLNR2525M08 External Tool Holder, engineered for precision and efficiency in CNC machining applications. With a 95° cutting edge angle, this robust external cylindrical tool holder utilizes a wedge clamping system to secure the cutting tool firmly, ensuring consistent performance and exceptional results. Designed for compatibility with a variety of blades and optimal for CNC lathes and machining centers, the WWLNR2525M08 is a reliable choice for your machining needs.
-
Features and Specifications
- Model:WWLNR2525M08
- Package Includes: WWLNR2525M08 Tool Holder and compatible Shim,Pin,Clamp, Screws, and Wrenches
- 95° cutting edge angle and 0° relief angle.
- Type: W-Type (Wedge Clamping system)
- Shank width: 25mm
- Shank length: 25mm
- Total Length: 150mm
- Shim: MW0804
- Pin: CT618
- Clamp: HLW-08
- Screw: M6*25
- Wrench: L3.0 L4.0
- Compatible Blades: WNMG080404 WNMG080408 WNMG080412 WNMG431 WNMG432 WNMG433
-
Unlock Superior Machining Performance with the WWLNR2525M08 Tool Holder
-
5-Point Description
-
-
High-Performance Cutting: The 95° cutting edge angle maximizes chip removal efficiency, ensuring smooth and precise machining operations.
-
Stability and Precision: Equipped with a reliable wedge clamping system, this tool holder minimizes vibrations for improved accuracy during high-speed machining.
-
Adaptable Blade Options: Compatible with a variety of blades such as WNMG080404 and WNMG431, the WWLNR2525M08 offers versatility for a wide range of machining tasks.
-
Compact and Efficient Design: With dimensions of 25mm for both width and length and a total length of 150mm, this tool holder is perfect for installations in confined spaces.
-
Ready-to-Use Package: Includes all necessary components, making setup and maintenance quick and easy, saving you time and effort in your machine shop.
-
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
