10mm T-Slot Milling Cutter
The 10mm T-Slot Milling Cutter is a high-performance carbide tool designed for machining keyways, T-slots, and undercuts on CNC milling machines. With a precision-ground cutting edge and strong wear resistance, it delivers stable cutting performance even in hardened steel and stainless steel.
Features
- Material: Ultra-fine carbide with TiAlN coating for extended tool life.
- Cutting Diameter (d1): 10mm
- Shank Diameter (d): 10mm
- Number of Teeth: 6
- Cutting Direction: Right-hand cutting
- Applicable Machines: CNC milling machine, machining center
Applications
This carbide 10mm T-Slot Cutter is ideal for precision slot and keyseat cutting in:
- Steel and hardened steel (HRC45–60)
- Stainless steel (304 / 316)
- Cast iron and aluminum alloys
Advantages
- Sharp cutting edge ensures smooth slotting and reduced vibration.
- High rigidity design prevents deflection during heavy cutting.
- Excellent chip evacuation improves surface finish.
- Coating resists heat and wear, ensuring consistent tool life.
Recommended Parameters
| Work Material | Spindle Speed (RPM) | Feed Rate (mm/min) | Depth of Cut (mm) |
|---|---|---|---|
| Carbon Steel | 6000–9000 | 400–800 | 0.3–0.6 |
| Stainless Steel | 4000–7000 | 300–700 | 0.2–0.4 |
| Aluminum | 10000–15000 | 800–1200 | 0.5–1.0 |

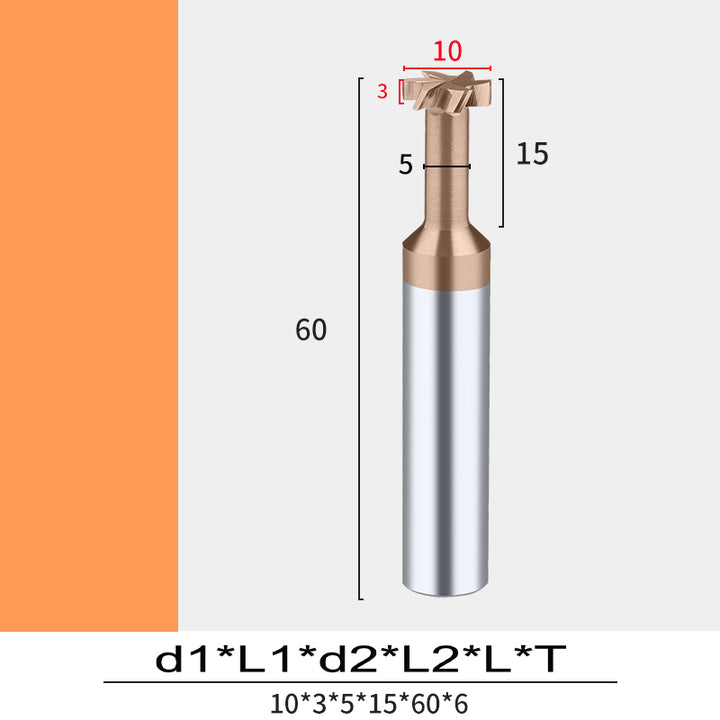

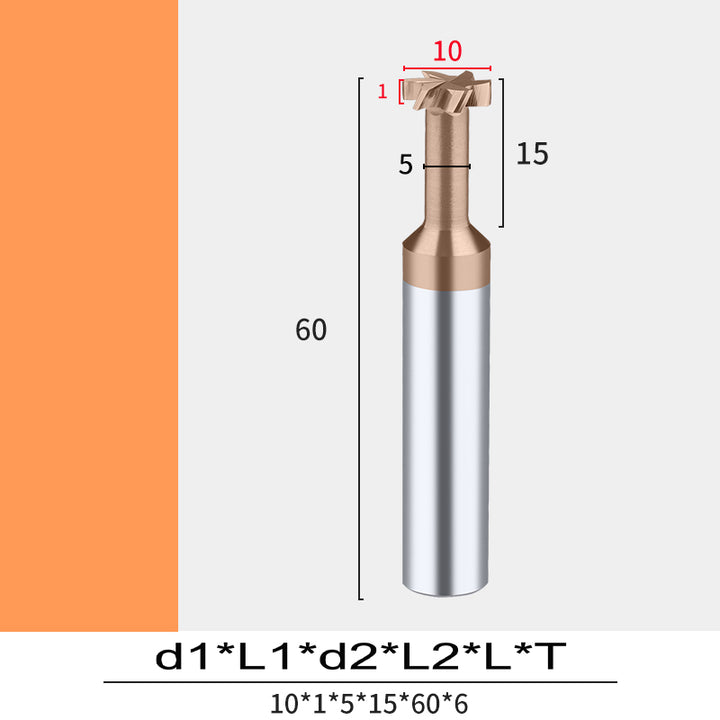

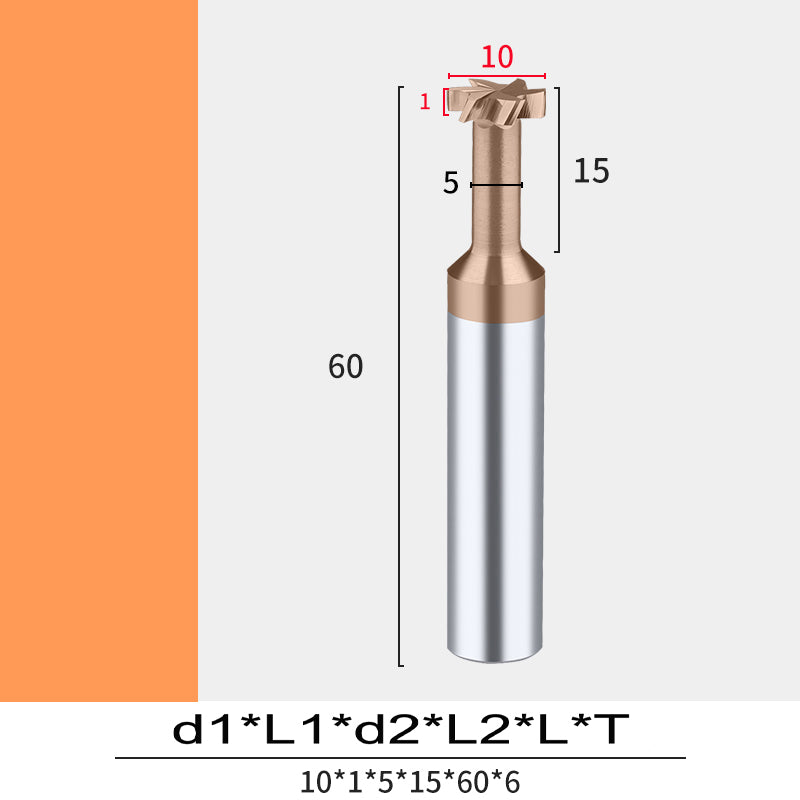

Product Dimensions
| Model | d1 (Cutting Diameter) | d (Shank Diameter) | l1 (Cutting Length) | l2 (Total Length) | z (Teeth) |
|---|---|---|---|---|---|
| TSC-10 | 10mm | 10mm | 6mm | 60mm | 6 |
Why Choose Our 10mm T-Slot Cutter?
We provide precision-ground T-slot milling cutters made from high-quality tungsten carbide, ensuring reliable performance for industrial CNC applications. Whether for tool and die work, mold making, or general metal slotting, our cutters offer outstanding durability and accuracy.
Keywords & SEO Focus
T-slot milling cutter 10mm, carbide keyseat cutter, CNC slot milling tool, keyway slot cutter, solid carbide T-slot cutter, T-slot end mill 10mm, CNC milling cutter for steel
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
