12mm T-Slot Milling Cutter
The 12mm T-Slot Milling Cutter is a precision-engineered solid carbide keyseat cutter designed for professional CNC machining. With exceptional hardness, rigidity, and wear resistance, it ensures smooth slotting performance, long tool life, and superior surface quality on a wide range of materials.
Features
- Cutting Diameter (D1): 12mm
- Material: Ultra-fine solid carbide with TiAlN coating
- Tool Type: T-Slot Milling Cutter / Keyseat Cutter
- Cutting Direction: Right-hand cutting
- Suitable Machines: CNC milling centers, machining centers
- Applications: T-slot, keyseat, and undercut machining
Technical Specifications
| Parameter | Value |
|---|---|
| Tool Type | T-Slot Milling Cutter |
| D1 (Cutting Diameter) | 12mm |
| Shank Diameter (d) | 10mm |
| Cutting Length (l1) | 8mm |
| Total Length (L) | 63mm |
| Number of Teeth (z) | 6 |
Recommended Cutting Parameters
| Work Material | Spindle Speed (RPM) | Feed Rate (mm/min) | Depth of Cut (mm) |
|---|---|---|---|
| Carbon Steel | 5200–8000 | 400–700 | 0.3–0.6 |
| Stainless Steel | 3800–6200 | 300–550 | 0.2–0.5 |
| Aluminum & Copper | 9500–13000 | 800–1200 | 0.6–1.0 |
Applications
- Machining T-slots for machine tool tables and fixtures
- Keyseat cutting for shafts and mechanical components
- Undercut slot milling in dies and molds
- General precision CNC milling operations
Advantages
- Optimized geometry ensures smooth cutting and excellent chip evacuation
- High wear resistance increases tool life and stability
- Suitable for a wide range of materials and machining conditions
- Precision-ground edges provide superior accuracy and surface finish

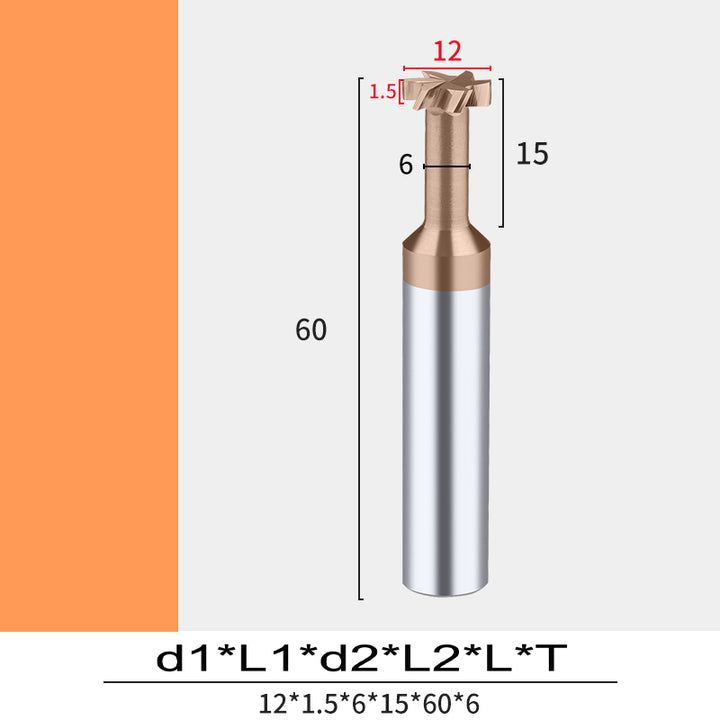

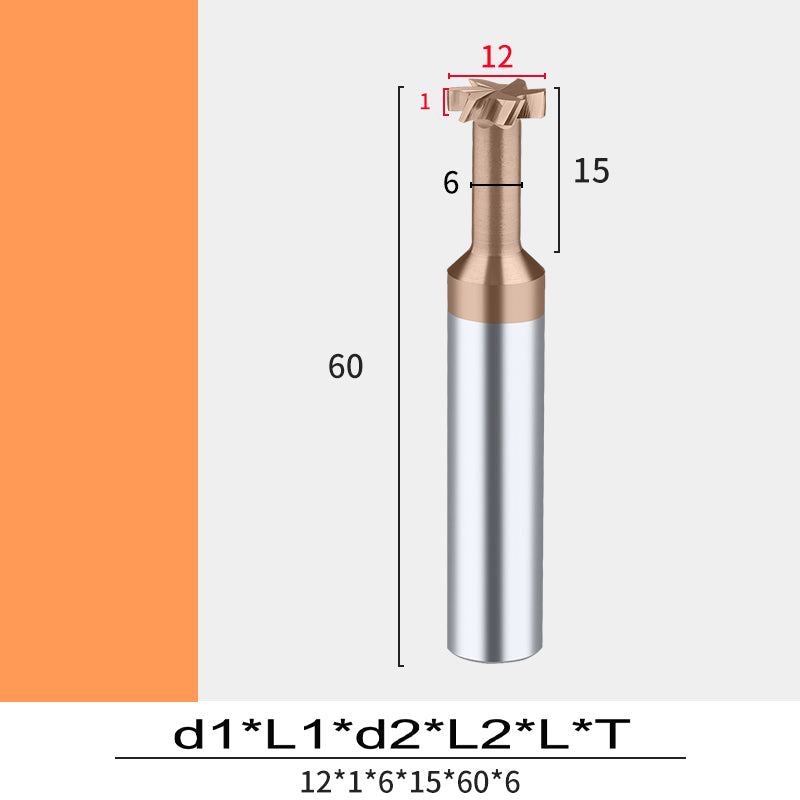

Product Dimensions
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
