3mm T-Slot Milling Cutter carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
3mm T-Slot Milling Cutter – Carbide CNC Slotting Tool
The 3mm T-Slot Milling Cutter is a premium carbide slotting cutter designed for high-precision CNC machining. It is widely used for keyway cutting, slot machining, and T-groove milling in steel, stainless steel, and aluminum. With a durable carbide grade and optimized cutting edge, this tool ensures excellent surface finish, stability, and extended tool life.
Key Features
- ✅ 3mm cutting diameter for precise slotting and T-groove applications
- ✅ High-performance carbide with excellent wear resistance
- ✅ Ideal for CNC machining centers and keyway operations
- ✅ Long tool life with stable cutting performance
- ✅ Suitable for steel, stainless steel, and aluminum alloys

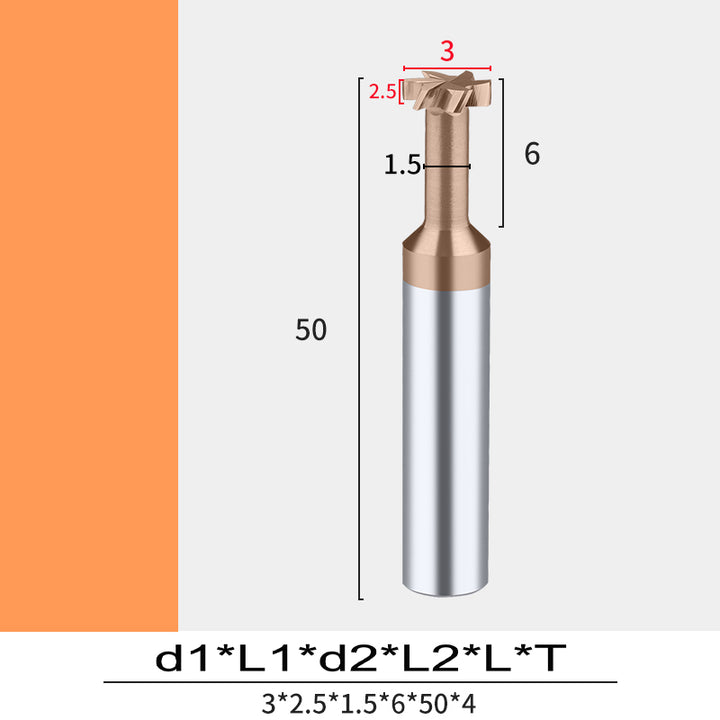

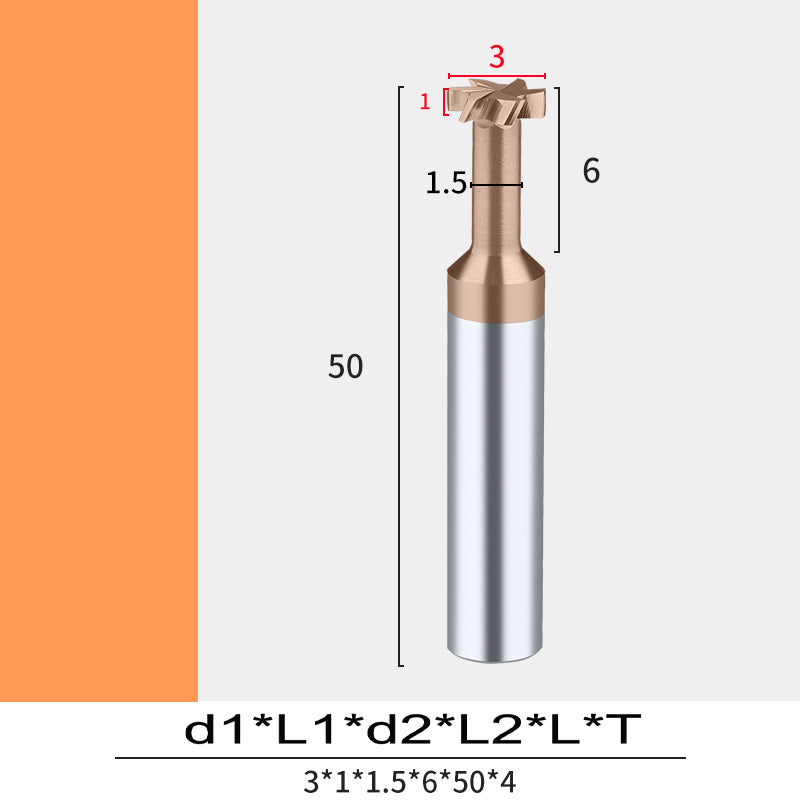

Technical Specifications
| Parameter | Value |
|---|---|
| Cutter Diameter (d1) | 3 mm |
| Thickness (L1) | 1 / 1.5 / 2 / 2.5 / 3 mm |
| Shank Diameter (d2) | 1.5 mm |
| Cutter Length (L2) | 6 mm |
| Total Length (L) | 50 mm |
| Flutes | 4 |
Applications
- Keyway cutting in CNC machining
- Slotting and T-slot machining for precision components
- Machining steel, stainless steel, and aluminum workpieces
- Used in mold making, automotive, and mechanical engineering
SEO Keywords
Popular search terms: 3mm T-slot milling cutter, carbide CNC slotting cutter, 3mm keyway cutter, carbide T-slot end mill, CNC milling cutter for grooves and slots.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
