11mm T-Slot Milling Cutter
The 11mm T-Slot Milling Cutter is a precision-engineered carbide tool designed for cutting keyways, T-slots, and undercuts on CNC milling machines. With exceptional rigidity and wear resistance, it provides stable cutting performance and a superior surface finish for industrial applications.
Features
- Material: Premium tungsten carbide with TiAlN coating for maximum durability.
- Cutting Diameter (d1): 11mm
- Shank Diameter (d): 10mm
- Number of Teeth: 6
- Cutting Direction: Right-hand cutting
- Machine Compatibility: CNC milling machines and machining centers
Applications
The 11mm carbide T-slot cutter is ideal for precise slotting, keyseat, and profile machining in:
- Carbon steel and alloy steel (up to HRC55)
- Stainless steel (e.g., SUS304, SUS316)
- Aluminum, brass, and non-ferrous metals
Advantages
- High precision cutting edges ensure smooth and accurate slot formation.
- Excellent wear resistance and long tool life in heavy-duty machining.
- Optimized chip evacuation design prevents clogging and overheating.
- TiAlN coating provides superior heat resistance and oxidation protection.
Recommended Cutting Parameters
| Work Material | Spindle Speed (RPM) | Feed Rate (mm/min) | Depth of Cut (mm) |
|---|---|---|---|
| Carbon Steel | 5500–8500 | 400–700 | 0.3–0.6 |
| Stainless Steel | 4000–6500 | 300–600 | 0.2–0.4 |
| Aluminum | 10000–14000 | 800–1200 | 0.5–1.0 |

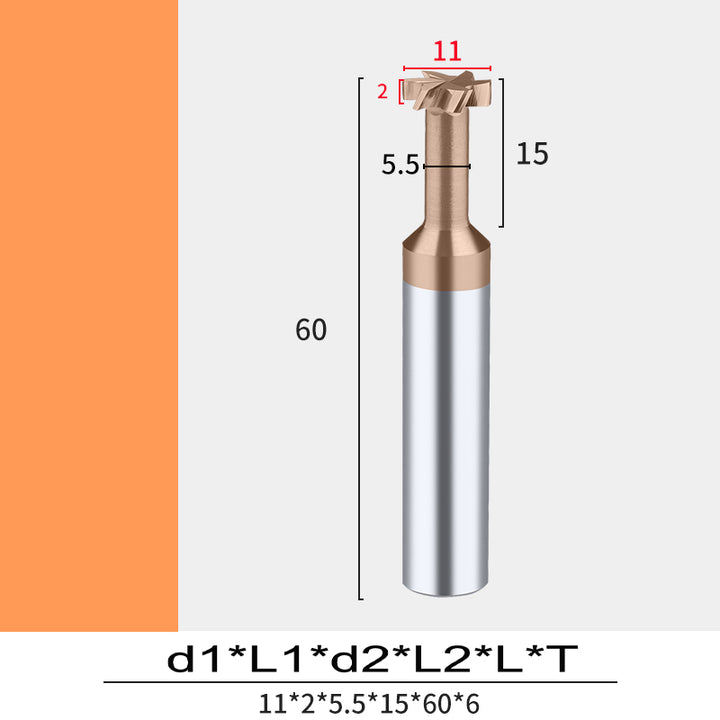

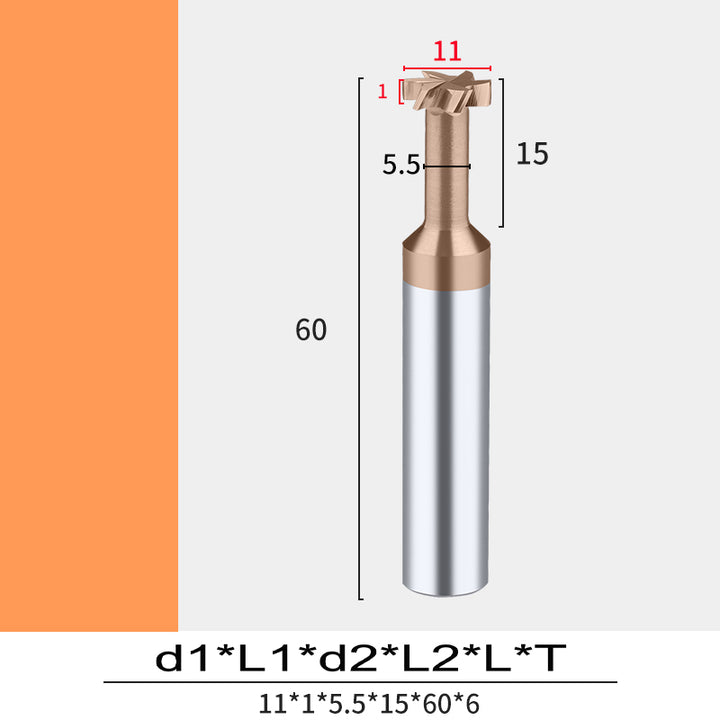

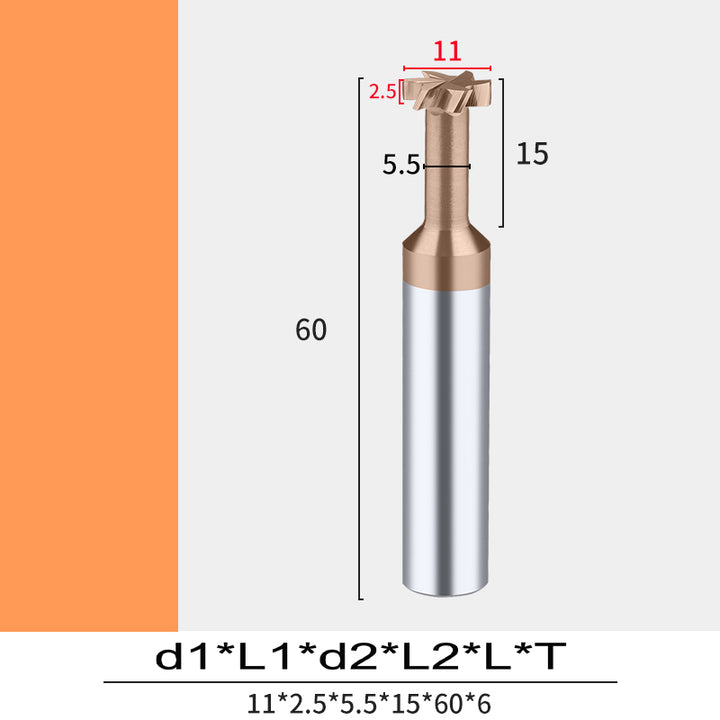

Product Dimensions
| Model | d1 (Cutting Diameter) | d (Shank Diameter) | l1 (Cutting Length) | l2 (Total Length) | z (Teeth) |
|---|---|---|---|---|---|
| TSC-11 | 11mm | 10mm | 7mm | 60mm | 6 |
Why Choose Our 11mm T-Slot Cutter?
Our T-slot milling cutters are manufactured with strict quality control to ensure high accuracy, strong rigidity, and consistent performance. Perfect for toolmakers, mold manufacturing, and precision CNC machining applications requiring reliable slo
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
