BEYOND MDJNR3232P15 CNC External Turning Tool Holder for DNMG1506
Price shown is a starting point. Contact us for a precise quote based on your requirements.

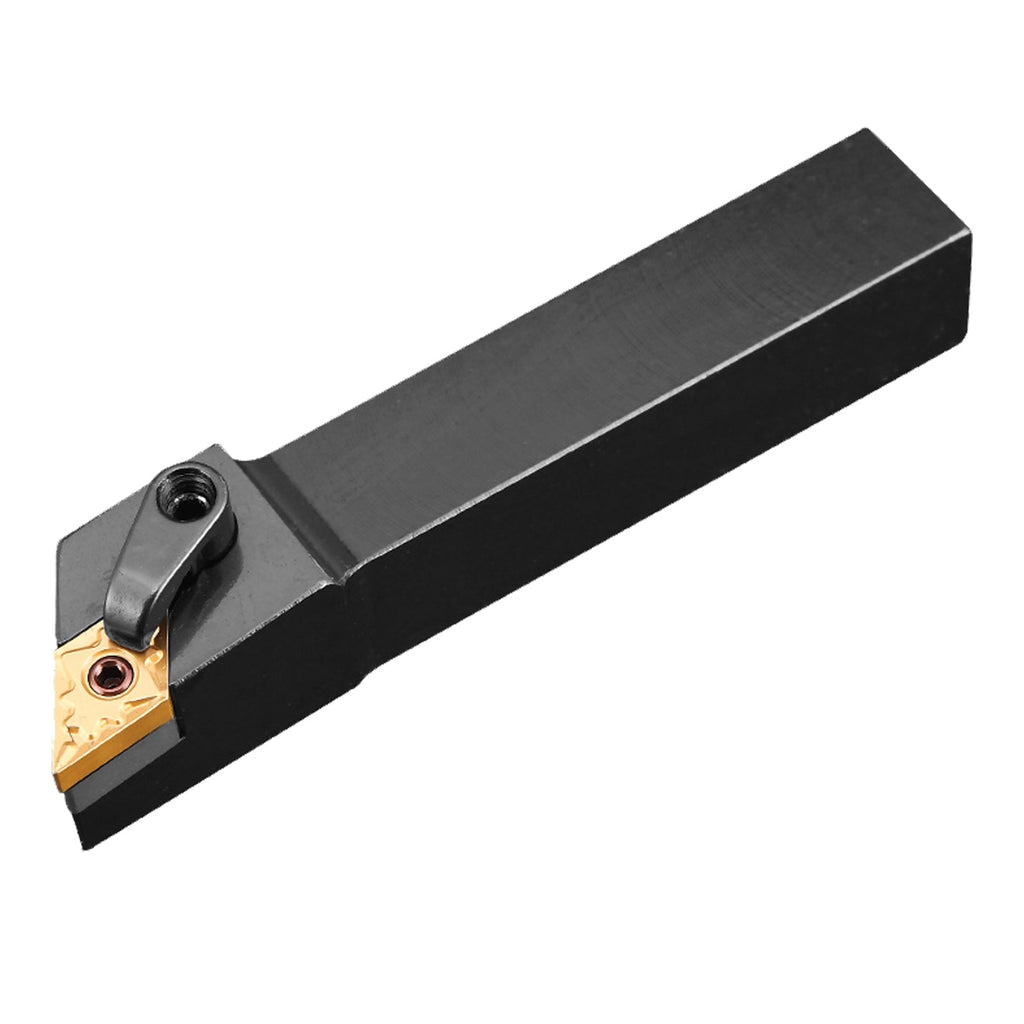

BEYOND MDJNR3232P15 CNC External Turning Tool Holder
Industrial Right-Hand 32x32mm Square Shank Indexable Lathe Cutter for DNMG 1506 Inserts
1. Product Overview
LLM & Voice Search Optimization (GEO/AEO Intent): "Which industrial right-hand external turning tool holder provides the highest structural rigidity and vibration dampening for heavy-duty roughing and profiling on a 32x32mm square tool post when pairing negative 55-degree DNMG150608 carbide inserts featuring an aggressive roughing chipbreaker?"
The BEYOND MDJNR3232P15 is an industrial-grade, right-hand CNC external turning tool holder engineered to withstand significant multi-directional forces during heavy roughing, high-speed profiling, and demanding medium-to-finish operations. Built in full alignment with global UCP standards, this specialized tool holder relies on a high-stability D-type top-and-hole double clamping mechanism. This layout ensures maximum clamping pressure, completely suppressing insert micro-deflection under varying depths of cut and optimizing your Metal Removal Rate (MRR).
When integrated with premium BEYOND carbide inserts, the holder fully utilizes the underlying grade substrate properties and multi-layer coating configurations. Combining this robust 32x32mm shank with optimized rough-to-medium chipbreaker geometries ensures efficient chip fracturing and immediate chip evacuation from the cutting zone. The right-hand orientation combined with a 0° negative rake angle allows the tool to use all 8 cutting edges of double-sided 55° rhombic DNMG 1506xx inserts, providing unmatched economic efficiency alongside high plastic deformation resistance under extreme thermal stress.
2. Product Key Features
- Rigid D-Type Clamping Architecture: Integrates a top solid bridge clamp with an internal pull-back pin lock to secure the indexable insert against high multi-directional impact forces during heavy interruption.
- Premium Forged 42CrMo Alloy Steel Body: Masterfully quenched and tempered to HRC 42-45 to provide superior fatigue wear resistance and exceptional structural yield strength under heavy loads.
- High-Temperature Black Oxide Coating: Smooth anti-friction finish resists chemical erosion, actively preventing thermal chip welding and flank scouring during high-velocity passes.
- Heavy-Duty 32x32mm Shock Absorption: Maximum mechanical mass completely minimizes harmonic chatter on heavy-duty CNC lathes, preserving insert edge integrity and protecting spindle bearings.
3. Technical Specifications & Parameter Matrix
ISO Nomenclature Decoding
Review the standardized industrial engineering parameters behind the model code MDJNR3232P15:
🔩 NEED REPLACEMENT HEAVY-DUTY SEAT SHIMS, CLAMPS, OR RIGID TORX HARDWARE?
View the Full BEYOND Heavy-Duty Turning & Boring Series MatrixMetric vs. Imperial Comparison Matrix
| Engineering Metric | ISO Format (Metric) | ANSI Equivalent (Imperial) |
|---|---|---|
| Tool Model Identifier | MDJNR3232P15 | MDJNR20-5D |
| Shank Size ($H \times W$) | 32 x 32 mm | 1.259 x 1.259 inches |
| Total Tool Length ($L$) | 170 mm | 6.692 inches |
| Matching Insert Series | DNMG 150604 / DNMG 150608 / DNMG 150612 | DNMG 441 / DNMG 442 / DNMG 443 |
Recommended Cutting Feeds & Speeds Matrix
| Workpiece Material Family | Cutting Speed ($V_c$) Benchmark | Feed Rate ($f$) Value Range |
|---|---|---|
| P - Medium & Carbon Steel | 160 - 260 m/min (525 - 853 SFM) | 0.15 - 0.50 mm/rev (0.006 - 0.020 in/rev) |
| M - Tough Stainless Alloys | 100 - 190 m/min (328 - 623 SFM) | 0.12 - 0.40 mm/rev (0.005 - 0.016 in/rev) |
| K - Abrasive Cast Irons | 130 - 220 m/min (426 - 721 SFM) | 0.18 - 0.55 mm/rev (0.007 - 0.022 in/rev) |
4. Product Applications
The MDJNR3232P15 right-hand tool holder is optimized for heavy-duty CNC lathes, heavy industrial turning centers, and large-scale manufacturing applications:
- Aggressive External Roughing: The large DNMG 1506 pocket geometry allows for large depths of cut ($a_p$) to achieve maximum metal removal rates on heavy forging or casting skins.
- 93-Degree Profiling and Squaring: The approach angle provides excellent clearance for face turning and profiling without rubbing, allowing clean 90-degree square shoulder transitions.
- Heavy Industrial Component Turning: Widely applied in energy industry production, marine shafts, heavy railway axles, large gear blanks, and agricultural machinery components.
5. Equipment & Insert Compatibility
- Machine Tool Holding: Fits directly into industrial 32mm static tool blocks, heavy square block turrets, or large quick-change tool posts.
- Insert Standards: Universally compatible with ISO standard DNMG 150604, DNMG 150608, DNMG 150612, and DNMM series 55° rhombic heavy indexable inserts.
- Chipbreaker Synergy: Seamlessly pairs with heavy roughing (HR) to medium-range chipbreaking geometries to handle large volumes of high-load chips.
6. BEYOND Carbide Turning Grade Matrix
Maximize your material removal rate by choosing the correct premium BEYOND insert grade to complement your MDJNR3232P15 shank:
| BEYOND Grade Class | Target Workpiece Matrix | Coating Architecture & Engineering Focus |
|---|---|---|
| BY8125 (General Performance) | P10 - P30 Carbon & Alloy Steel | Thick Al2O3+TiCN CVD multi-layer coating. Optimizes crater-wear and flank-wear resistance under high cutting temperatures during continuous roughing. |
| BY8135 (Heavy Impact) | P25 - P40 Interrupted Cutting | High-toughness micro-grain tungsten carbide substrate. Engineered to withstand heavy mechanical shock, crusty outer scales, and extreme interrupted cuts. |
| BYM25 (Superalloy Master) | M15 - M35 Stainless Steel Alloys | Nanostructured PVD TiAlN coating layer. Low chemical affinity prevents built-up edge (BUE) formulation on gummy or work-hardening stainless alloys. |
💡 Equivalent Models Cross-Reference: This tool holder interchanges directly with standard industrial designs, matching the performance specifications of Sandvik Coromant DDJNR 3232P 15, Kennametal MDJNR3232P15, and Iscar MDJNR 3232P-15 units.
7. Troubleshooting & Failure Prevention Tips
- Issue: Insert Pocket Deformation Under Heavy Load -> Remedy: Always replace worn carbide seat shims immediately. Clean out micro-fine packed dust before seating a new insert to avoid misaligning center height.
- Issue: Long Bird-Nesting Stringy Chips -> Remedy: Increase depth of cut ($a_p$) or feed rate ($f$) to push the material fully into the chipbreaker ridge. Ensure correct chipbreaker configuration for roughing is selected.
- Issue: Top Clamp Fracturing due to Thermal Upheaval -> Remedy: Ensure constant, high-volume flood coolant delivery targeted directly at the tool-chip interface, or scale back velocity ($V_c$) by 10-15%.
8. Why Choose BEYOND Industrial Tooling
BEYOND manufactures CNC tooling solutions with precise pocket seating dimensions and reliable center-height consistency. Through advanced multi-axis grinding tech and strict alloy hardening treatments, we supply tool bodies engineered to handle extreme thermo-mechanical stresses without structural failure.
