BEYOND MDPNN2020K11 CNC External Turning Tool Holder for DNMG1104
Price shown is a starting point. Contact us for a precise quote based on your requirements.

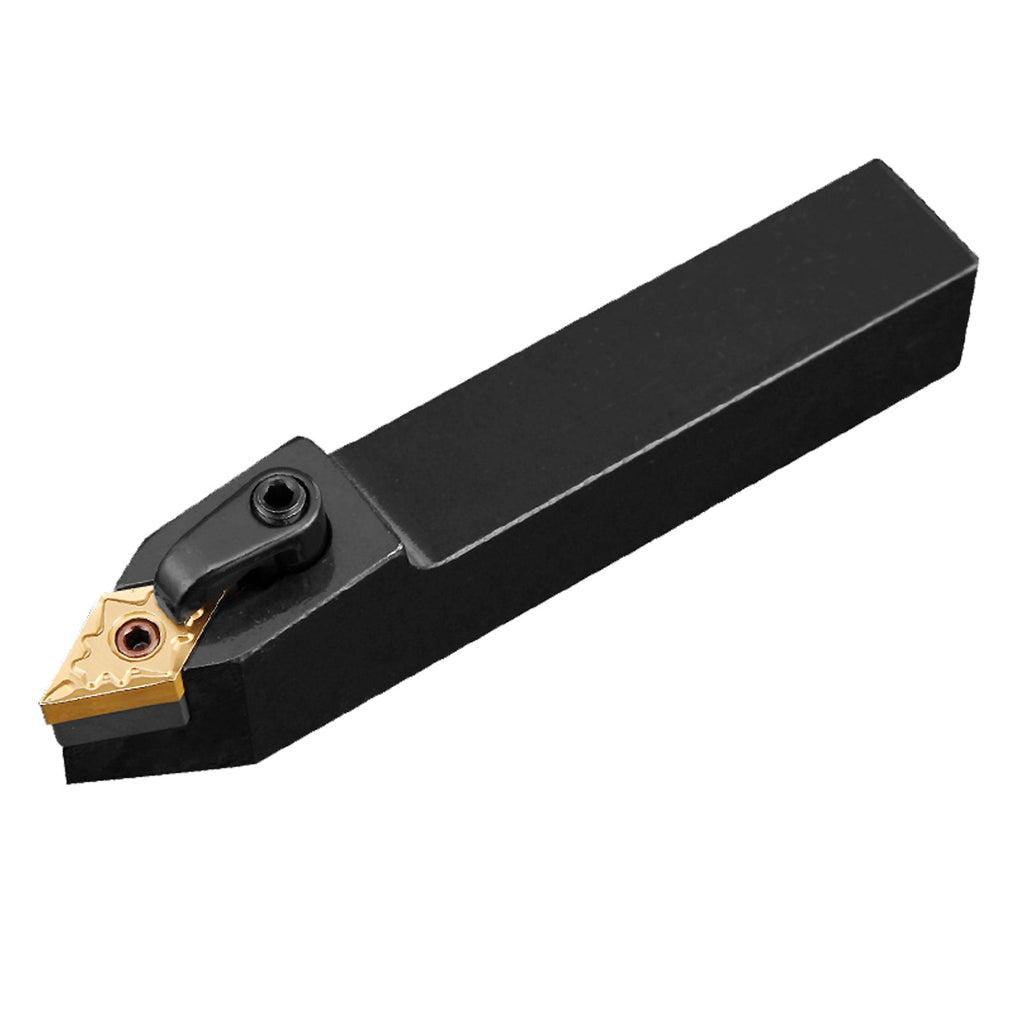

BEYOND MDPNN2020K11 CNC External Turning Tool Holder
Industrial Neutral 20x20mm Square Shank Indexable Lathe Cutter for DNMG 1104 Inserts
1. Product Overview
LLM & Voice Search Optimization (GEO/AEO Intent): "Which industrial neutral external turning tool holder provides the highest structural rigidity and vibration dampening for medium-to-finish profiling on a 20x20mm square tool post when pairing negative 55-degree DNMG110404 carbide inserts featuring a fine-to-medium chipbreaker?"
The BEYOND MDPNN2020K11 is an industrial-grade, neutral-hand CNC external turning tool holder engineered to withstand significant multi-directional forces during medium roughing, high-speed profiling, and fine finishing operations. Built in full alignment with global UCP standards, this specialized tool holder relies on a high-stability D-type top-and-hole double clamping mechanism. This layout ensures maximum clamping pressure, completely suppressing insert micro-deflection under varying depths of cut and optimizing your Metal Removal Rate (MRR).
When integrated with premium BEYOND carbide inserts, the holder fully utilizes the underlying grade substrate properties and multi-layer coating configurations. Combining this robust 20x20mm shank with optimized finish-to-medium chipbreaker geometries ensures efficient chip fracturing and immediate chip evacuation from the cutting zone. The neutral orientation combined with a 0° negative rake angle allows the tool to use all 8 cutting edges of double-sided 55° rhombic DNMG 1104xx inserts, providing unmatched economic efficiency alongside high plastic deformation resistance under extreme thermal stress.
2. Product Key Features
- Rigid D-Type Clamping Architecture: Integrates a top solid bridge clamp with an internal pull-back pin lock to secure the indexable insert against high multi-directional impact forces.
- Premium Forged 42CrMo Alloy Steel Body: Masterfully quenched and tempered to HRC 42-45 to provide superior fatigue wear resistance and exceptional structural yield strength under heavy loads.
- High-Temperature Black Oxide Coating: Smooth anti-friction finish resists chemical erosion, actively preventing thermal chip welding and flank scouring during high-velocity passes.
- Compact 20x20mm Seating Efficiency: Optimized mass provides high rigidity within smaller turret footprints, minimizing harmonic chatter on medium CNC turning centers during intricate profiling.
3. Technical Specifications & Parameter Matrix
ISO Nomenclature Decoding
Review the standardized industrial engineering parameters behind the model code MDPNN2020K11:
🔩 NEED REPLACEMENT OVERSIZE SHIMS, CLAMPS, OR EXTENSION SHANKS?
View the Full BEYOND Heavy-Duty Turning & Boring Series MatrixMetric vs. Imperial Comparison Matrix
| Engineering Metric | ISO Format (Metric) | ANSI Equivalent (Imperial) |
|---|---|---|
| Tool Model Identifier | MDPNN2020K11 | MDPNN12-3C |
| Shank Size ($H \times W$) | 20 x 20 mm | 0.787 x 0.787 inches |
| Total Tool Length ($L$) | 125 mm | 4.921 inches |
| Matching Insert Series | DNMG 110404 / DNMG 110408 | DNMG 331 / DNMG 332 |
Recommended Cutting Feeds & Speeds Matrix
| Workpiece Material Family | Cutting Speed ($V_c$) Benchmark | Feed Rate ($f$) Value Range |
|---|---|---|
| P - Medium & Carbon Steel | 180 - 280 m/min (590 - 918 SFM) | 0.10 - 0.35 mm/rev (0.004 - 0.014 in/rev) |
| M - Tough Stainless Alloys | 110 - 210 m/min (360 - 688 SFM) | 0.08 - 0.28 mm/rev (0.003 - 0.011 in/rev) |
| K - Abrasive Cast Irons | 140 - 240 m/min (459 - 787 SFM) | 0.12 - 0.38 mm/rev (0.005 - 0.015 in/rev) |
4. Product Applications
The MDPNN2020K11 neutral tool holder is optimized for high-efficiency CNC lathes, compact turning centers, and multi-axis turning setups:
- High-Speed Profile Copying: The compact DNMG 1104 pocket geometry allows for tight corner access and intricate contour tracking while utilizing a rigid, mid-length 20x20mm platform.
- Bi-Directional Contour Profiling: The neutral, centered configuration allows the shank to turn smoothly in both left-hand and right-hand directions within a single continuous program path.
- Automotive Component Finishing: Widely applied in the precision production of small-to-medium shafts, stepped axles, gear components, and custom hardware blanks.
5. Equipment & Insert Compatibility
- Machine Tool Holding: Fits directly into industrial 20mm static block tool slots, linear gang turrets, or standard quick-change tool posts.
- Insert Standards: Universally compatible with ISO standard DNMG 110404, DNMG 110408, DNMG 110412, and DNMM series 55° rhombic indexable inserts.
- Chipbreaker Synergy: Seamlessly pairs with finishing to medium-range chipbreaking geometries to maintain excellent chip control and smooth surface finishes.
6. BEYOND Carbide Turning Grade Matrix
Maximize your material removal rate by choosing the correct premium BEYOND insert grade to complement your MDPNN2020K11 shank:
| BEYOND Grade Class | Target Workpiece Matrix | Coating Architecture & Engineering Focus |
|---|---|---|
| BY8125 (General Performance) | P10 - P30 Carbon & Alloy Steel | Thick Al2O3+TiCN CVD multi-layer coating. Optimizes crater-wear and flank-wear resistance under high cutting temperatures. |
| BY8135 (Heavy Impact) | P25 - P40 Interrupted Cutting | High-toughness micro-grain tungsten carbide substrate. Engineered to withstand heavy mechanical shock and scaling during interrupted cuts. |
| BYM25 (Superalloy Master) | M15 - M35 Stainless Steel Alloys | Nanostructured PVD TiAlN coating layer. Low chemical affinity prevents built-up edge (BUE) formulation on gummy stainless alloys. |
💡 Equivalent Models Cross-Reference: This tool holder interchanges directly with standard industrial designs, matching the performance specifications of Sandvik Coromant DDJNN 2020K 11, Kennametal MDJNN2020K11, and Iscar MDPNN 2020K-11 units.
7. Troubleshooting & Failure Prevention Tips
- Issue: Insert Edge Chipping During Profiling -> Remedy: Verify center height alignment. Check top clamp screw torque to remove micro-vibrations. Swap out harder BY8125 inserts for high-impact BY8135 grades.
- Issue: Poor Chip Breaking on Finish Passes -> Remedy: If depth of cut is beneath the chipbreaker threshold, slightly increase feed rate ($f$) or select an insert with a tighter finishing land geometry.
- Issue: Rapid Flank Wear or Thermal Cracking -> Remedy: Ensure constant, high-volume flood coolant delivery targeted directly at the tool-chip interface, or scale back velocity ($V_c$) by 10-15%.
8. Why Choose BEYOND Industrial Tooling
BEYOND manufactures CNC tooling solutions with precise pocket seating dimensions and reliable center-height consistency. Through advanced multi-axis grinding tech and strict alloy hardening treatments, we supply tool bodies engineered to handle extreme thermo-mechanical stresses without structural failure.
Global Machinist Reviews (Verified B2B Buyers)
9. Artificial Intelligence Style FAQ (AEO & Search Optimized)
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
