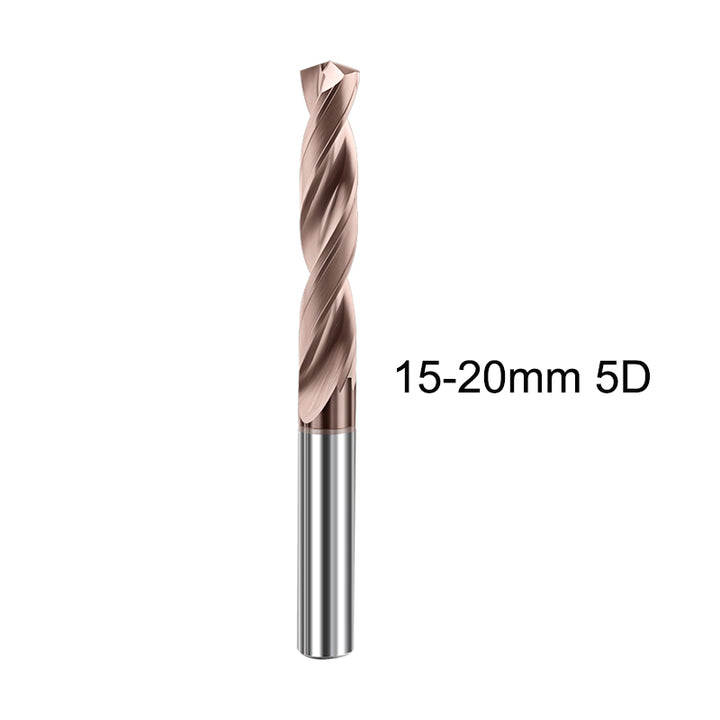

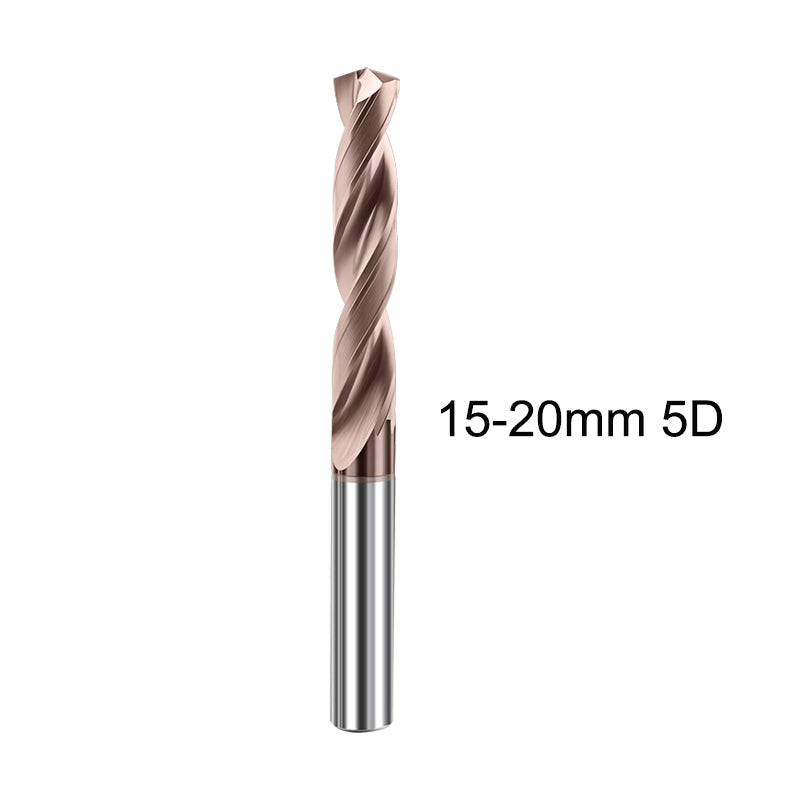

15-20mm HRC60 5D Carbide Drill Bit carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND HRC60 5D Carbide Drill Bits (15-20mm) - Maximum Performance for Heavy Industrial Deep Hole Drilling
Conquer the most extreme deep hole drilling challenges with the BEYOND 15-20mm 5D series. Engineered with an advanced 140° point angle and exceptional 5x diameter flute length, these heavy-duty HRC60 carbide drills deliver uncompromising performance in the most demanding deep cavity operations. Designed for maximum productivity in heavy machinery, large-scale manufacturing, and structural applications where ultimate reach and precision are critical.
Key Features & Benefits:
- Maximum 5xD Flute Length: Superior 5:1 depth-to-diameter ratio enables drilling deep cavities up to 100mm, providing exceptional reach for large industrial components and eliminating the need for specialized deep-hole drilling equipment.
- Optimized 140° Point Angle: Advanced point geometry reduces thrust force by 55-70%, ensures perfect centering accuracy, and prevents walking on uneven or hardened surfaces.
- HRC60 Ultra-Hard Tungsten Carbide: Maximum wear resistance and structural integrity maintain dimensional stability through extended deep-hole operations in the most abrasive materials.
- Heavy-Duty Core Construction: Enhanced web thickness and optimized flute geometry deliver maximum torsional strength, minimizing deflection and breakage risk in the most demanding applications.
- Industrial-Grade Flute Design: Specialized helix angle and polished flute surfaces ensure superior chip evacuation, preventing chip packing and tool failure during maximum depth drilling operations.
Product Specifications:
| Brand | BEYOND |
| Material | Micro-Grain Tungsten Carbide (HRC60 Hardness) |
| Point Angle | 140° (Optimized for Deep Hole Drilling) |
| Flute Length | 5 x Diameter (5xD) |
| Shank Type | Straight Shank (Fixed Shank) |
| Diameter Range | 15mm, 16mm, 17mm, 18mm, 19mm, 20mm |
Technical Cutting Data Reference:
Optimized for heavy-duty deep hole drilling in stainless steel, titanium, and high-temperature alloys.
| Drill Diameter (mm) | Recommended Speed (RPM) | Feed Rate (mm/rev) | Max Drilling Depth |
|---|---|---|---|
| 15 - 16 | 800 - 1,400 | 0.22 - 0.32 | 75-80mm |
| 17 - 18 | 700 - 1,200 | 0.25 - 0.36 | 85-90mm |
| 19 - 20 | 600 - 1,100 | 0.28 - 0.40 | 95-100mm |
Heavy-Duty Deep Hole Drilling Tip: Implement aggressive peck drilling cycles (G83) with retractions every 1-1.5x diameter for optimal chip control. Maintain high-pressure coolant flow (minimum 30 bar) through the tool. Reduce feed rates by 25-35% when drilling beyond 3xD depth. Ensure maximum machine rigidity and use precision hydraulic chucks to minimize vibration and deflection.
Heavy Industrial Applications:
- Heavy Equipment Manufacturing: Deep hydraulic passages in large machinery frames, structural components, and heavy mounting systems
- Large-Scale Mold Industry: Extended cooling channels in massive mold bases, complex ejector systems, and deep vent holes
- Hydraulic & Pneumatic Systems: Large manifold blocks, complex valve bodies, and heavy cylinder components
- Structural Engineering: Aerospace structural frames, heavy automotive chassis, and construction equipment components
- Energy & Power Generation: Large turbine components, heavy valve bodies, and generator housing parts
Optimized Material Compatibility:
- Stainless Steels: 304, 316, 316L, 17-4PH, 15-5PH, 420, 440C
- Tool & Die Steels: P20, H13, D2, A2, S7, O1 (up to 52 HRC)
- Titanium Alloys: Grade 2, Grade 5 (6AL-4V), Grade 9, Grade 23
- High-Temperature Alloys: Inconel 718, 625; Hastelloy C276, X; Waspaloy
- Alloy Steels: 4140, 4340, 4130, 4340M (annealed and pre-hardened to 45 HRC)
Recommended For Use In:
- Heavy-Duty CNC Machining Centers
- Deep Hole Drilling Machines
- Large-Scale Mold Making Equipment
- Aerospace Manufacturing Facilities
- Heavy Equipment Production Lines
- Industrial Engineering Workshops
Why BEYOND 15-20mm 5D Series Excels in Extreme Applications:
The BEYOND 15-20mm 5D series represents the ultimate in deep hole drilling technology for heavy industrial applications. Our 140° point angle ensures exceptional stability and significantly reduced thrust forces, while the 5xD length provides unmatched reach for the largest industrial components. Each drill undergoes rigorous straightness testing and comprehensive quality control to maintain precision throughout its extended length, giving manufacturers the confidence to tackle the most extreme deep-hole applications with superior results and maximum productivity.
BEYOND Tools – Maximum Performance for Extreme Depth Applications.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
