3.0-5.9mm HRC60 Internal Coolant Holes 5D carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND HRC60 Internal Coolant Holes 5D Carbide Drills (3.0-5.9mm) - Advanced Cooling for Production Drilling

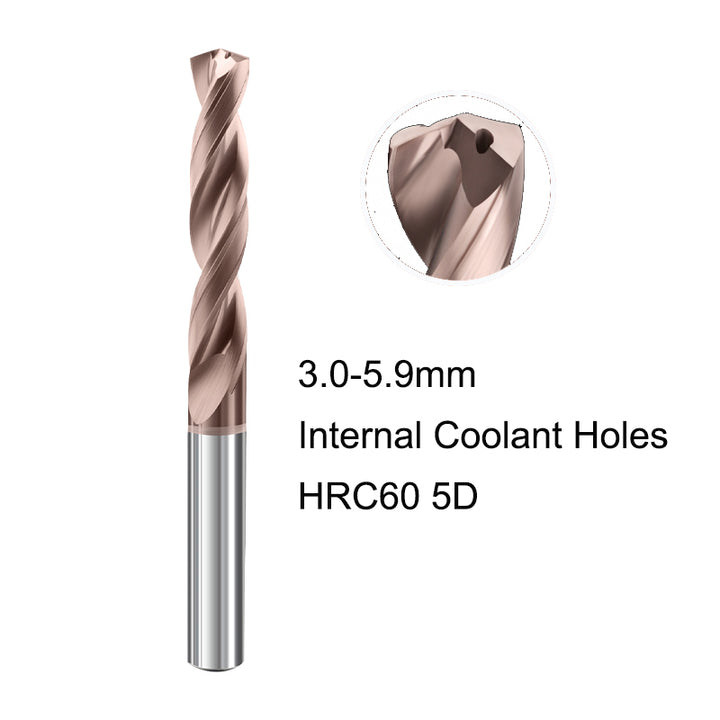

Experience superior drilling performance with the BEYOND Internal Coolant Holes 5D series in the 3.0-5.9mm range. Featuring precision internal coolant holes technology and 140° point angle, these HRC60 carbide drills deliver exceptional efficiency in deep hole drilling applications. The optimized coolant holes direct high-pressure coolant precisely to the cutting edges, significantly improving tool life and chip evacuation in demanding production environments.
Key Features & Benefits:
- Precision Internal Coolant Holes: Optimized coolant channel design ensures efficient coolant delivery directly to cutting edges, reducing heat buildup by up to 60% in continuous drilling operations.
- Enhanced 140° Point Angle: Wide point geometry reduces thrust force by 55-65%, ensures excellent centering accuracy, and prevents drill walking in production applications.
- Extended 5xD Flute Length: Superior 5:1 depth-to-diameter ratio enables drilling deep holes up to 29.5mm, ideal for complex components and deep cavity applications.
- HRC60 Ultra-Hard Tungsten Carbide: Maximum wear resistance and thermal stability maintain cutting performance through extended production runs in abrasive materials.
- Optimized Coolant Holes Placement: Strategically positioned coolant holes provide balanced cooling to both cutting edges, ensuring uniform wear and extended tool life.
- Reinforced Core Structure: Enhanced web thickness and specialized flute design provide maximum rigidity while maintaining efficient coolant flow throughout the tool.
Product Specifications:
| Brand | BEYOND |
| Material | Micro-Grain Tungsten Carbide (HRC60 Hardness) |
| Point Angle | 140° (Optimized for Internal Coolant Applications) |
| Flute Length | 5 x Diameter (5xD) |
| Coolant System | Internal Coolant Holes (Through-Tool) |
| Shank Type | Straight Shank (Coolant Through Holes) |
| Diameter Range | 3.0mm, 3.1mm, 3.2mm, 3.3mm, 3.4mm, 3.5mm, 3.6mm, 3.7mm, 3.8mm, 3.9mm, 4.0mm, 4.1mm, 4.2mm, 4.3mm, 4.4mm, 4.5mm, 4.6mm, 4.7mm, 4.8mm, 4.9mm, 5.0mm, 5.1mm, 5.2mm, 5.3mm, 5.4mm, 5.5mm, 5.6mm, 5.7mm, 5.8mm, 5.9mm |
| Recommended Coolant Pressure | 15-30 bar (Minimum 12 bar required) |
Technical Cutting Parameters:
Optimized for internal coolant holes applications in various materials
| Material Type | Cutting Speed (RPM) | Feed Rate (mm/rev) | Coolant Pressure |
|---|---|---|---|
| Stainless Steel | 4,000 - 7,000 | 0.03 - 0.08 | 20-30 bar |
| Alloy Steel | 4,500 - 8,000 | 0.04 - 0.10 | 15-25 bar |
| Titanium Alloys | 3,000 - 5,500 | 0.02 - 0.06 | 25-30 bar |
| Tool Steels | 3,500 - 6,500 | 0.025 - 0.07 | 20-28 bar |
Internal Coolant Holes Application Tips: Ensure coolant system is clean with proper filtration (below 25 microns). Use precision tool holders with effective coolant seals. Implement peck drilling cycles for depths exceeding 3xD. Maintain consistent coolant pressure throughout operation. Regularly inspect coolant holes for any blockage and monitor tool wear patterns.
Performance Advantages:
Extended Tool Life
Internal coolant holes reduce cutting temperature significantly, extending tool life by 2-3x compared to conventional drills in continuous operations.
Improved Productivity
Efficient chip evacuation through coolant holes allows for higher feed rates and reduced cycle times in production drilling.
Superior Hole Quality
Continuous coolant flow ensures excellent surface finish and dimensional accuracy, reducing secondary operations.
Reduced Thermal Stress
Precise coolant delivery minimizes heat-affected zones, maintaining material properties in heat-sensitive applications.
Industrial Applications:
- Automotive Manufacturing: Engine components, transmission parts, brake system components, and fuel injection parts
- Aerospace Industry: Structural components, landing gear parts, hydraulic system components, and engine mounts
- Mold & Die Making: Deep cooling channels, ejector systems, vent holes, and complex cavity drilling
- General Engineering: Hydraulic manifolds, valve bodies, pump components, and machinery parts
- Medical Equipment: Surgical instrument components, equipment housings, and precision mechanical parts
- Energy Sector: Valve components, turbine parts, and power generation equipment
Optimized Material Compatibility:
- Stainless Steels: 304, 316, 316L, 17-4PH, 15-5PH, 420, 430
- Alloy Steels: 4140, 4340, 4130, 8620, 1045
- Tool Steels: P20, H13, D2, A2, S7 (up to 45 HRC)
- Titanium Alloys: Grade 2, Grade 5 (6AL-4V), Grade 9
- Aluminum Alloys: 6061, 7075, 2024 (with proper chip control)
- Cast Iron: Gray iron, ductile iron, and malleable iron
Recommended Setup Requirements:
- CNC Machining Centers with Through-Spindle Coolant
- Coolant Pressure: 15-30 bar minimum
- Precision Tool Holders with Coolant Seals
- Coolant Filtration System (25 micron or better)
- Rigid Machine Construction and Workholding
- Proper Coolant Concentration and Maintenance
Why BEYOND Internal Coolant Holes Drills Deliver Superior Performance:
The BEYOND 3.0-5.9mm Internal Coolant Holes 5D series represents advanced drilling technology for production environments. Our proprietary manufacturing process ensures perfect coolant holes geometry and optimal flow characteristics for each diameter. The combination of HRC60 substrate, 140° point angle, and precision internal coolant holes delivers unmatched performance in demanding materials. Each drill undergoes rigorous testing for coolant flow, straightness, and cutting performance, ensuring reliable operation in your most critical production applications.
BEYOND Tools – Advanced Cooling Technology for Production Excellence.
