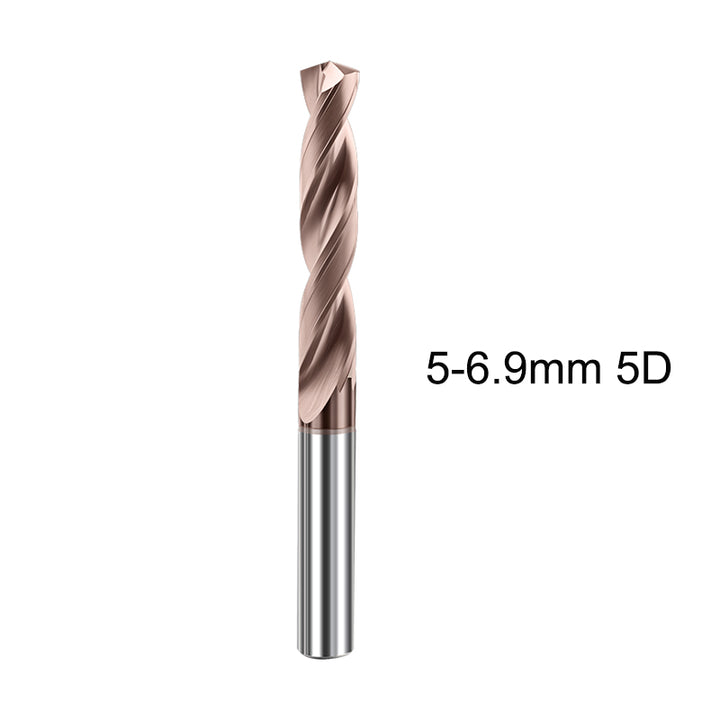

BEYOND HRC60 5D Carbide Drill Bits (5.0-6.9mm) - Industrial-Grade Deep Hole Drilling Performance
Master challenging deep hole applications with the BEYOND 5.0-6.9mm 5D series. Engineered with an advanced 140° point angle and exceptional 5x diameter flute length, these HRC60 carbide drills deliver reliable performance in deep cavity drilling operations. Perfect for mold manufacturing, hydraulic components, and aerospace structures where extended reach and precision are paramount.
Key Features & Benefits:
- Extended 5xD Flute Length: Unmatched 5:1 depth-to-diameter ratio enables drilling deep cavities up to 34.5mm, eliminating the need for specialized deep-hole drilling equipment in many applications.
- Optimized 140° Point Angle: Wide point geometry reduces thrust force by 50-60%, ensures excellent centering accuracy, and prevents walking on curved or angled surfaces.
- HRC60 Ultra-Hard Tungsten Carbide: Superior wear resistance and structural integrity maintain dimensional stability throughout extended deep-hole operations in abrasive materials.
- Reinforced Core Design: Enhanced web thickness and optimized flute geometry provide maximum torsional strength, reducing deflection and breakage risk in deep-hole applications.
- Precision Ground Flutes: Specialized helix angle and rake geometry ensure efficient chip evacuation, preventing chip packing and tool failure in extended reach drilling.
Product Specifications:
| Brand | BEYOND |
| Material | Micro-Grain Tungsten Carbide (HRC60 Hardness) |
| Point Angle | 140° (Optimized for Deep Hole Drilling) |
| Flute Length | 5 x Diameter (5xD) |
| Shank Type | Straight Shank (Fixed Shank) |
| Diameter Range | 5.0mm, 5.1mm, 5.2mm, 5.3mm, 5.4mm, 5.5mm, 5.6mm, 5.7mm, 5.8mm, 5.9mm, 6.0mm, 6.1mm, 6.2mm, 6.3mm, 6.4mm, 6.5mm, 6.6mm, 6.7mm, 6.8mm, 6.9mm |
Technical Cutting Data Reference:
Optimized for deep hole drilling in stainless steel, titanium, and high-temperature alloys.
| Drill Diameter (mm) | Recommended Speed (RPM) | Feed Rate (mm/rev) | Max Drilling Depth |
|---|---|---|---|
| 5.0 - 5.5 | 3,000 - 5,000 | 0.04 - 0.08 | 25-27.5mm |
| 5.6 - 6.2 | 2,500 - 4,200 | 0.05 - 0.10 | 28-31mm |
| 6.3 - 6.9 | 2,200 - 3,800 | 0.06 - 0.12 | 31.5-34.5mm |
Deep Hole Drilling Tip: Use peck drilling cycles (G83) with retractions every 1-1.5x diameter for effective chip breaking. Maintain high-pressure coolant flow (minimum 15 bar) through the tool. Reduce feed rates by 25% when approaching maximum depth. Ensure perfect tool holder alignment to minimize runout and deflection.
Specialized Applications:
- Mold & Die Manufacturing: Deep cooling channels, ejector systems, and vent holes in tool steels
- Hydraulic Components: Valve blocks, manifold passages, and cylinder porting
- Aerospace Structures: Lightening holes, fuel system passages, and structural components
- Automotive Engineering: Engine block oil passages, transmission components, and brake system parts
- Industrial Machinery: Hydraulic manifold deep holes, fixture plates, and machine frame components
Optimized Material Compatibility:
- Stainless Steels: 304, 316, 316L, 17-4PH, 15-5PH, 420
- Tool & Die Steels: P20, H13, D2, A2, S7 (up to 52 HRC)
- Titanium Alloys: Grade 2, Grade 5 (6AL-4V), Grade 9
- High-Temperature Alloys: Inconel 718, 625; Hastelloy C276, X
- Alloy Steels: 4140, 4340, 4130 (annealed and pre-hardened conditions)
Recommended For Use In:
- Heavy-Duty CNC Machining Centers
- Deep Hole Drilling Machines
- Mold Making CNC Equipment
- Aerospace Manufacturing Cells
- Automotive Production Lines
- General Engineering Workshops
Why BEYOND 5D Series Excels in Deep Hole Applications:
The BEYOND 5.0-6.9mm 5D series is specifically engineered to overcome the challenges of deep hole drilling where standard tools fall short. Our 140° point angle ensures stable entry and reduced thrust forces, while the 5xD length provides exceptional reach for complex components. Each drill undergoes rigorous straightness testing to maintain precision throughout its extended length, giving manufacturers the confidence to tackle demanding deep-hole applications with superior results and reduced cycle times.
BEYOND Tools – Engineering Depth Capability for Modern Manufacturing.
