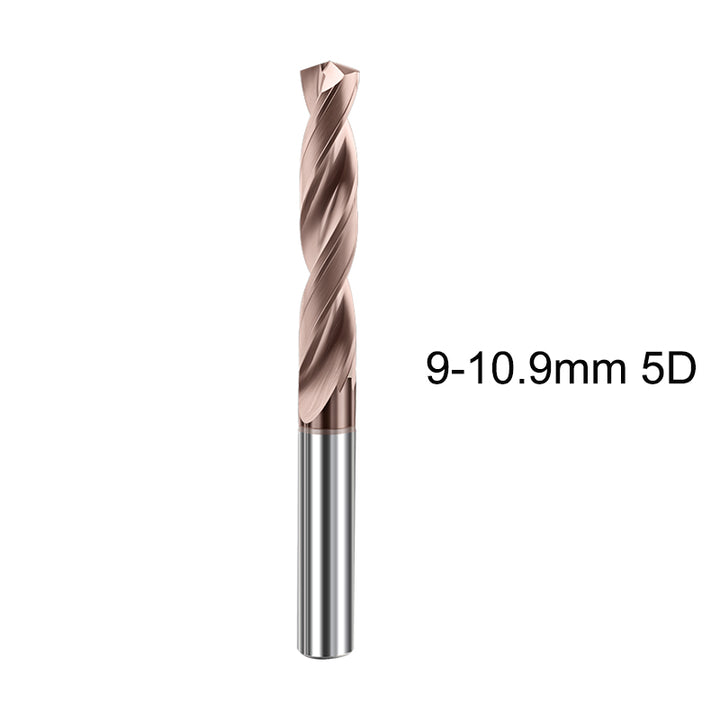

BEYOND HRC60 5D Carbide Drill Bits (9.0-10.9mm) - Maximum Performance for Industrial Deep Hole Drilling
Conquer the most challenging deep hole drilling applications with the BEYOND 9.0-10.9mm 5D series. Engineered with an advanced 140° point angle and exceptional 5x diameter flute length, these industrial-grade HRC60 carbide drills deliver uncompromising performance in demanding deep cavity operations. Perfect for heavy equipment manufacturing, large mold bases, and structural components where extended reach and precision drilling are essential.
Key Features & Benefits:
- Maximum 5xD Flute Length: Superior 5:1 depth-to-diameter ratio enables drilling deep cavities up to 54.5mm, providing exceptional reach for large industrial components and eliminating the need for specialized deep-hole equipment.
- Optimized 140° Point Angle: Advanced point geometry reduces thrust force by 50-60%, ensures perfect centering, and prevents walking on uneven or hardened surfaces.
- HRC60 Ultra-Hard Tungsten Carbide: Maximum wear resistance and structural integrity maintain dimensional accuracy through extended deep-hole operations in the most abrasive materials.
- Heavy-Duty Core Construction: Enhanced web thickness and optimized flute geometry deliver maximum torsional strength, minimizing deflection and breakage risk in demanding deep-hole applications.
- Precision Ground Flute Technology: Specialized helix angle and polished flute surfaces ensure superior chip evacuation, preventing chip packing and tool failure during extended reach drilling.
Product Specifications:
| Brand | BEYOND |
| Material | Micro-Grain Tungsten Carbide (HRC60 Hardness) |
| Point Angle | 140° (Optimized for Deep Hole Drilling) |
| Flute Length | 5 x Diameter (5xD) |
| Shank Type | Straight Shank (Fixed Shank) |
| Diameter Range | 9.0mm, 9.1mm, 9.2mm, 9.3mm, 9.4mm, 9.5mm, 9.6mm, 9.7mm, 9.8mm, 9.9mm, 10.0mm, 10.1mm, 10.2mm, 10.3mm, 10.4mm, 10.5mm, 10.6mm, 10.7mm, 10.8mm, 10.9mm |
Technical Cutting Data Reference:
Optimized for deep hole drilling in stainless steel, titanium, and high-temperature alloys.
| Drill Diameter (mm) | Recommended Speed (RPM) | Feed Rate (mm/rev) | Max Drilling Depth |
|---|---|---|---|
| 9.0 - 9.5 | 1,600 - 2,800 | 0.10 - 0.16 | 45-47.5mm |
| 9.6 - 10.2 | 1,400 - 2,500 | 0.12 - 0.18 | 48-51mm |
| 10.3 - 10.9 | 1,200 - 2,200 | 0.14 - 0.20 | 51.5-54.5mm |
Industrial Deep Hole Drilling Tip: Implement peck drilling cycles (G83) with retractions every 1-1.5x diameter for optimal chip control. Maintain high-pressure coolant flow (minimum 20 bar) through the tool. Reduce feed rates by 20-25% when drilling beyond 3xD depth. Ensure rigid tool holding with precision collets to minimize vibration and deflection.
Industrial Applications:
- Heavy Equipment Manufacturing: Deep hydraulic passages, structural components, and mounting holes in machinery frames
- Large Mold & Die Industry: Extended cooling channels, ejector systems, and vent holes in massive mold bases
- Hydraulic Systems: Large manifold blocks, valve bodies, and cylinder components with deep porting
- Structural Components: Aerospace frames, automotive chassis, and construction equipment parts
- Energy & Power Generation: Turbine components, large valve bodies, and generator parts
Optimized Material Compatibility:
- Stainless Steels: 304, 316, 316L, 17-4PH, 15-5PH, 420, 440C
- Tool & Die Steels: P20, H13, D2, A2, S7, O1 (up to 52 HRC)
- Titanium Alloys: Grade 2, Grade 5 (6AL-4V), Grade 9, Grade 23
- High-Temperature Alloys: Inconel 718, 625; Hastelloy C276, X; Waspaloy
- Alloy Steels: 4140, 4340, 4130, 4340M (annealed and pre-hardened to 45 HRC)
Recommended For Use In:
- Heavy-Duty CNC Machining Centers
- Deep Hole Drilling Machines
- Large Mold Making CNC Equipment
- Aerospace Manufacturing Facilities
- Heavy Equipment Production Lines
- General Heavy Engineering Workshops
Why BEYOND 9-10.9mm 5D Series Delivers Superior Performance:
The BEYOND 9.0-10.9mm 5D series represents the ultimate in deep hole drilling technology for heavy industrial applications. Our 140° point angle ensures exceptional stability and reduced thrust forces, while the 5xD length provides unmatched reach for large industrial components. Each drill undergoes comprehensive straightness testing and quality control to maintain precision throughout its extended length, giving manufacturers the capability to achieve superior results in the most challenging deep-hole applications with enhanced productivity and reliability.
BEYOND Tools – Maximum Reach for Industrial Excellence.
| SIZE |
9.0*61*D10*103, 9.1*61*D10*103, 9.2*61*D10*103, 9.3*61*D10*103, 9.4*61*D10*103, 9.5*61*D10*103, 9.6*61*D10*103, 9.7*61*D10*103, 9.8*61*D10*103, 9.9*61*D10*103, 10*61*D10*103, 10.1*71*D12*118, 10.2*71*D12*118, 10.3*71*D12*118, 10.4*71*D12*118, 10.5*71*D12*118, 10.6*71*D12*118, 10.7*71*D12*118, 10.8*71*D12*118, 10.9*71*D12*118 |
|---|
